Model # 8677364000 Official Kenmore gas direct vent counterflow wall furnace

Here are the diagrams and repair parts for Official Kenmore 8677364000 gas direct vent counterflow wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

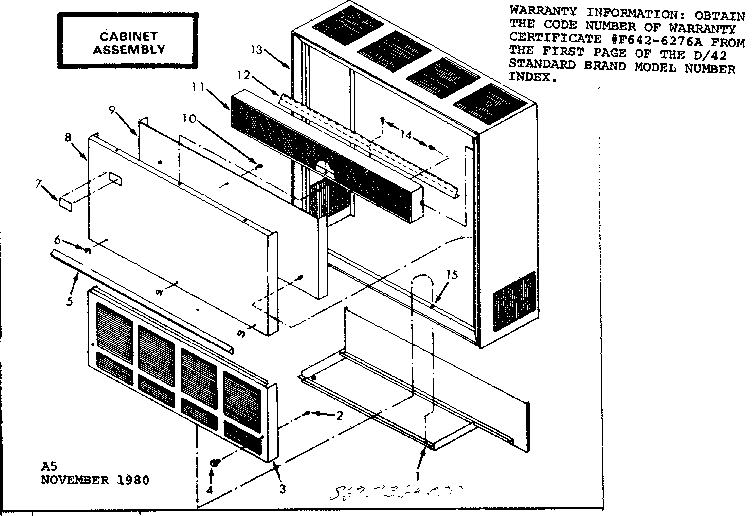

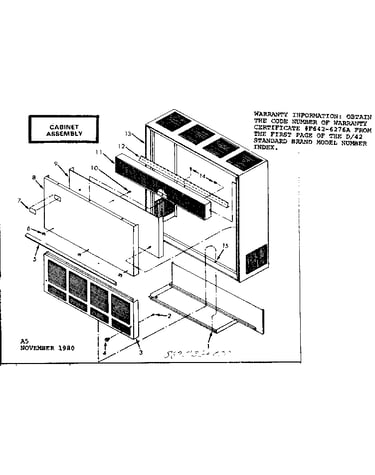

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Thermocouple 40096
#2

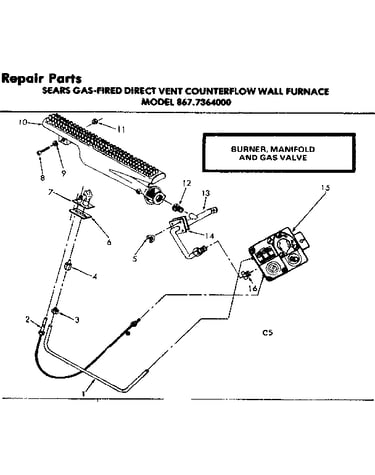

Burner manifold and gas valve diagram

Thermocouple

Part #40096

The manufacturer no longer makes this part, and there's no substitute part

Tubing Pilot STD317252
#1

Burner manifold and gas valve diagram

Tubing pilot

Part #STD317252

Replaced by #9000278

?
Manufacturer substitution
This part replaces STD317252. Substitute parts can look different from the original.
This item is not returnable
$17.69 |
10% OFF Phone Price : $19.69
In Stock
Ferrule Nut 29441
#3

Burner manifold and gas valve diagram

Ferrule nut

Part #29441

Replaced by #9000278

?
Manufacturer substitution
This part replaces 29441. Substitute parts can look different from the original.
This item is not returnable
$17.69 |
10% OFF Phone Price : $19.69
In Stock
Gas Valve 506491
#15

Burner manifold and gas valve diagram

Gas valve

Part #506491

Replaced by #36C03-333

?
Manufacturer substitution
This part replaces 506491. Substitute parts can look different from the original.
$277.97 |
$10.00 OFF Phone Price : $287.97
In Stock
Thermostat 504871

#NI

All parts diagram

Thermostat

Part #504871

The manufacturer no longer makes this part, and there's no substitute part

Nut STD541410
#19

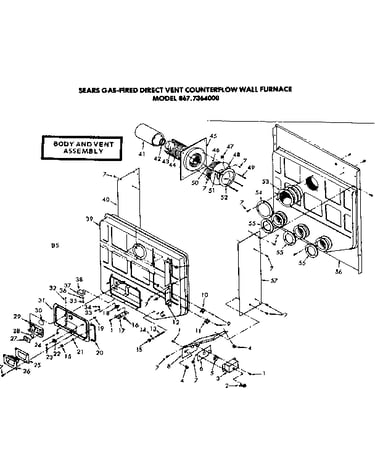

Body and vent assembly diagram

Nut

Part #STD541410

The manufacturer no longer makes this part, and there's no substitute part

Transformer 92891
#16

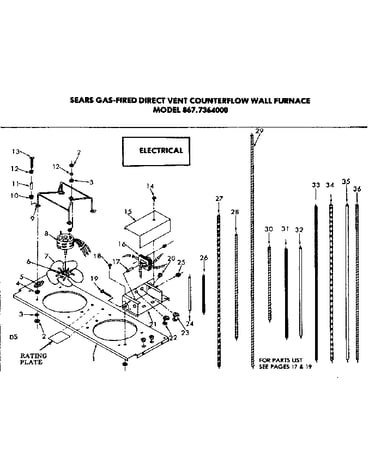

Electrical diagram

Transformer

Part #92891

The manufacturer no longer makes this part, and there's no substitute part

Screw STD511005
#35

Body and vent assembly diagram

Screw

Part #STD511005

The manufacturer no longer makes this part, and there's no substitute part

Screw STD611005
Screw

Part #STD611005

The manufacturer no longer makes this part, and there's no substitute part

Guarantee F642-6276A

#NI

All parts diagram

Guarantee

Part #F642-6276A

The manufacturer no longer makes this part, and there's no substitute part
