Ryobi
Angle Grinder

Model # SG-1000 Official Ryobi angle grinder

Here are the diagrams and repair parts for Official Ryobi SG-1000 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

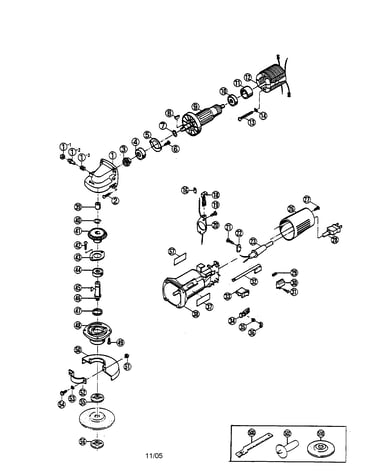

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Stopper Pin 6120085
#1-2

Grinder diagram

Stopper pin

Part #6120085

The manufacturer no longer makes this part, and there's no substitute part

Compression Spring 6180091
#1-3

Grinder diagram

Compression spring

Part #6180091

The manufacturer no longer makes this part, and there's no substitute part

4'' Sanding Pad (not Shown) 6940615
#513

Grinder diagram

4'' sanding pad (not shown)

Part #6940615

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder 6570098
#20

Grinder diagram

Brush holder

Part #6570098

The manufacturer no longer makes this part, and there's no substitute part

Insulator (2) 6570035
#16

Grinder diagram

Insulator (2)

Part #6570035

The manufacturer no longer makes this part, and there's no substitute part

Compression Spring 6180094
#29

Grinder diagram

Compression spring

Part #6180094

The manufacturer no longer makes this part, and there's no substitute part

Screw 9040412
#49

Grinder diagram

Screw

Part #9040412

The manufacturer no longer makes this part, and there's no substitute part

Ring 9511000
#7

Grinder diagram

Ring

Part #9511000

The manufacturer no longer makes this part, and there's no substitute part

4'' Sanding Disc #60 (5 Pc) (not Shown) 6610593
#514

Grinder diagram

4'' sanding disc #60 (5 pc) (not shown)

Part #6610593

The manufacturer no longer makes this part, and there's no substitute part

Phillips Pan Screw M5 X 16 9000516
#54

Grinder diagram

Phillips pan screw m5 x 16

Part #9000516

The manufacturer no longer makes this part, and there's no substitute part
