Model # SC-HMX10C Official Samsung digital camcorder

Here are the diagrams and repair parts for Official Samsung SC-HMX10C digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

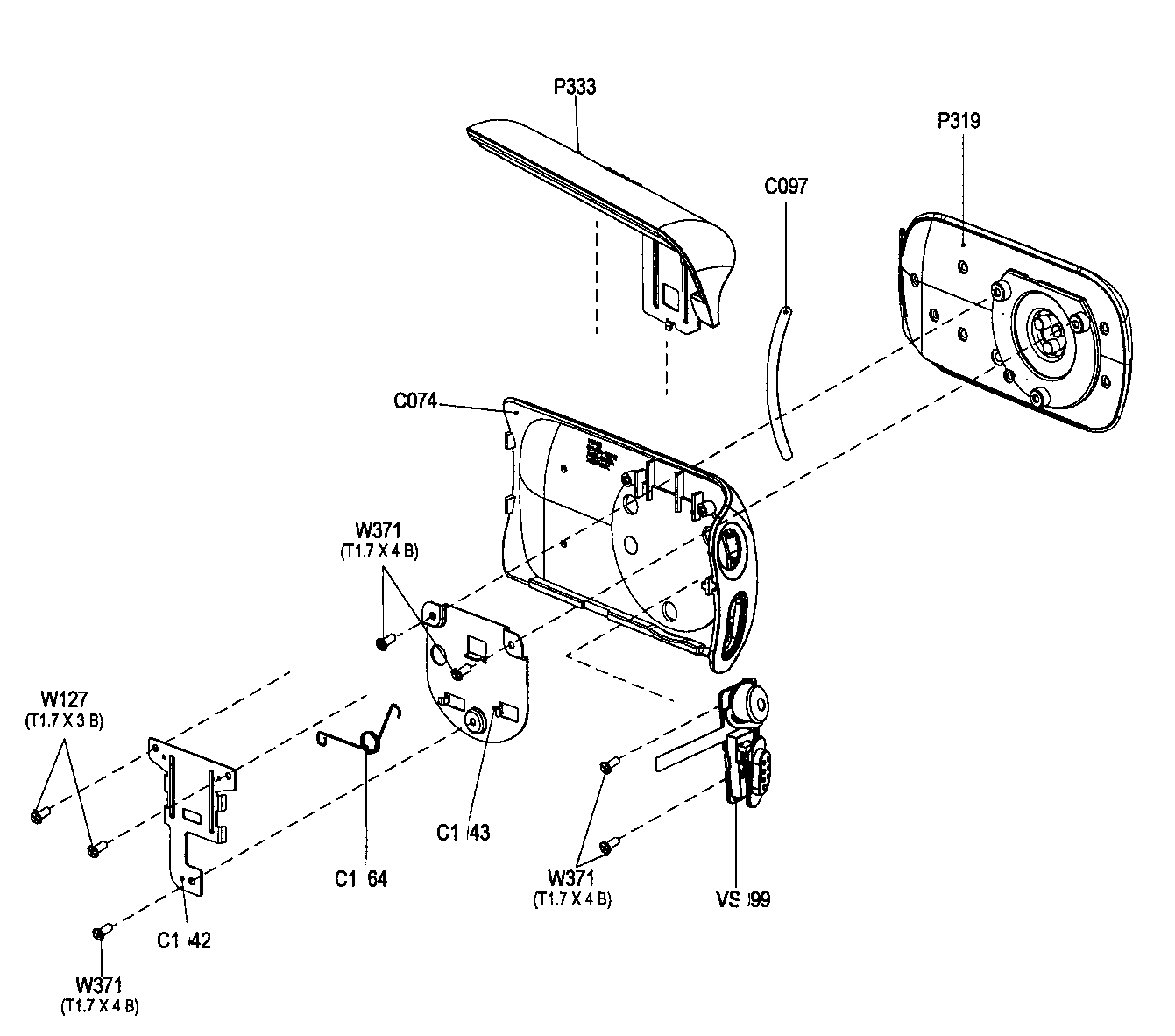

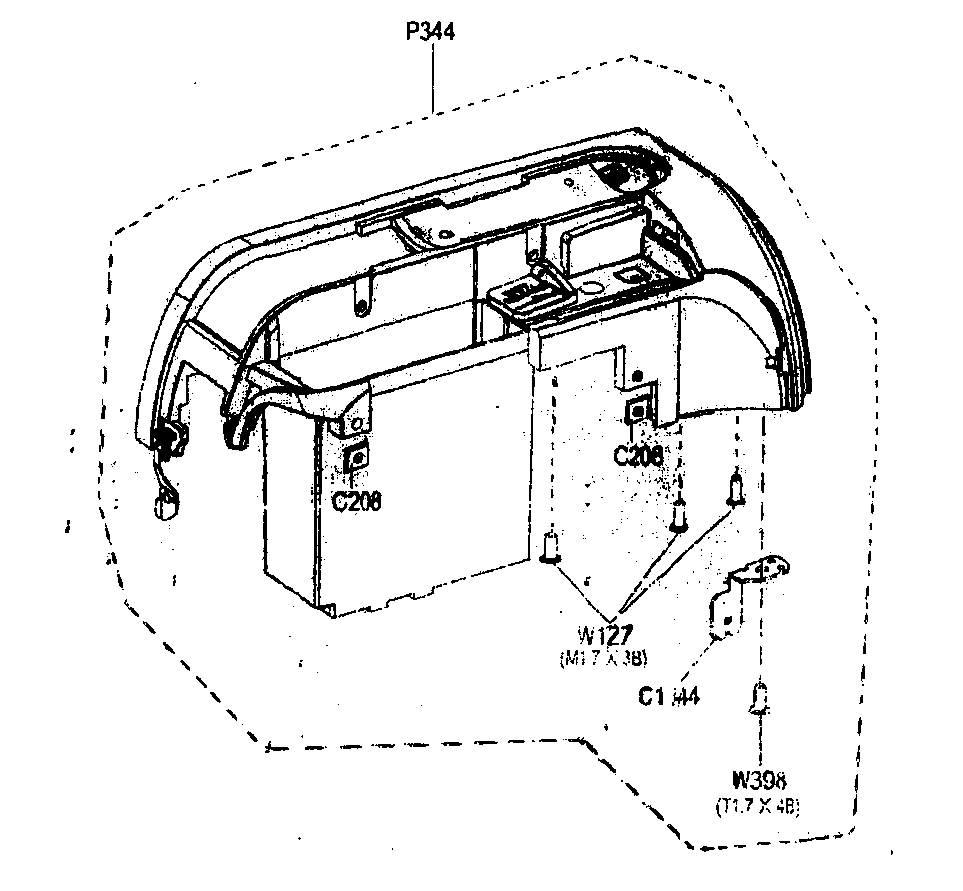

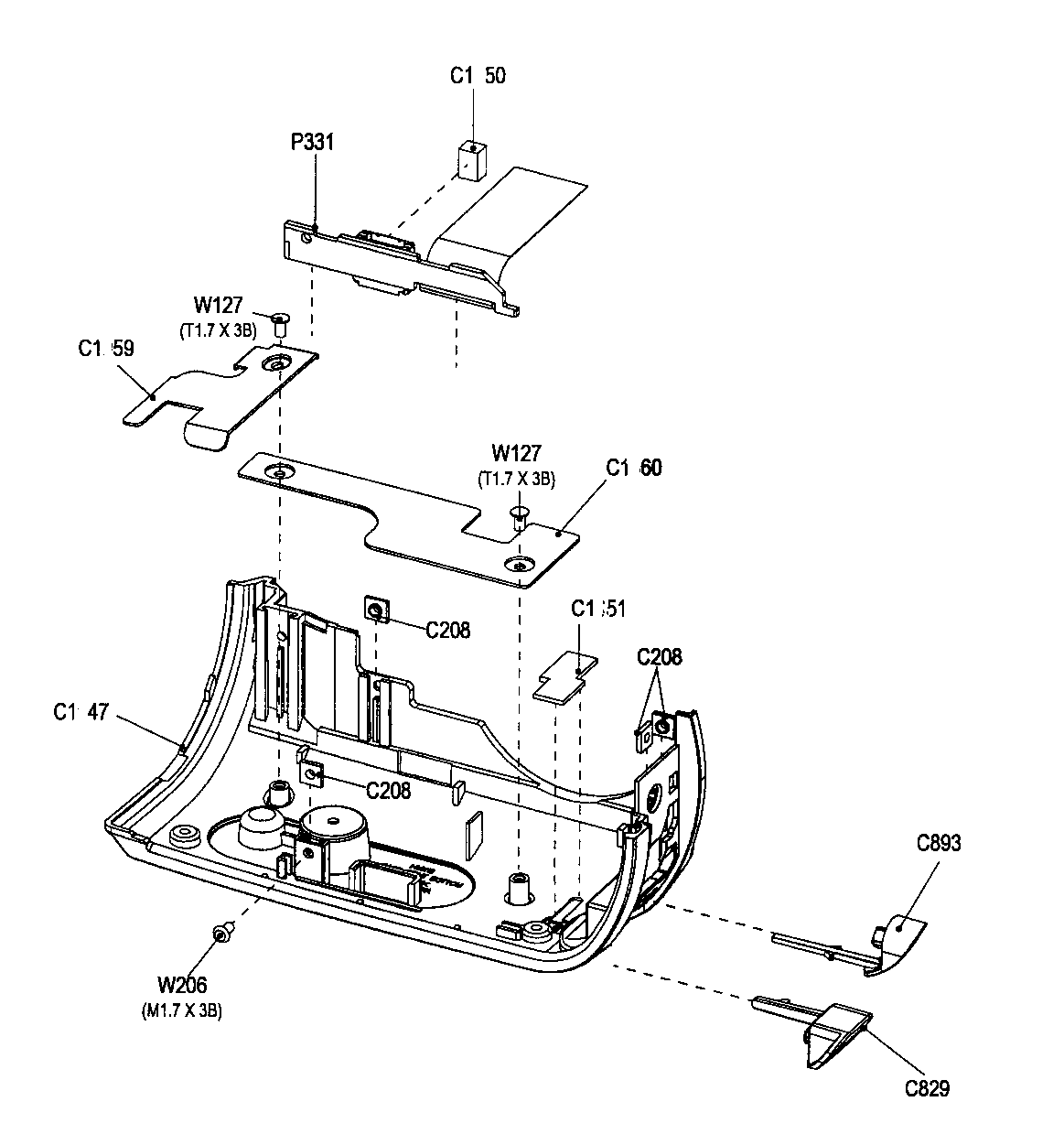

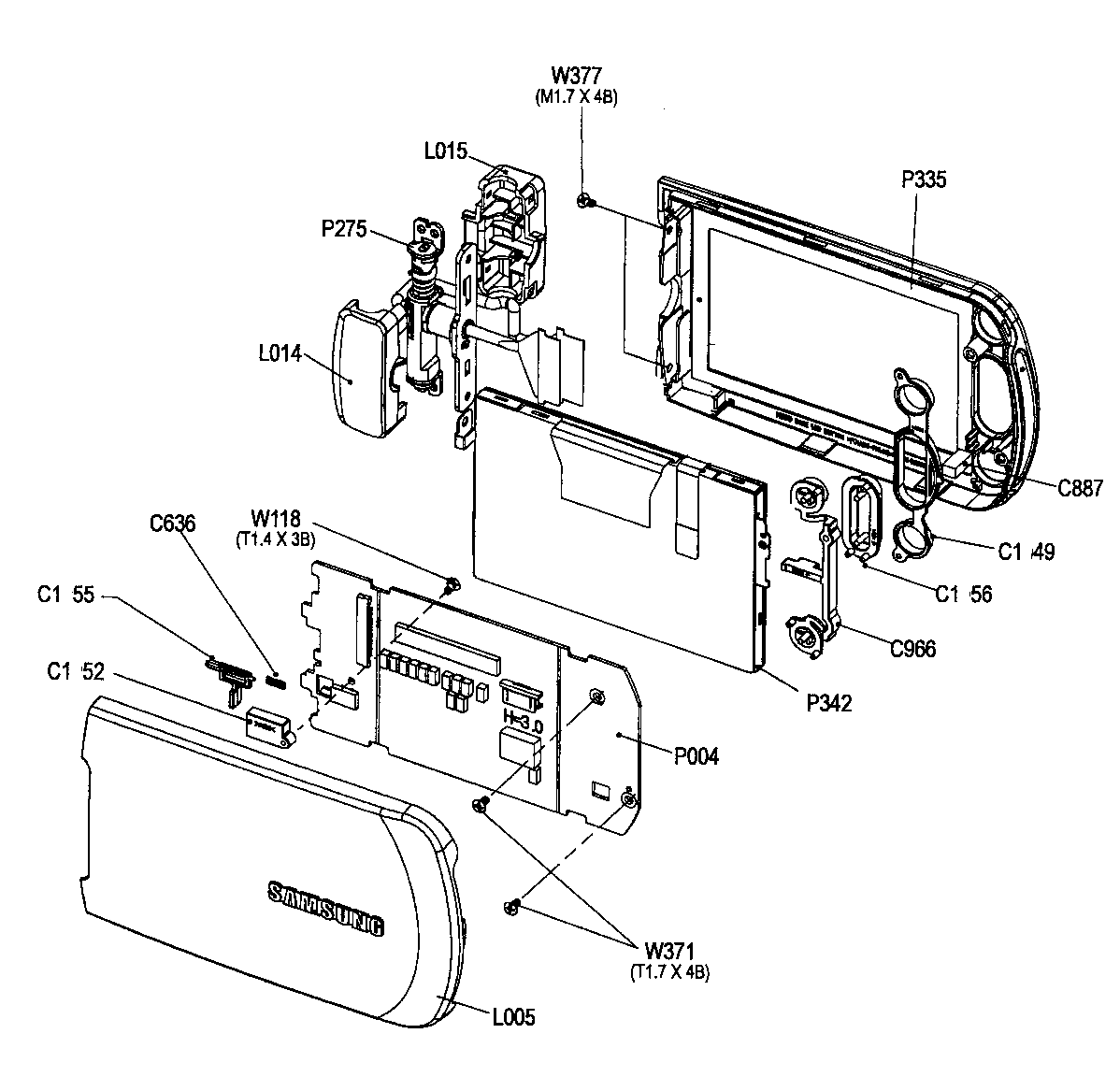

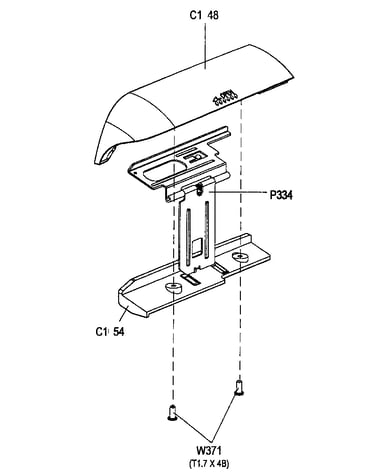

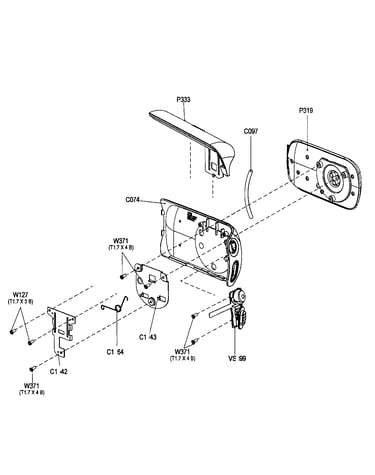

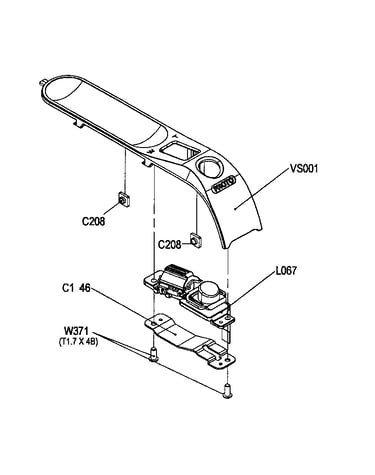

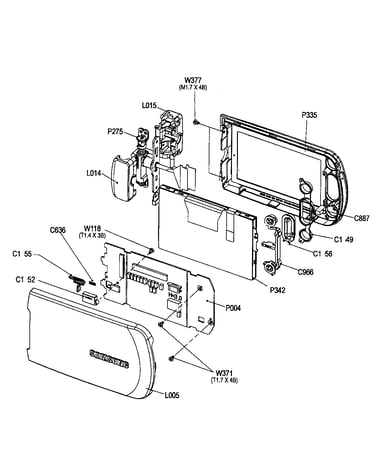

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |

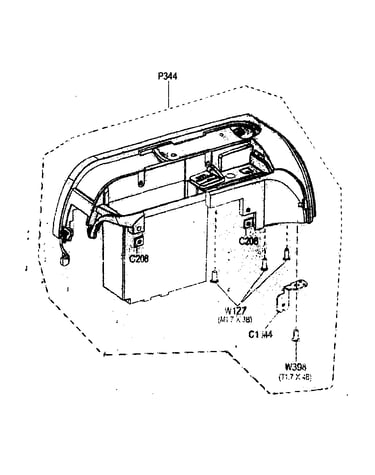

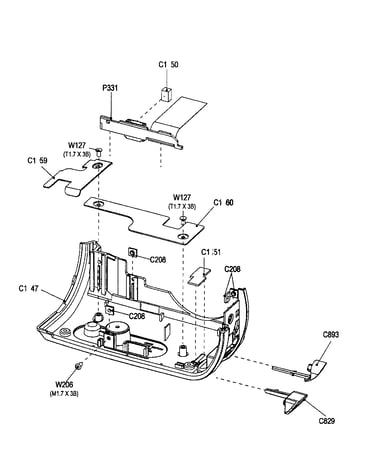

Bracket-nu AD61-12033A
#C208

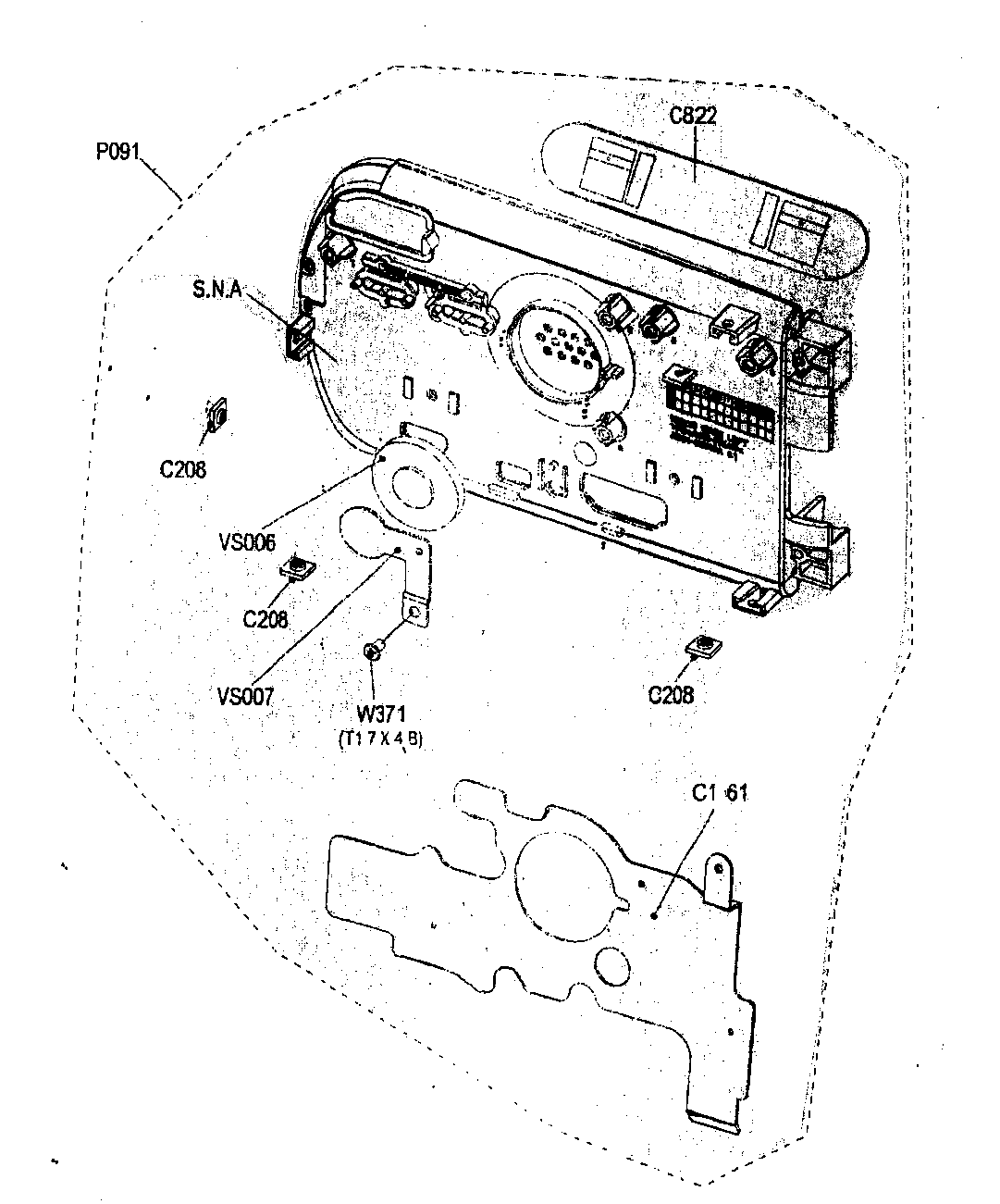

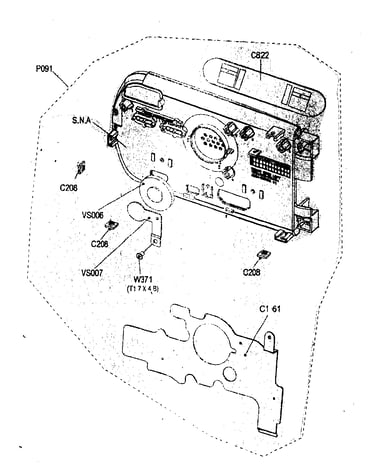

Case lt assy diagram

Bracket-nu

Part #AD61-12033A

This item is not returnable
$2.16
In Stock
Fet 0505-001679
#NI

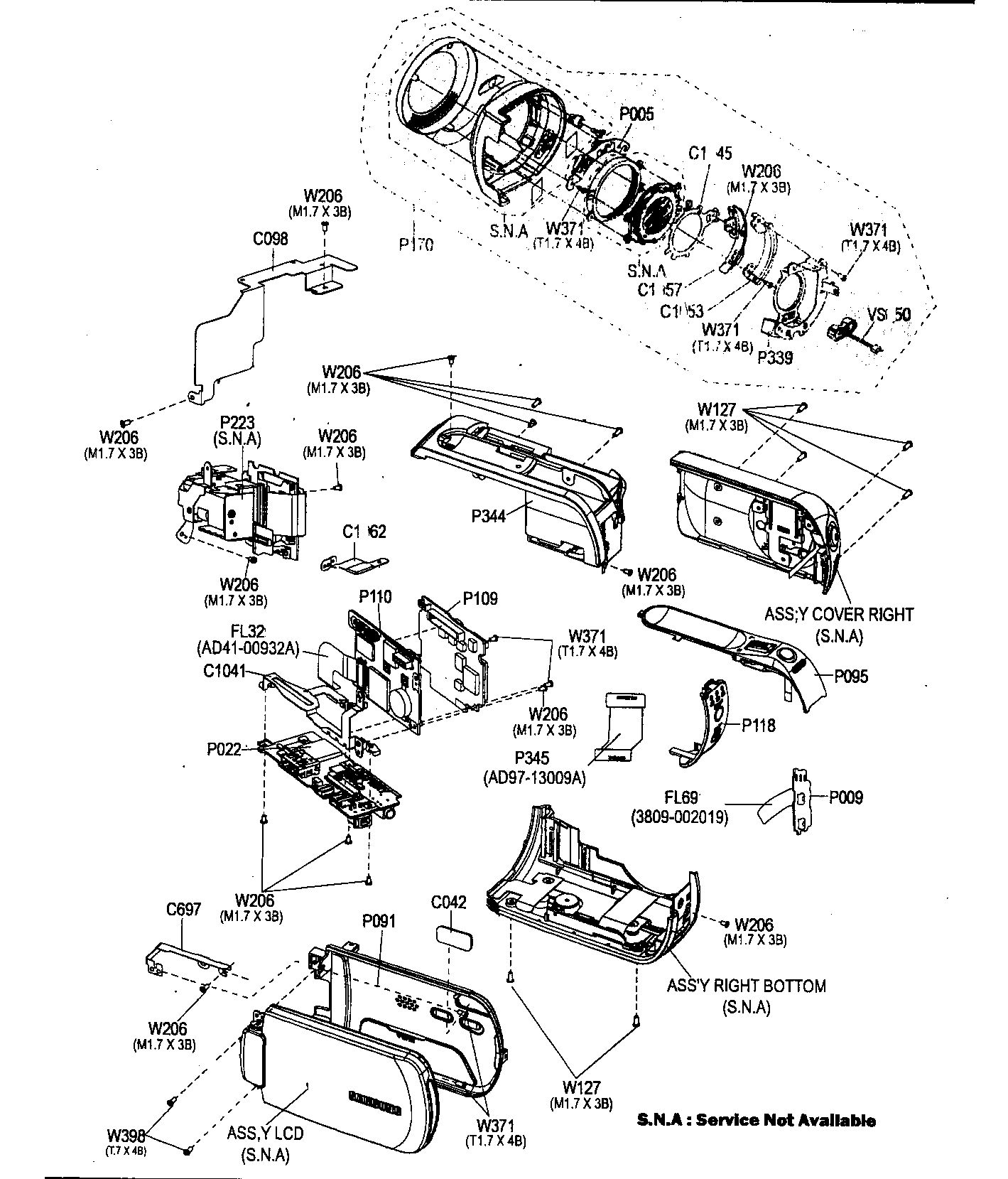

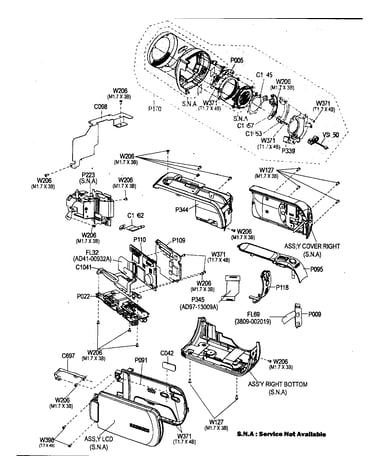

Chassis assy diagram

Fet

Part #0505-001679

Replaced by #0505-001679

?
Manufacturer substitution
This part replaces 0505-001679. Substitute parts can look different from the original.
This item is not returnable
$2.91
In Stock
Pcb Assembly AD92-00116A
#P005

Chassis assy diagram

Pcb assembly

Part #AD92-00116A

Replaced by #AD92-00116A

?
Manufacturer substitution
This part replaces AD92-00116A. Substitute parts can look different from the original.
$29.58
In Stock
Ic104,ic 1201-001193
#NI

Chassis assy diagram

Ic104,ic

Part #1201-001193

Replaced by #1201-001193

?
Manufacturer substitution
This part replaces 1201-001193. Substitute parts can look different from the original.
$8.77
In Stock
Holder AD61-02871A
#C153

Chassis assy diagram

Holder

Part #AD61-02871A

Replaced by #AD61-02871A

?
Manufacturer substitution
This part replaces AD61-02871A. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lens Filtr AD67-00433A
#P052

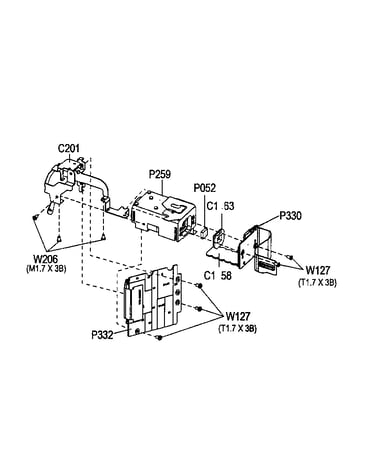

Camera assy diagram

Lens filtr

Part #AD67-00433A

Replaced by #AD67-00433A

?
Manufacturer substitution
This part replaces AD67-00433A. Substitute parts can look different from the original.
$9.88
In Stock
Ic501,ic 5c372 0909-001013
#NI

Chassis assy diagram

Ic501,ic 5c372

Part #0909-001013

Replaced by #0909-001013

?
Manufacturer substitution
This part replaces 0909-001013. Substitute parts can look different from the original.
$14.34
In Stock
Ic-posi. 1203-004786
#NI

Chassis assy diagram

Ic-posi.

Part #1203-004786

Replaced by #1203-004786

?
Manufacturer substitution
This part replaces 1203-004786. Substitute parts can look different from the original.
This item is not returnable
$2.26
In Stock
Bracket AD61-02849A
#C145

Chassis assy diagram

Bracket

Part #AD61-02849A

Replaced by #AD61-02849A

?
Manufacturer substitution
This part replaces AD61-02849A. Substitute parts can look different from the original.
This item is not returnable
$3.23
In Stock
Tap Screw 6003-001300
#W398

Chassis assy diagram

Tap screw

Part #6003-001300

Replaced by #6003-001300

?
Manufacturer substitution
This part replaces 6003-001300. Substitute parts can look different from the original.
This item is not returnable
$2.58
In Stock
