Model # 8HP RENEGADE Official WW Grinder 8-hp renegade chipper/shredder

Here are the diagrams and repair parts for Official WW Grinder 8HP-RENEGADE 8-hp renegade chipper/shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Washer K1250-C-065
#56

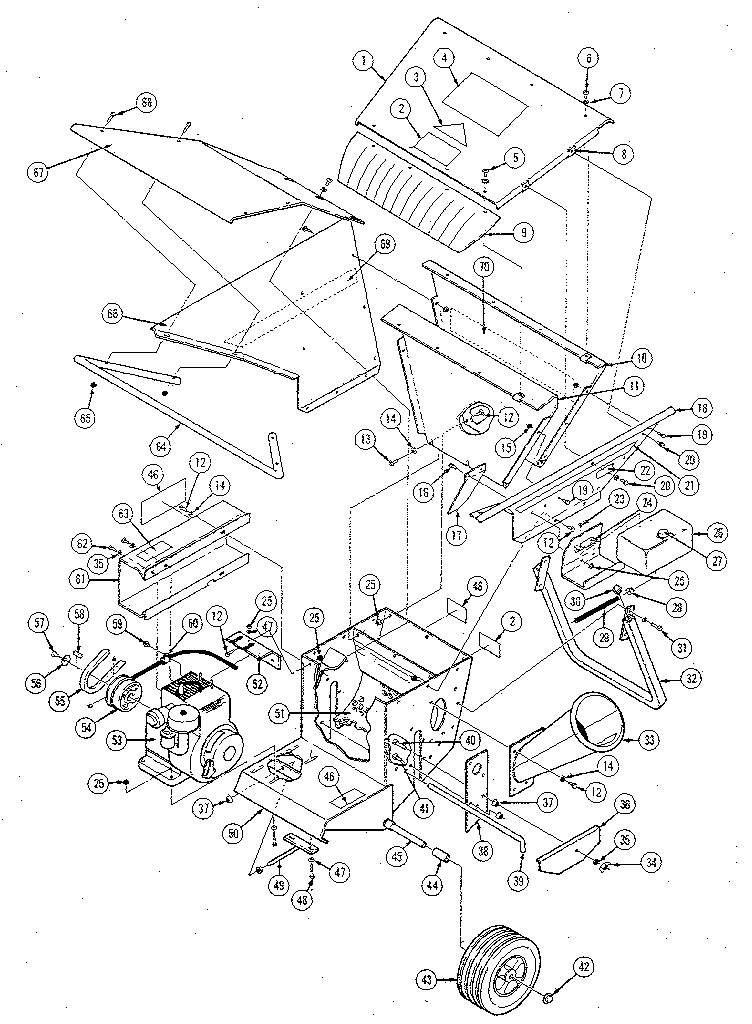

Grinder diagram

Washer

Part #K1250-C-065

Replaced by #736-0331

?
Manufacturer substitution
This part replaces K1250-C-065. Substitute parts can look different from the original.
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Bolt 0255-0503P
#16

Grinder diagram

Bolt

Part #0255-0503P

The manufacturer no longer makes this part, and there's no substitute part

Screw 0205-0503P
Screw

Part #0205-0503P

The manufacturer no longer makes this part, and there's no substitute part

Whiz Nut 0335-004P
#15

Grinder diagram

Whiz nut

Part #0335-004P

Replaced by #1186389

?
Manufacturer substitution
This part replaces 0335-004P. Substitute parts can look different from the original.
This item is not returnable
$4.51
In Stock
Screw 0205-0603
#41

Grinder diagram

Screw

Part #0205-0603

The manufacturer no longer makes this part, and there's no substitute part

Lockwsher 0410-005
Lockwsher

Part #0410-005

Replaced by #736-0607

?
Manufacturer substitution
This part replaces 0410-005. Substitute parts can look different from the original.
This item is not returnable
$5.11 |
16% OFF Phone Price : $6.11
In Stock
Screw 0205-06078
#6

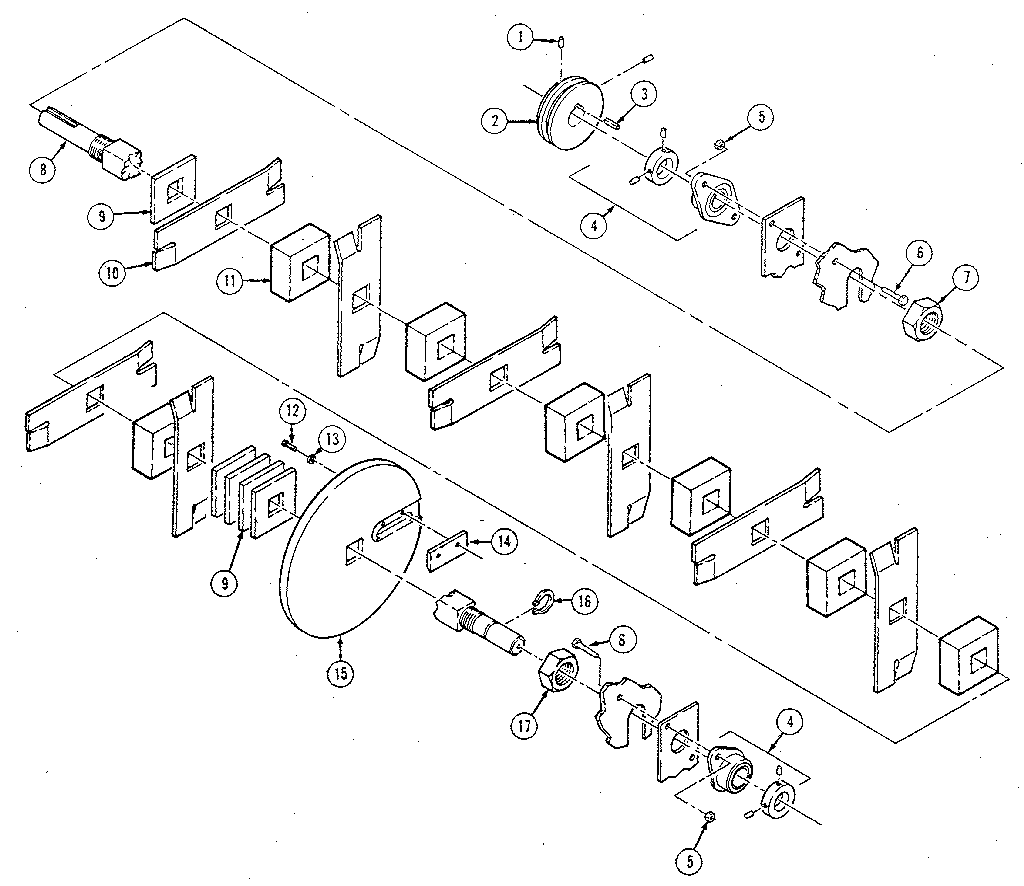

Cylinder diagram

Screw

Part #0205-06078

Replaced by #710-3001

?
Manufacturer substitution
This part replaces 0205-06078. Substitute parts can look different from the original.
$11.40
In Stock
Washer 0420-005P
#47

Grinder diagram

Washer

Part #0420-005P

The manufacturer no longer makes this part, and there's no substitute part

Screw 0205-0403
#19

Grinder diagram

Screw

Part #0205-0403

The manufacturer no longer makes this part, and there's no substitute part

Whiz Nut 0335-006P
Whiz nut

Part #0335-006P

Replaced by #1186393

?
Manufacturer substitution
This part replaces 0335-006P. Substitute parts can look different from the original.
This item is not returnable
$4.86
In Stock
