Magic Chef
Wine & Beverage Cooler

Model # MCWC44DZ Official Magic Chef wine cooler

Here are the diagrams and repair parts for Official Magic Chef MCWC44DZ wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Starter P6R8MD
#48

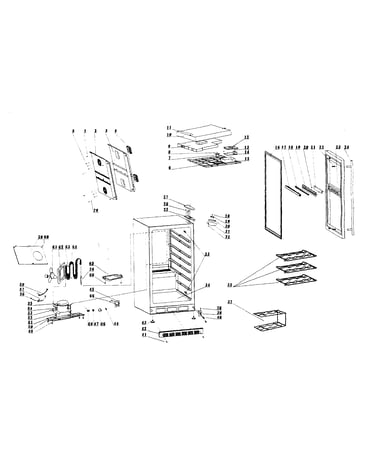

Main asy diagram

Starter

Part #P6R8MD

The manufacturer no longer makes this part, and there's no substitute part

Hinge D165TDOP00.02
#25

Main asy diagram

Hinge

Part #D165TDOP00.02

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual OM-MCWC44DZ
#NI

Main asy diagram

Owner's manual

Part #OM-MCWC44DZ

The manufacturer no longer makes this part, and there's no substitute part

Hinge D165TDOP00.03
#39

Main asy diagram

Hinge

Part #D165TDOP00.03

The manufacturer no longer makes this part, and there's no substitute part

Lamp Shield D155TDIP05-01
#31

Main asy diagram

Lamp shield

Part #D155TDIP05-01

The manufacturer no longer makes this part, and there's no substitute part

Pcb Lamp D155TDIP03.03
#7

Main asy diagram

Pcb lamp

Part #D155TDIP03.03

The manufacturer no longer makes this part, and there's no substitute part

Reflector D155TDIP03-08
#30

Main asy diagram

Reflector

Part #D155TDIP03-08

The manufacturer no longer makes this part, and there's no substitute part

Door Glass D155TDOP02
#23

Main asy diagram

Door glass

Part #D155TDOP02

The manufacturer no longer makes this part, and there's no substitute part

Wire Shelf D155TDIP00.02
#35A

Main asy diagram

Wire shelf

Part #D155TDIP00.02

The manufacturer no longer makes this part, and there's no substitute part

Washer D165P00-05
#38

Main asy diagram

Washer

Part #D165P00-05

The manufacturer no longer makes this part, and there's no substitute part
