Miter Saw

Model # MS350 Official Delta miter saw

Here are the diagrams and repair parts for Official Delta MS350 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

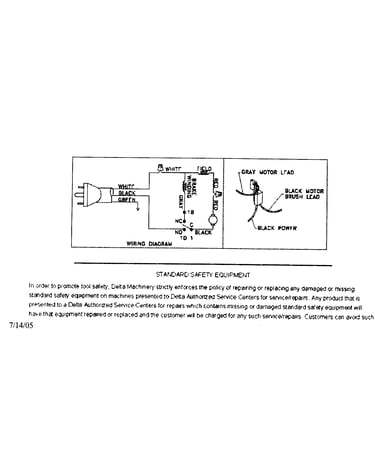

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Spring 906557
#37

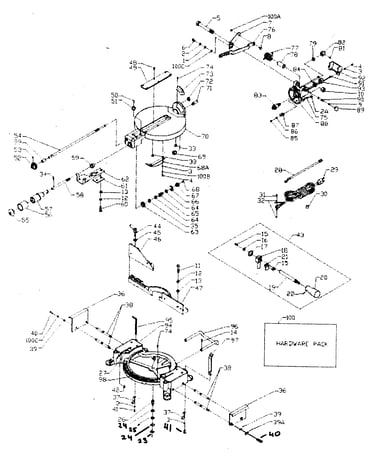

Base asy diagram

Spring

Part #906557

The manufacturer no longer makes this part, and there's no substitute part

Ext T Wshr 1320102
#32

Base asy diagram

Ext t wshr

Part #1320102

The manufacturer no longer makes this part, and there's no substitute part

Screw 1343051
#141

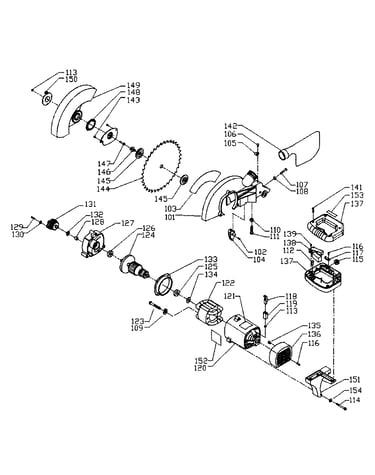

Motor diagram

Screw

Part #1343051

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 1349817
#78

Base asy diagram

Sleeve

Part #1349817

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Rivet, 5-mm 1310016
#74

Base asy diagram

Power tool rivet, 5-mm

Part #1310016

The manufacturer no longer makes this part, and there's no substitute part

Deflector 1349910
#104

Motor diagram

Deflector

Part #1349910

The manufacturer no longer makes this part, and there's no substitute part

Washer 1243502
#24

Base asy diagram

Washer

Part #1243502

The manufacturer no longer makes this part, and there's no substitute part

Screw 1246177
#102

Motor diagram

Screw

Part #1246177

The manufacturer no longer makes this part, and there's no substitute part

Label 899917
#153

Motor diagram

Label

Part #899917

The manufacturer no longer makes this part, and there's no substitute part

Spec.screw 1349953
#8

Base asy diagram

Spec.screw

Part #1349953

The manufacturer no longer makes this part, and there's no substitute part
