Model # DW708-TYPE 4 Official DeWalt miter saw

Here are the diagrams and repair parts for Official DeWalt DW708-TYPE-4 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

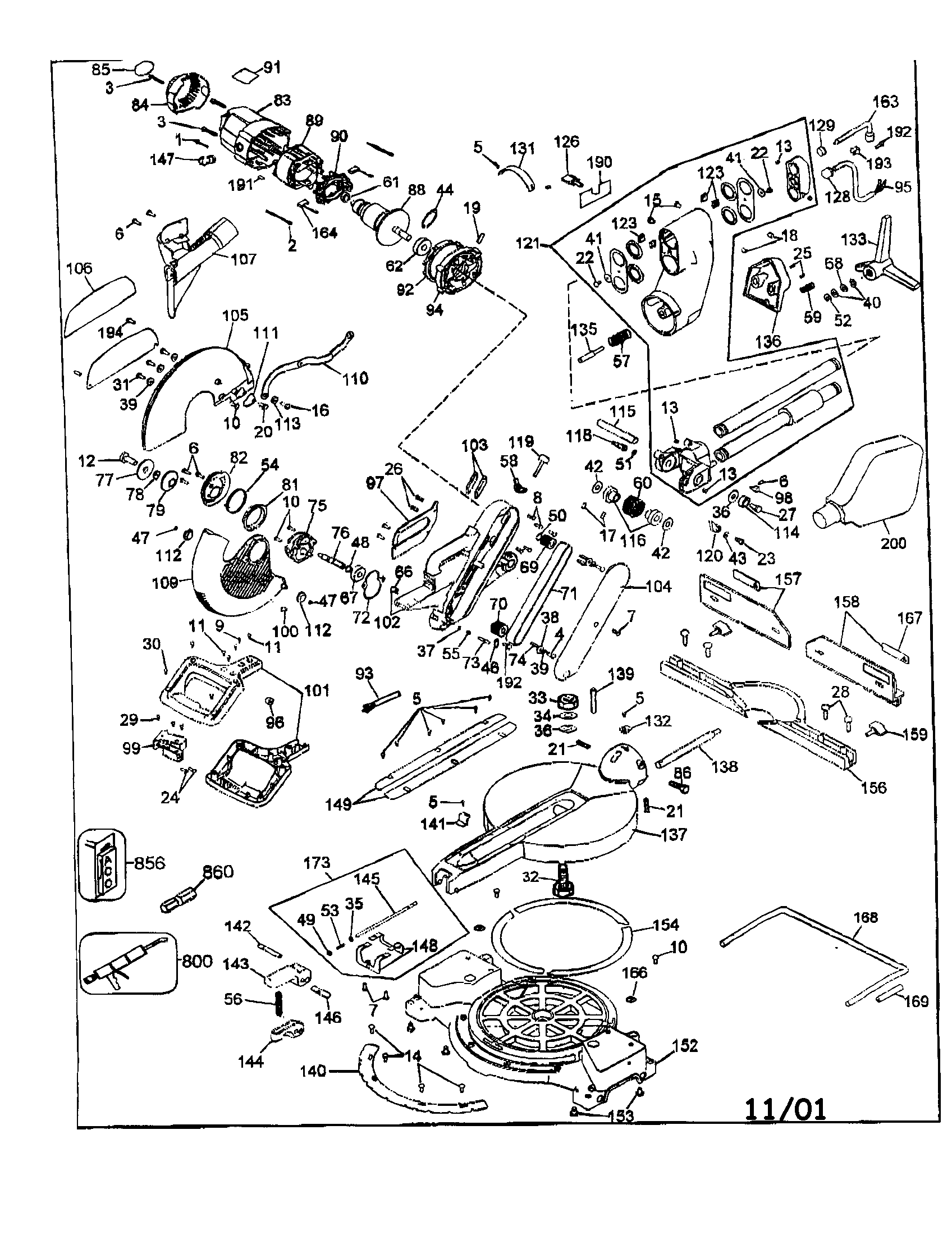

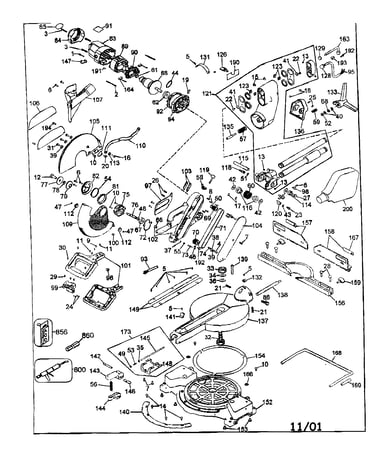

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Set Screw 150075-00
#17

Miter saw diagram

Set screw

Part #150075-00

The manufacturer no longer makes this part, and there's no substitute part

Grease 93488-00
#800

Miter saw diagram

Grease

Part #93488-00

The manufacturer no longer makes this part, and there's no substitute part

Lock Rod 153622-00
#145

Miter saw diagram

Lock rod

Part #153622-00

The manufacturer no longer makes this part, and there's no substitute part

Nut 153794-00
#33

Miter saw diagram

Nut

Part #153794-00

The manufacturer no longer makes this part, and there's no substitute part

Wrnch Hldr 391358-00
#193

Miter saw diagram

Wrnch hldr

Part #391358-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 153639-00
#23

Miter saw diagram

Screw

Part #153639-00

The manufacturer no longer makes this part, and there's no substitute part

Bolt 330045-06
#26

Miter saw diagram

Bolt

Part #330045-06

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Retainer Ring 144803-00
#44

Miter saw diagram

Power tool retainer ring

Part #144803-00

The manufacturer no longer makes this part, and there's no substitute part

Pin 153640-00
#139

Miter saw diagram

Pin

Part #153640-00

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Crown Molding Stop DW7084
#856E

Miter saw diagram

Miter saw crown molding stop

Part #DW7084

The manufacturer no longer makes this part, and there's no substitute part
