Model # MLG31PCAWS Official Maytag commercial dryer

Here are the diagrams and repair parts for Official Maytag MLG31PCAWS commercial dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

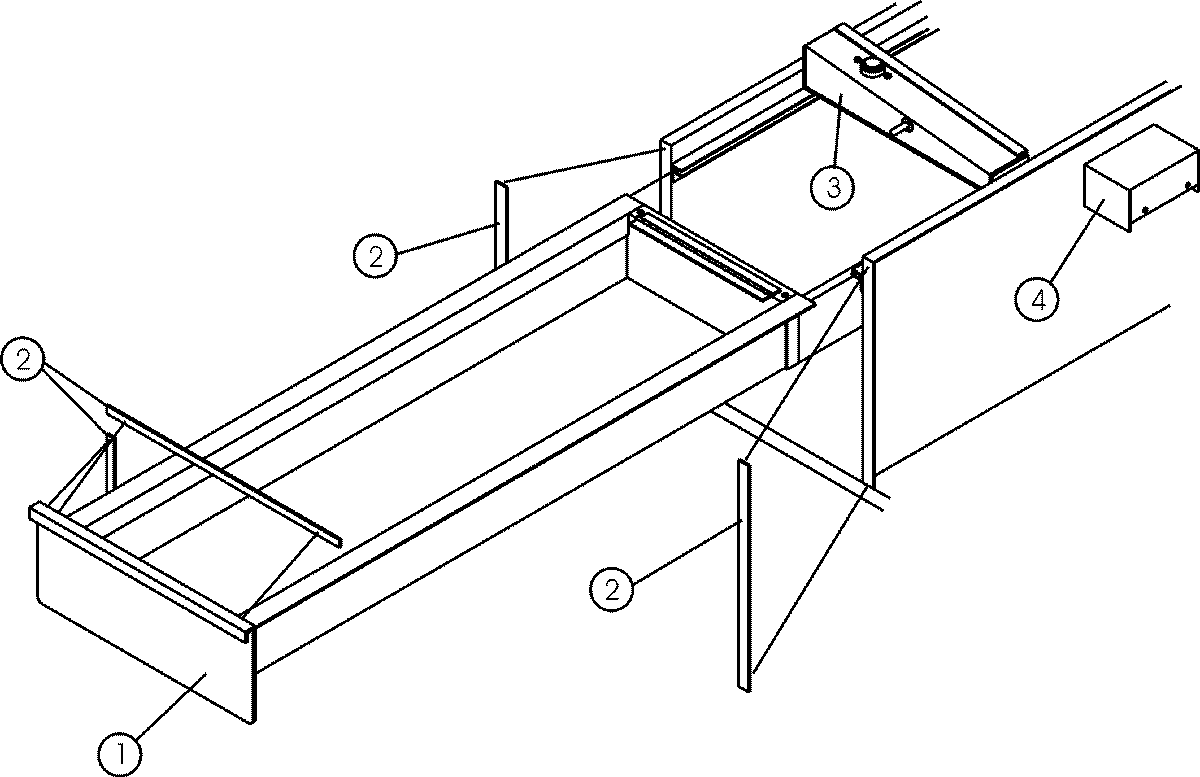

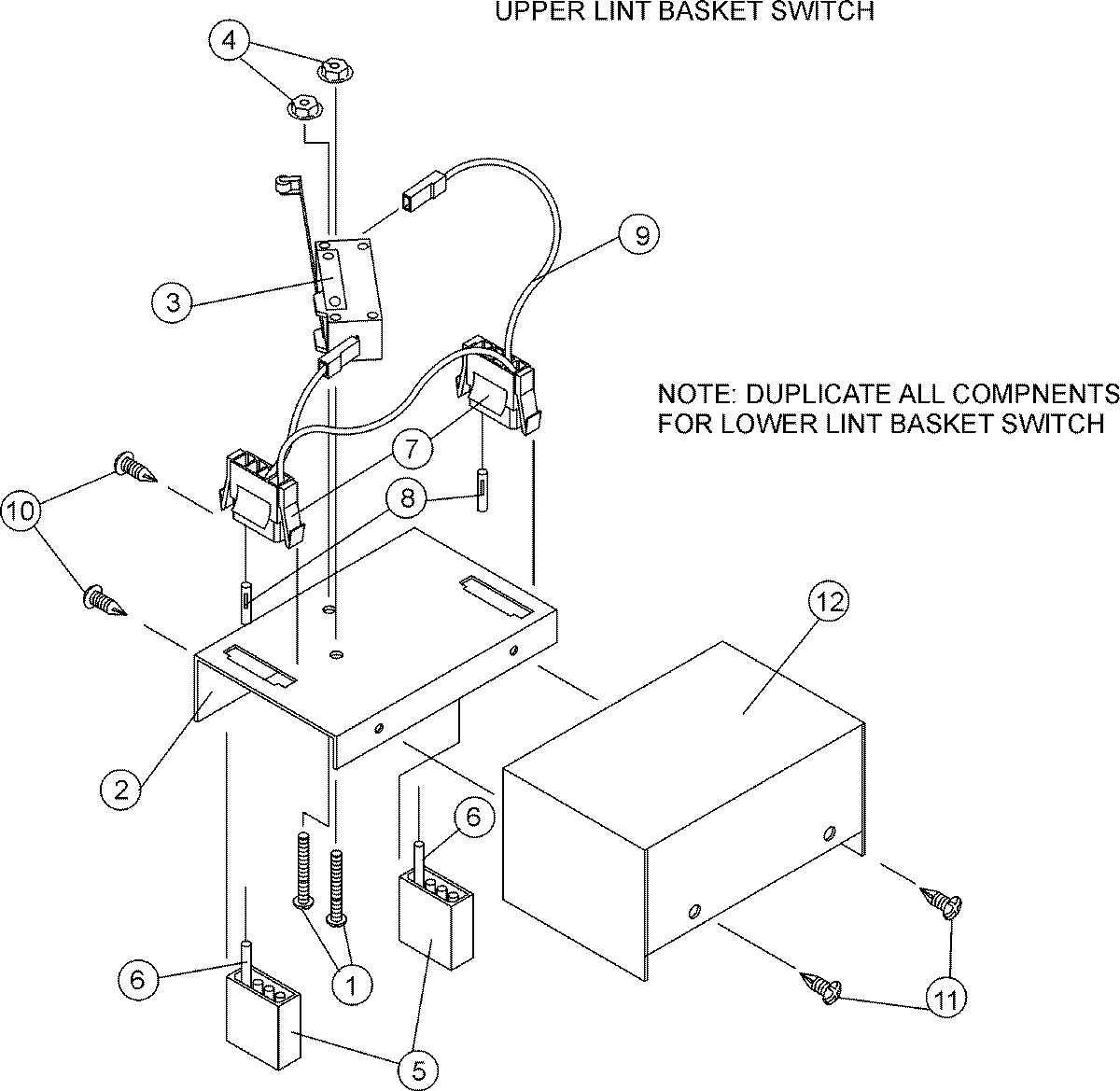

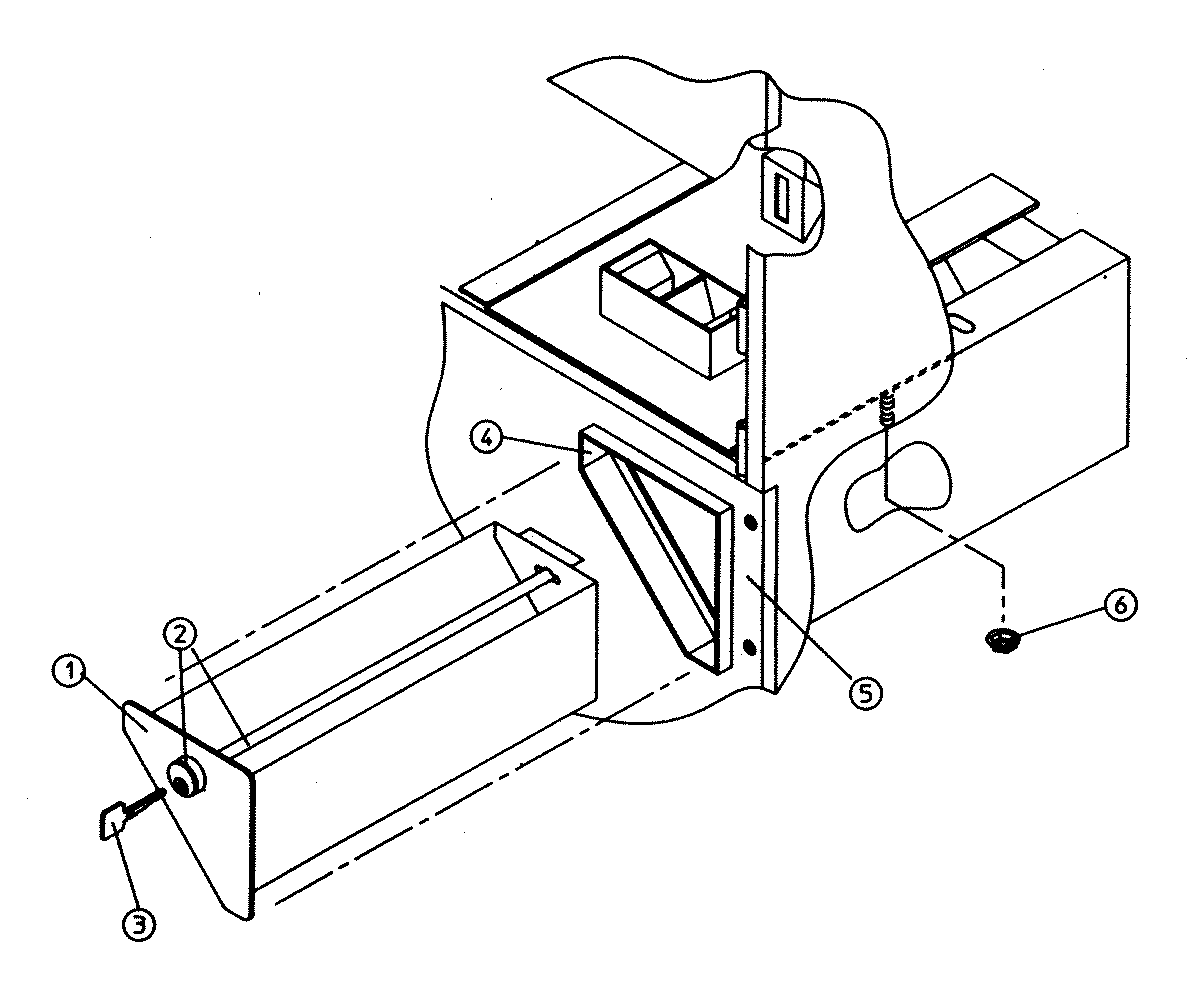

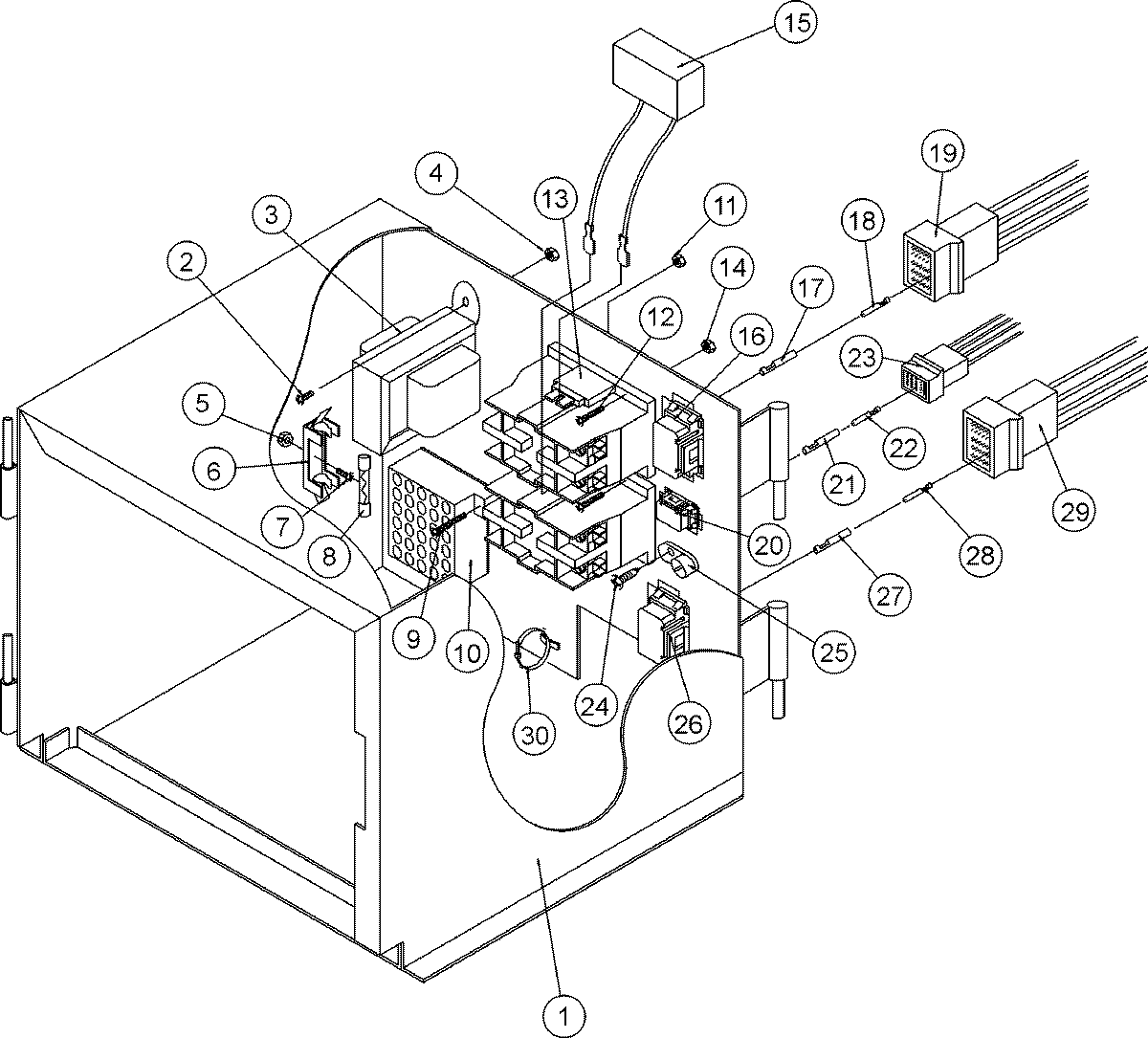

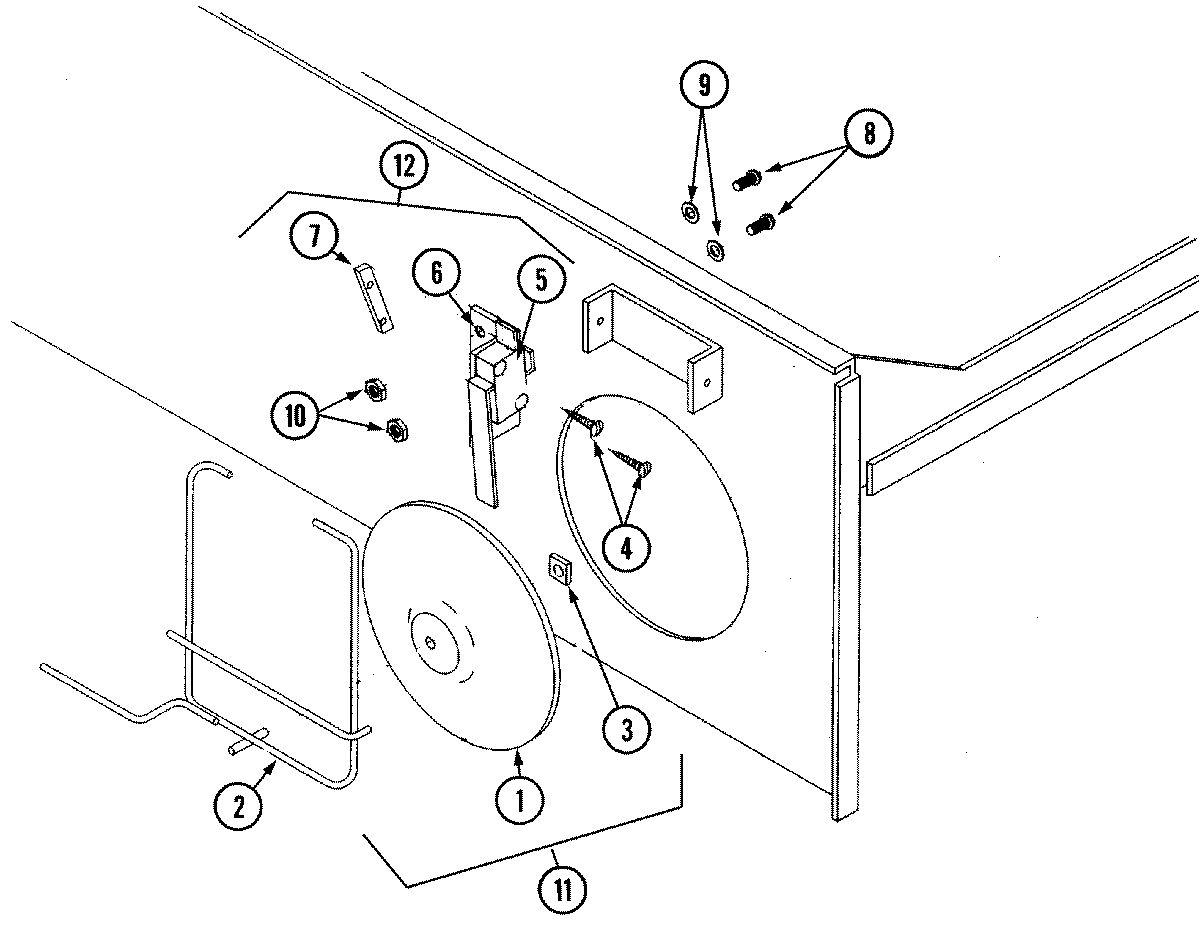

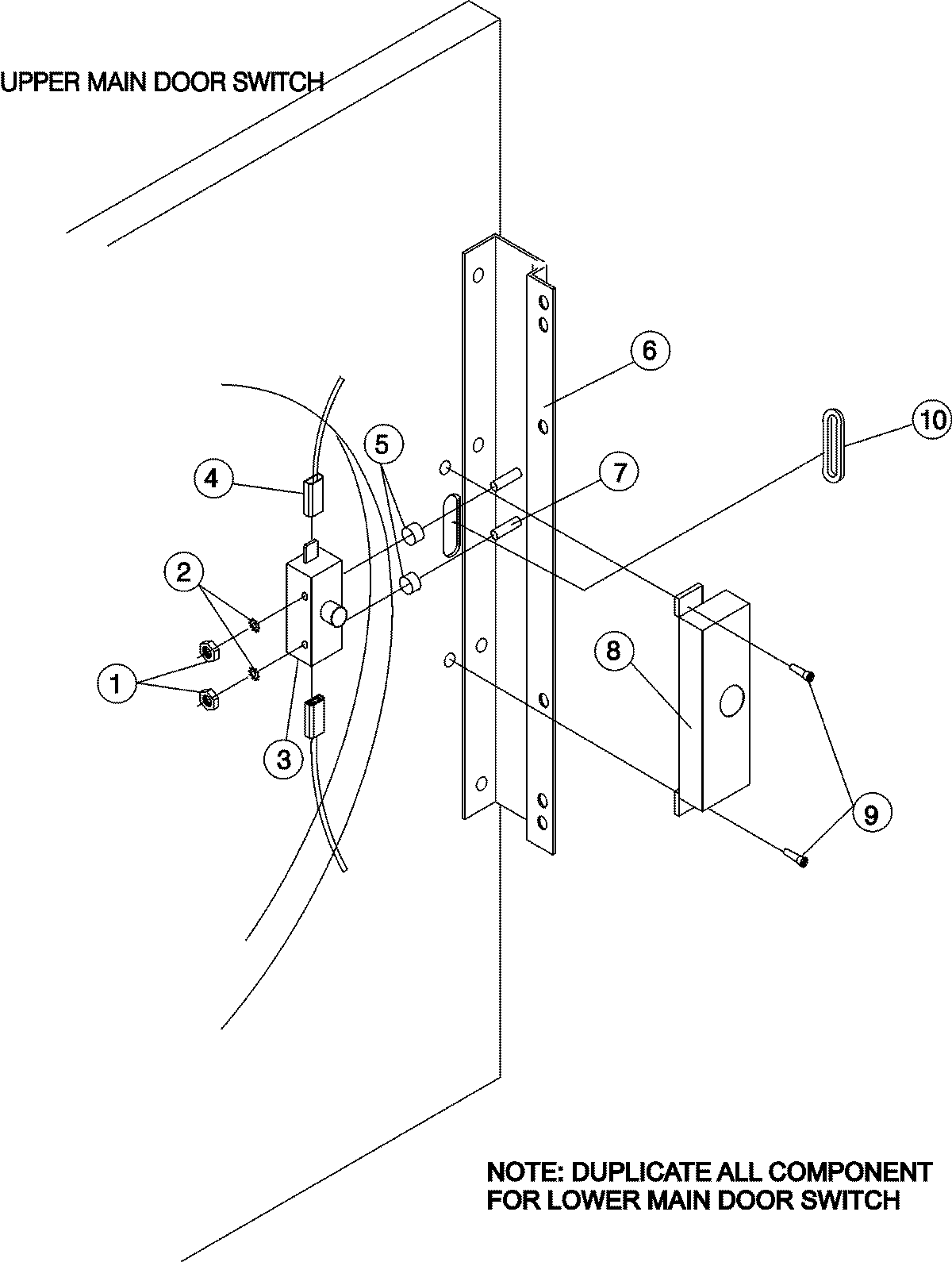

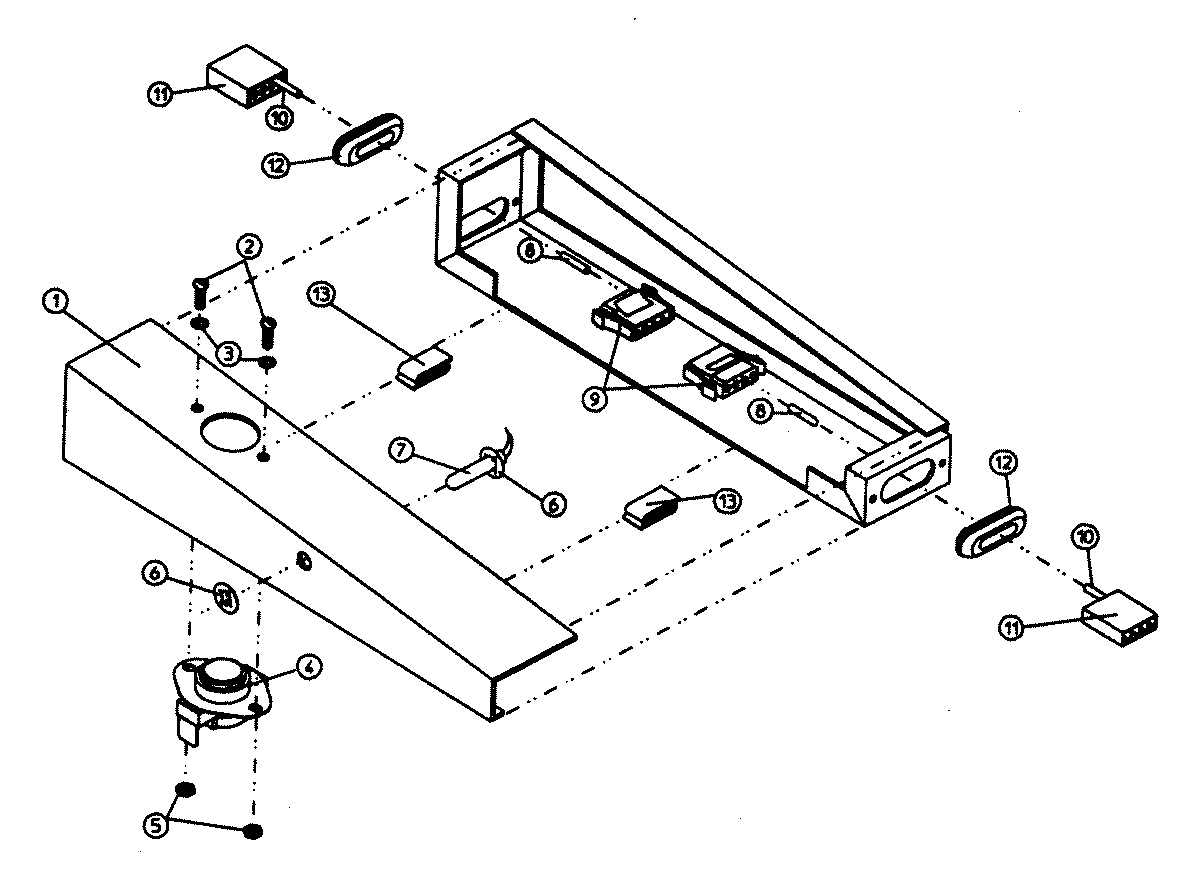

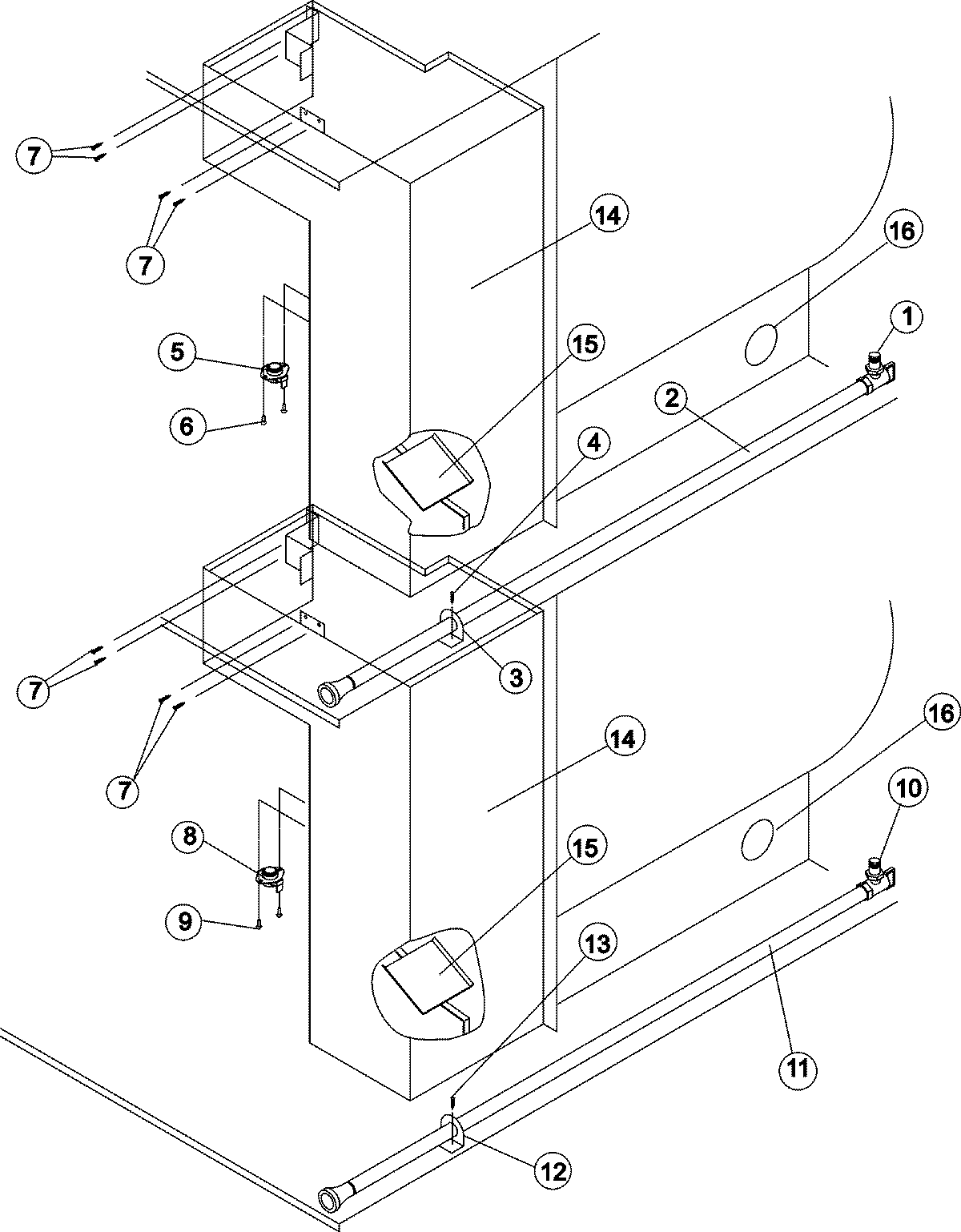

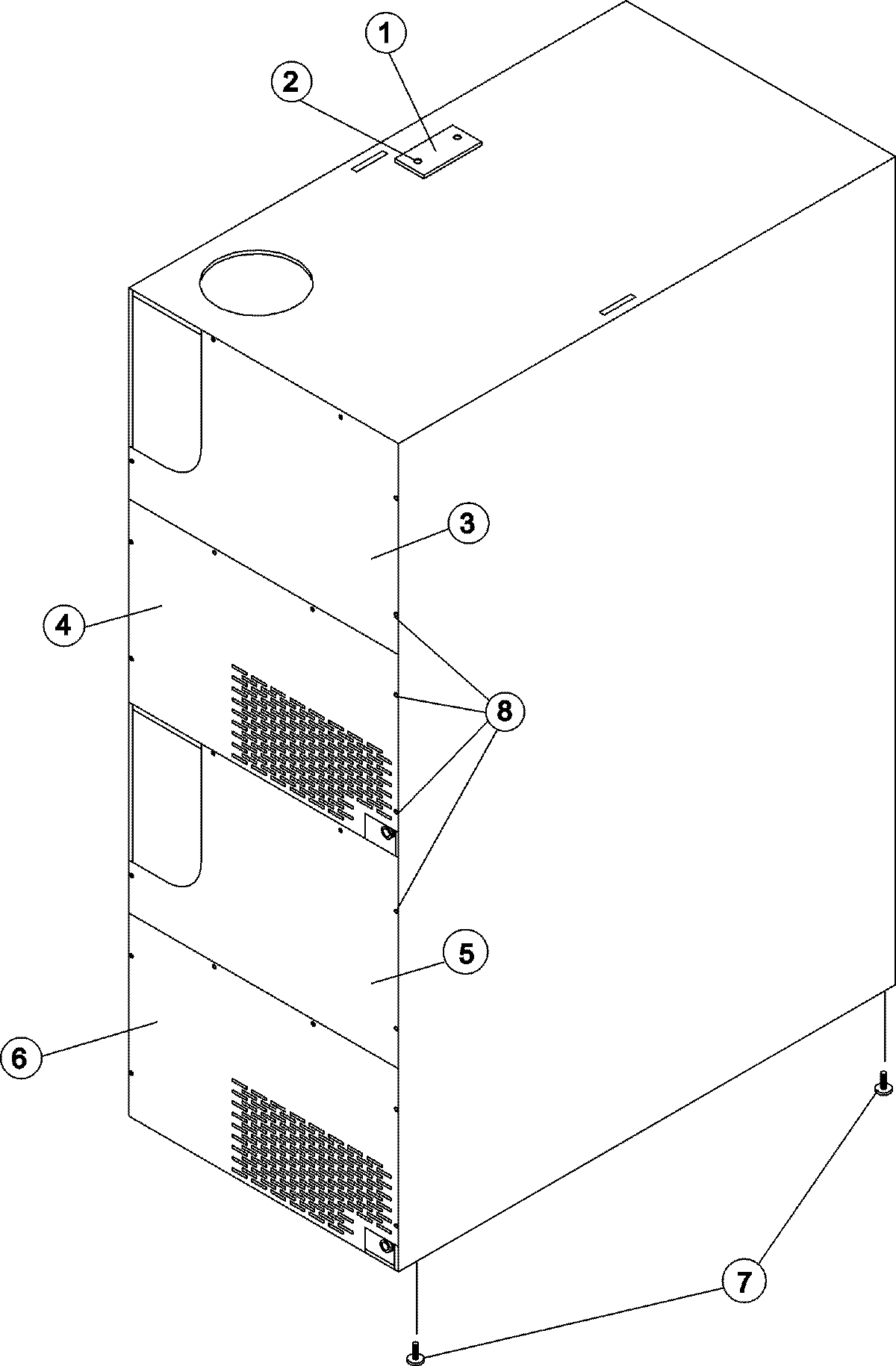

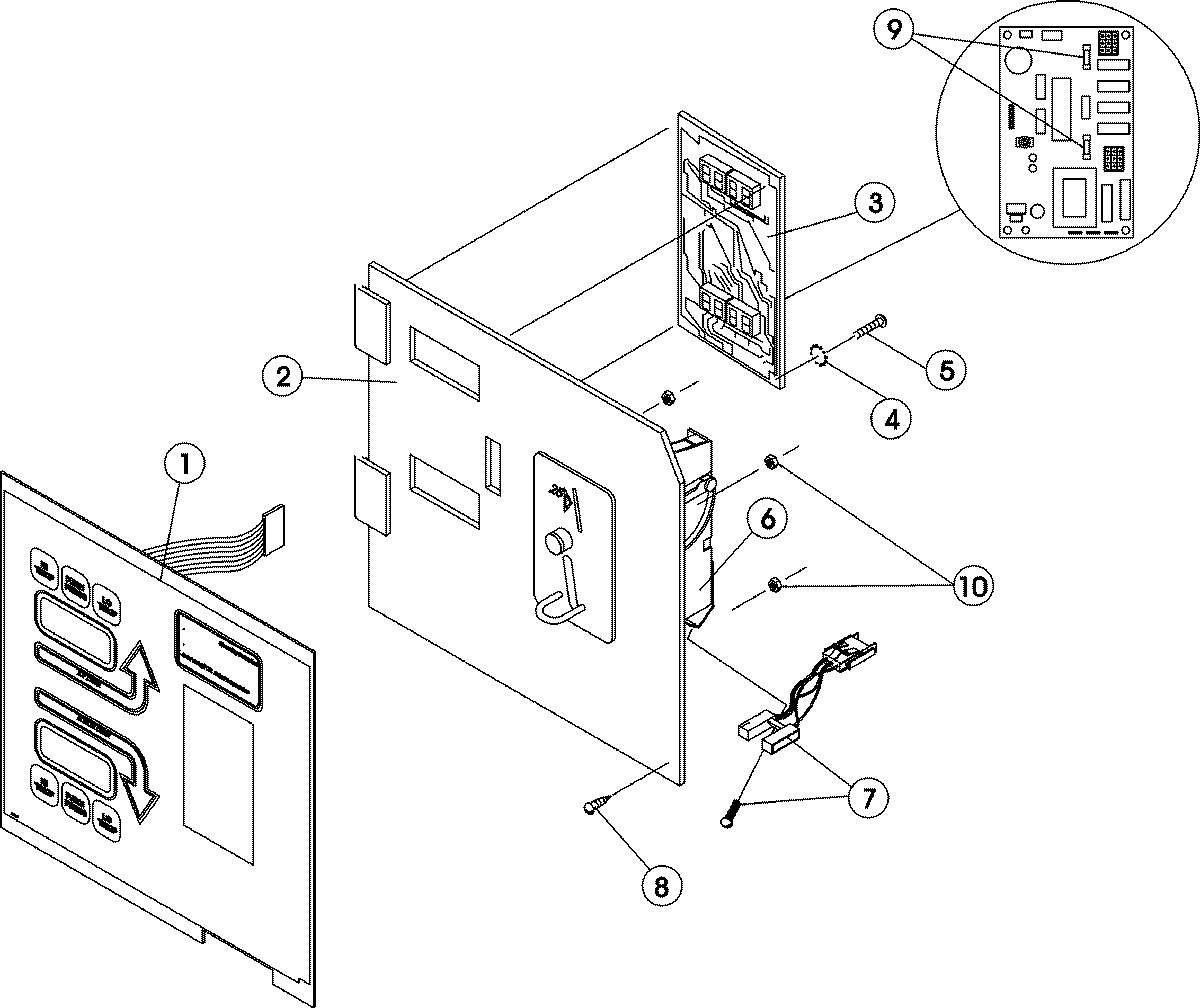

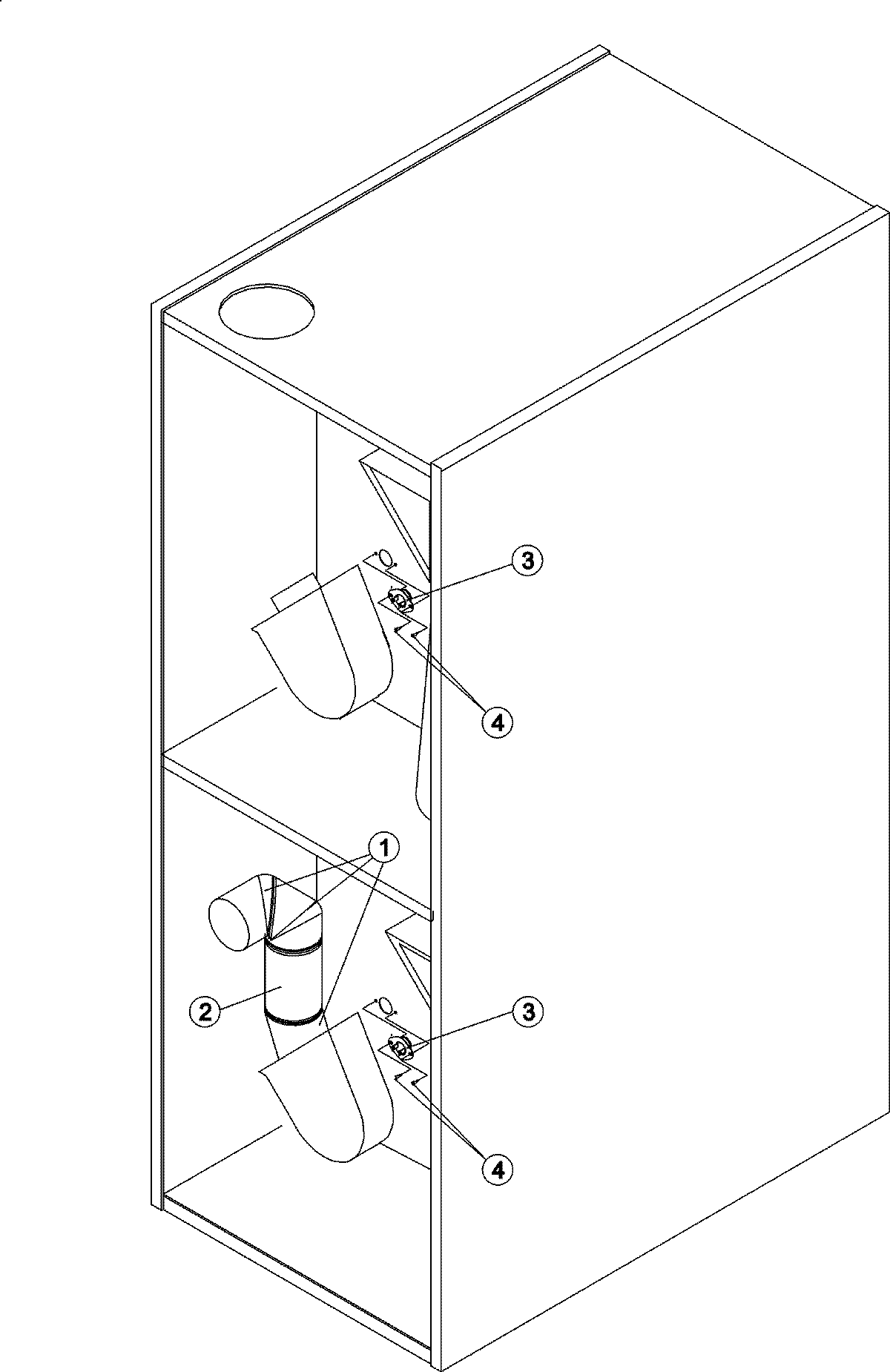

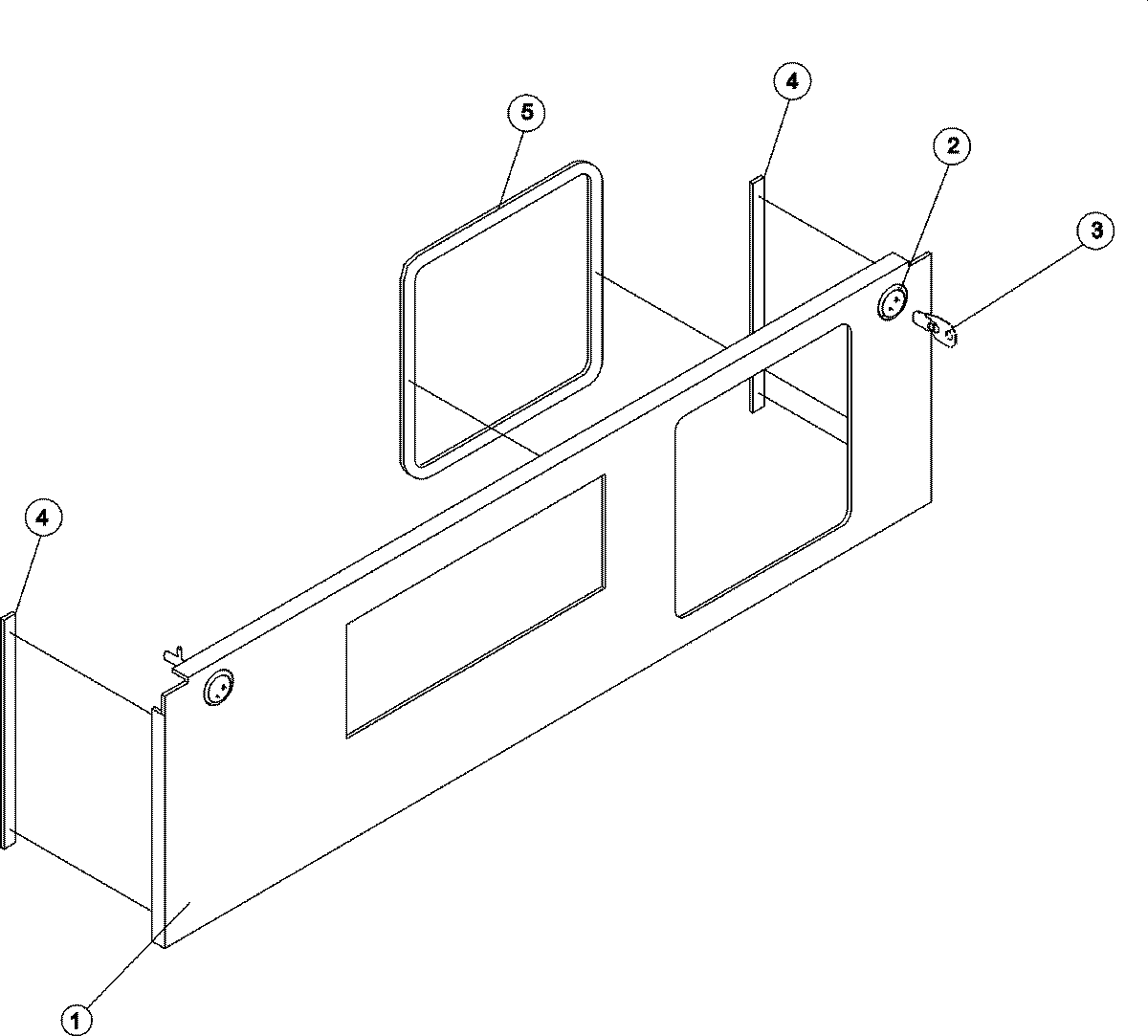

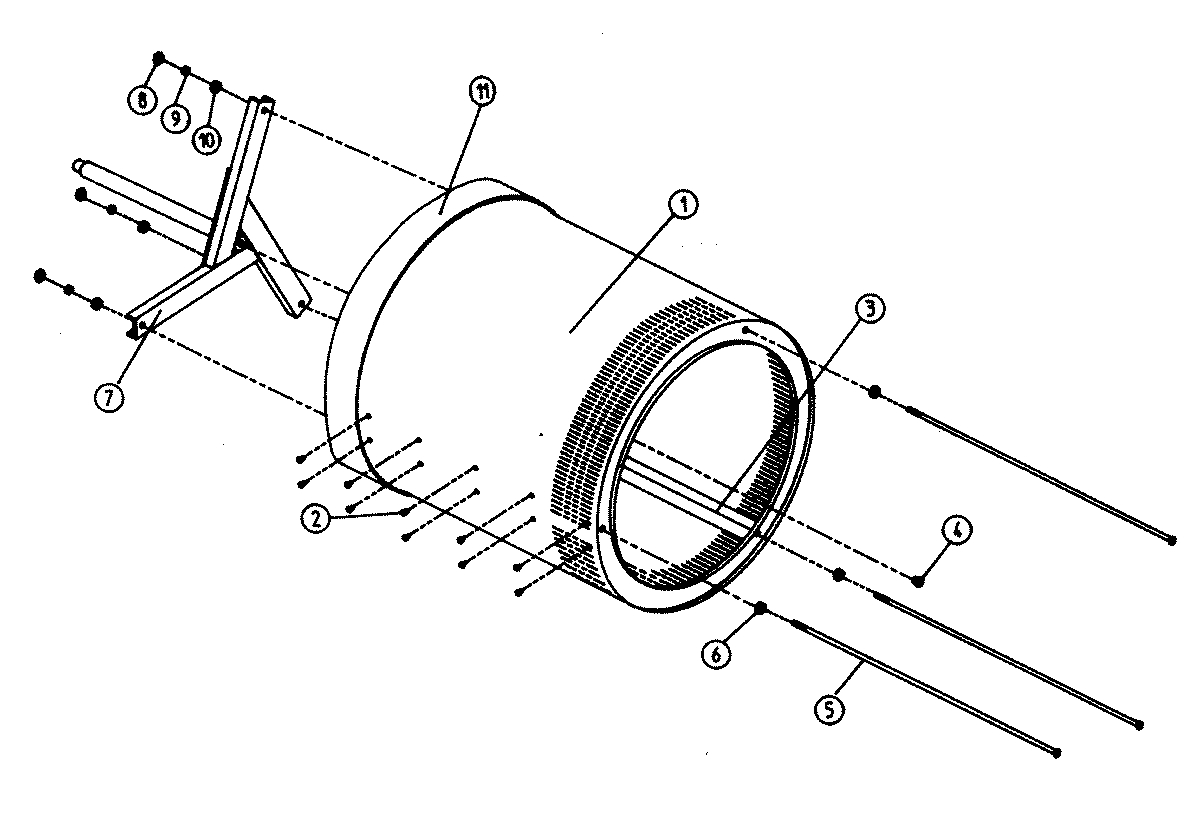

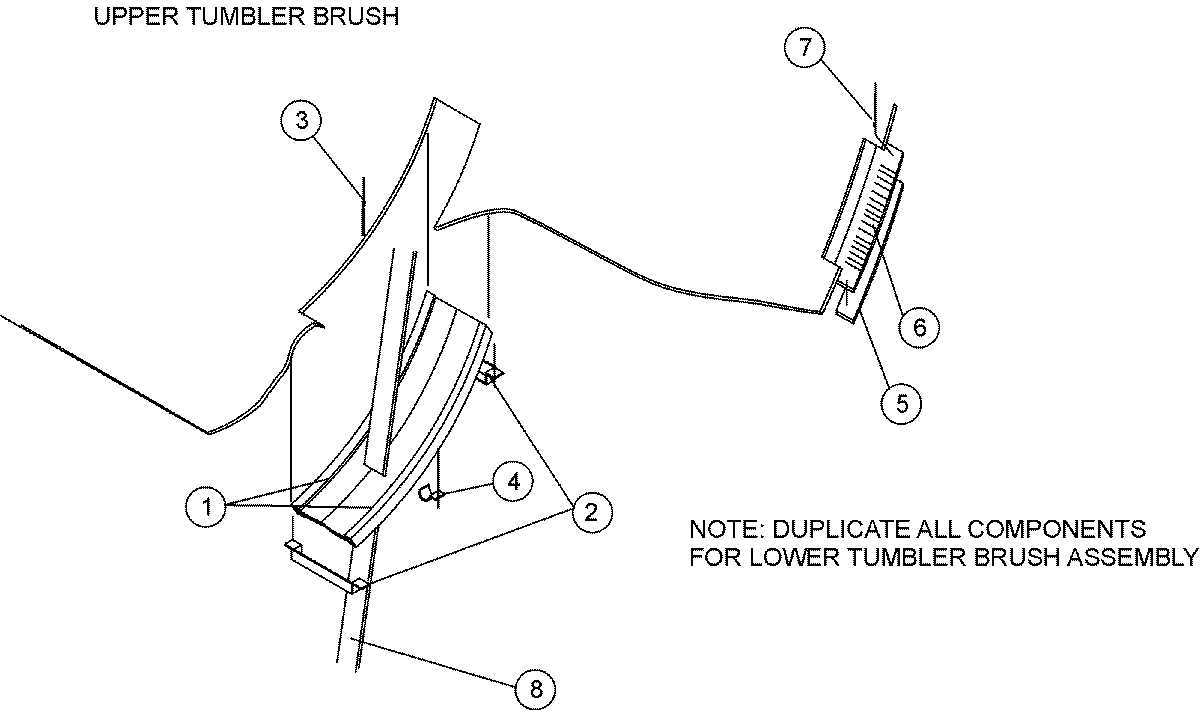

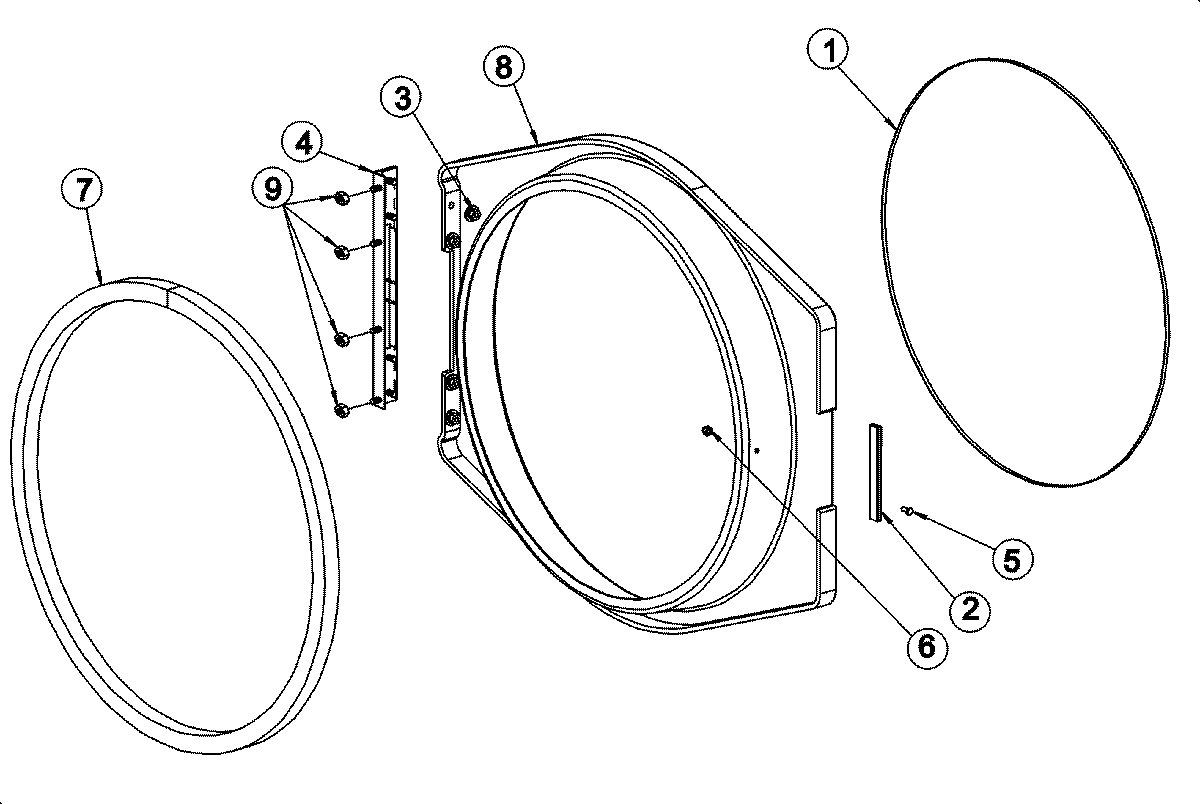

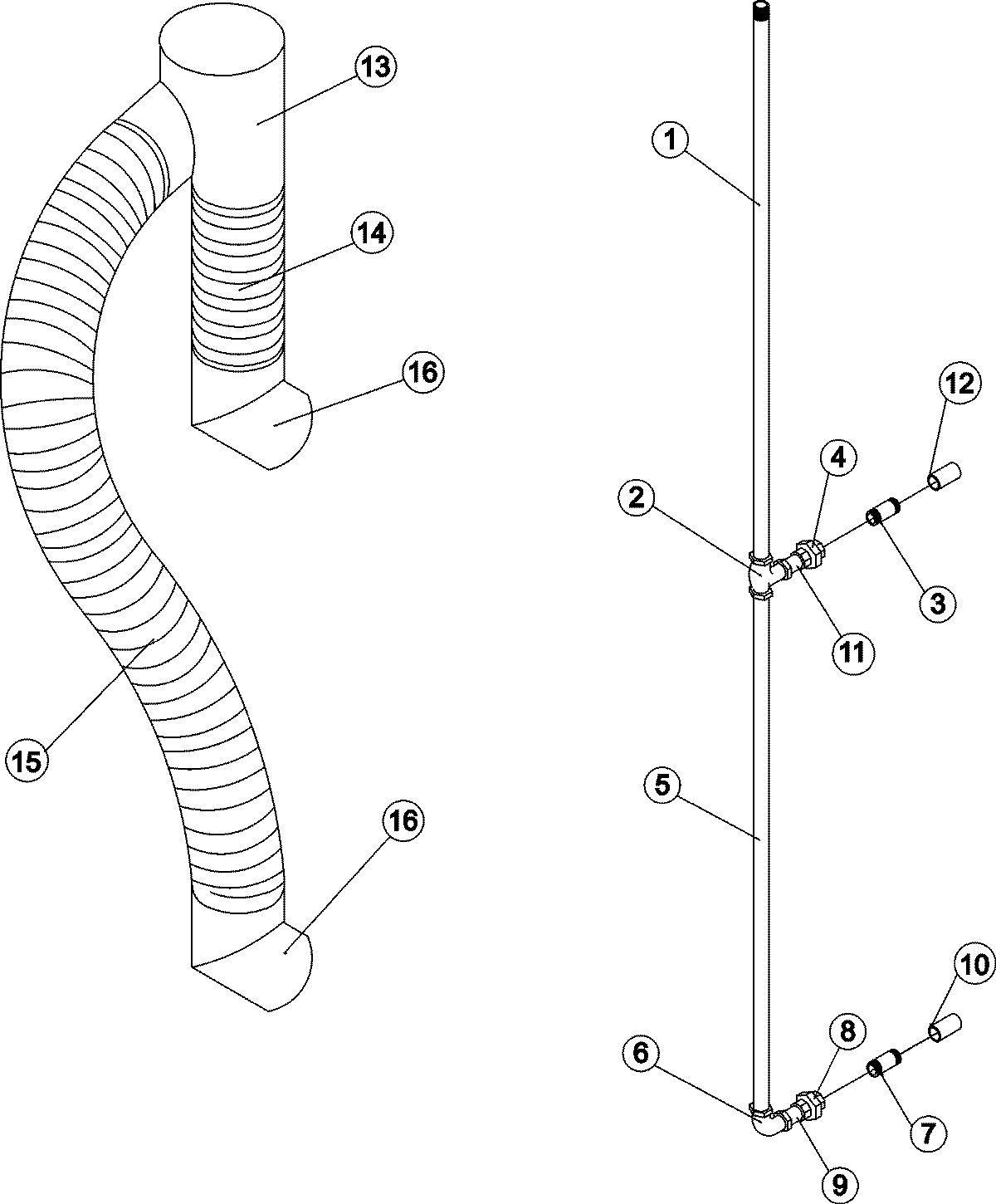

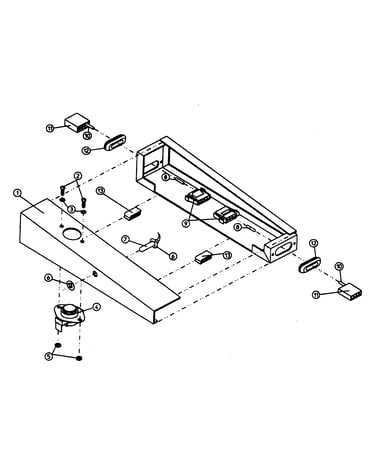

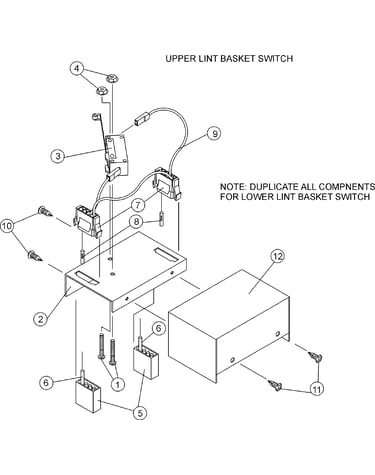

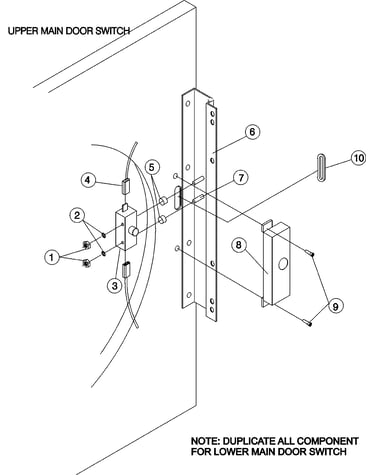

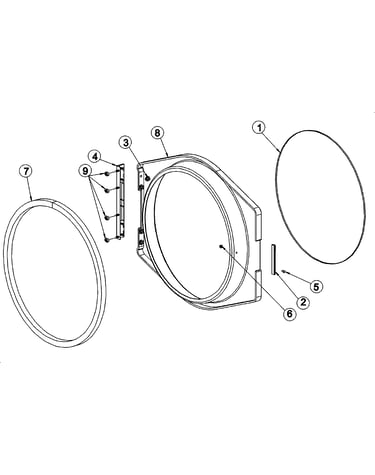

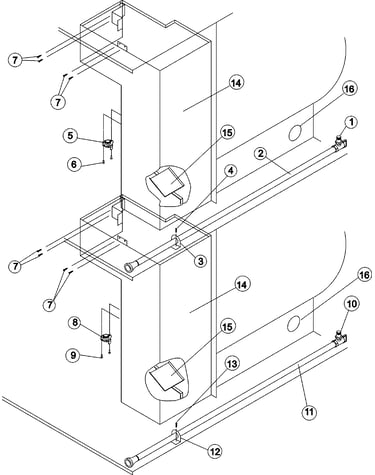

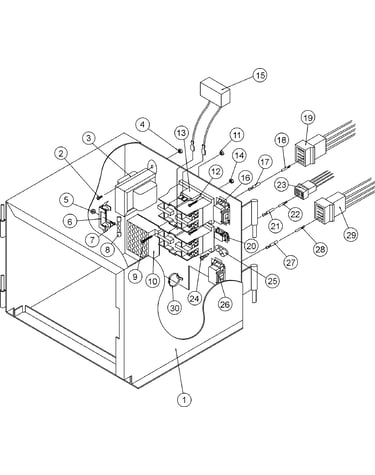

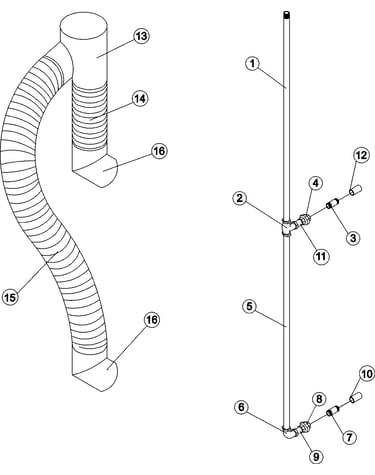

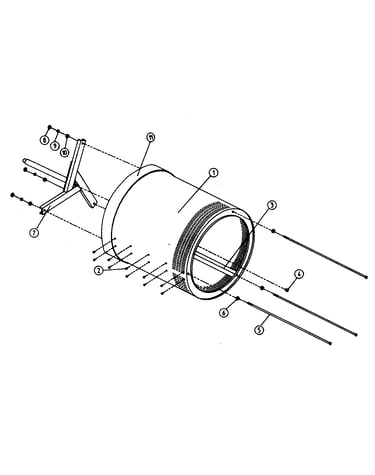

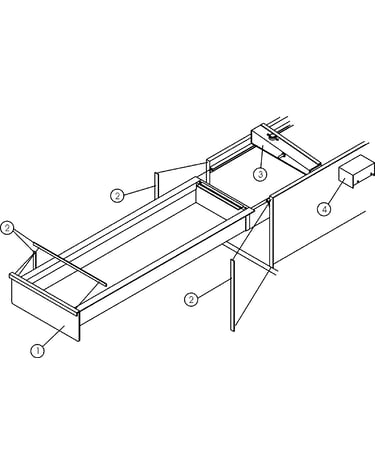

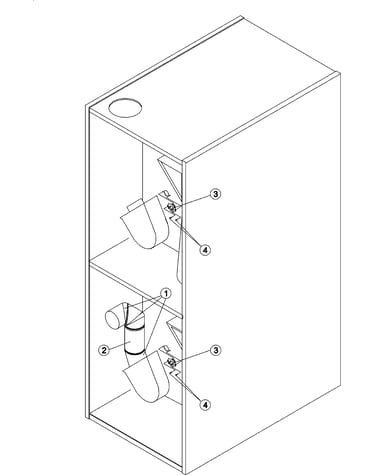

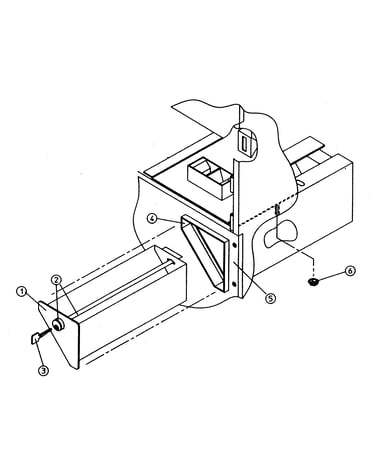

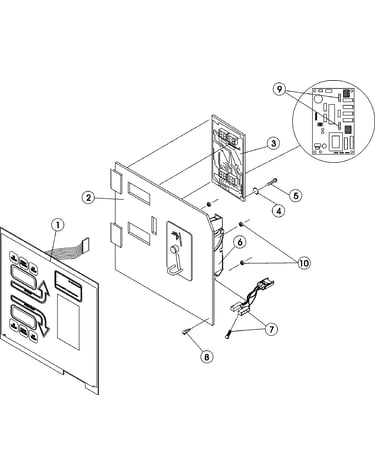

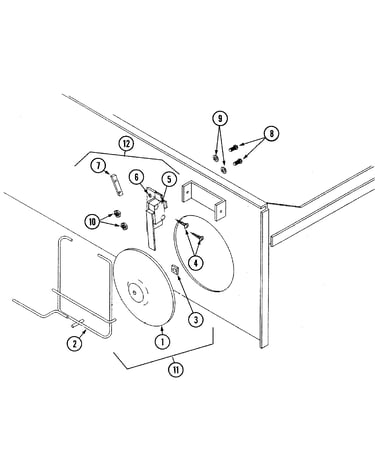

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 261 parts  |
Housing (8 Pin) A137030
#29

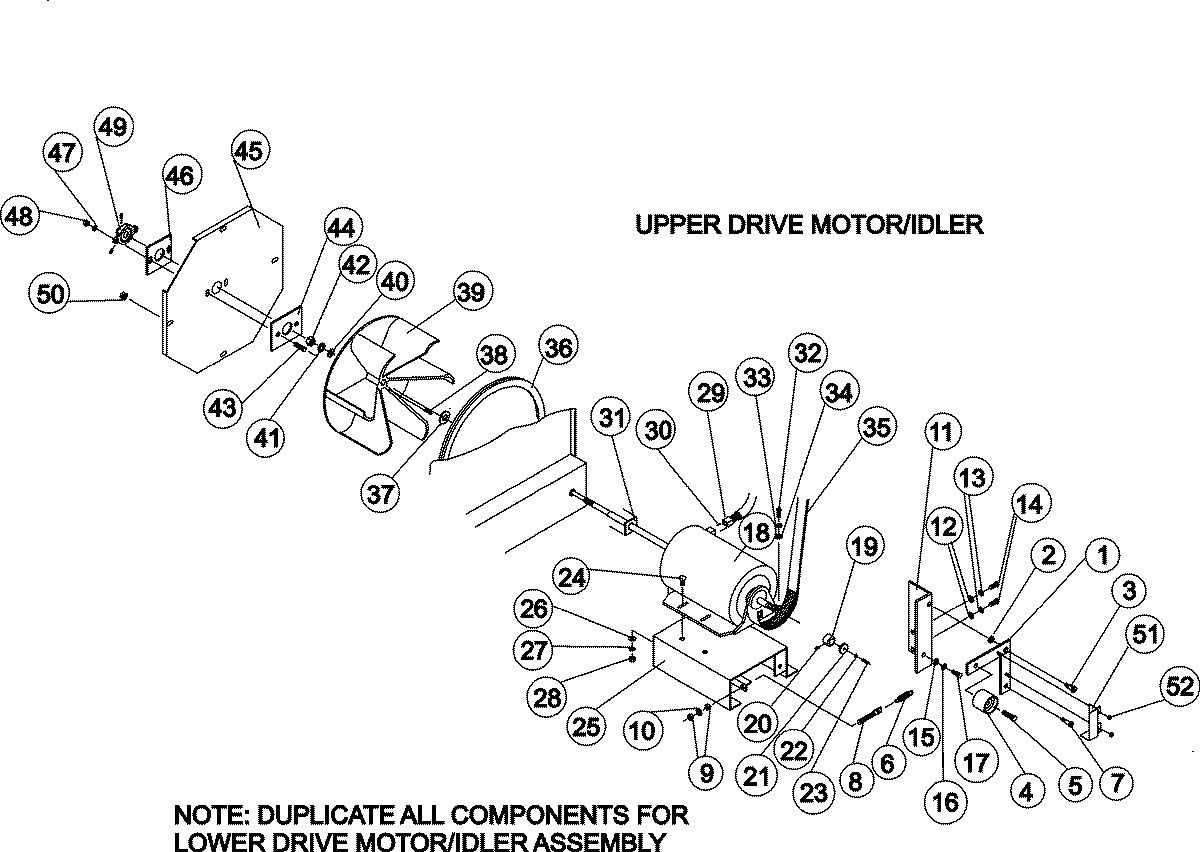

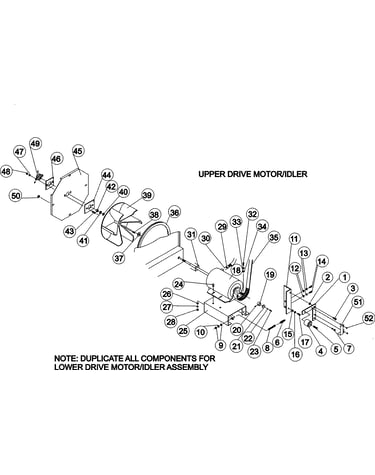

Motor/idler assemblies diagram

Housing (8 pin)

Part #A137030

The manufacturer no longer makes this part, and there's no substitute part

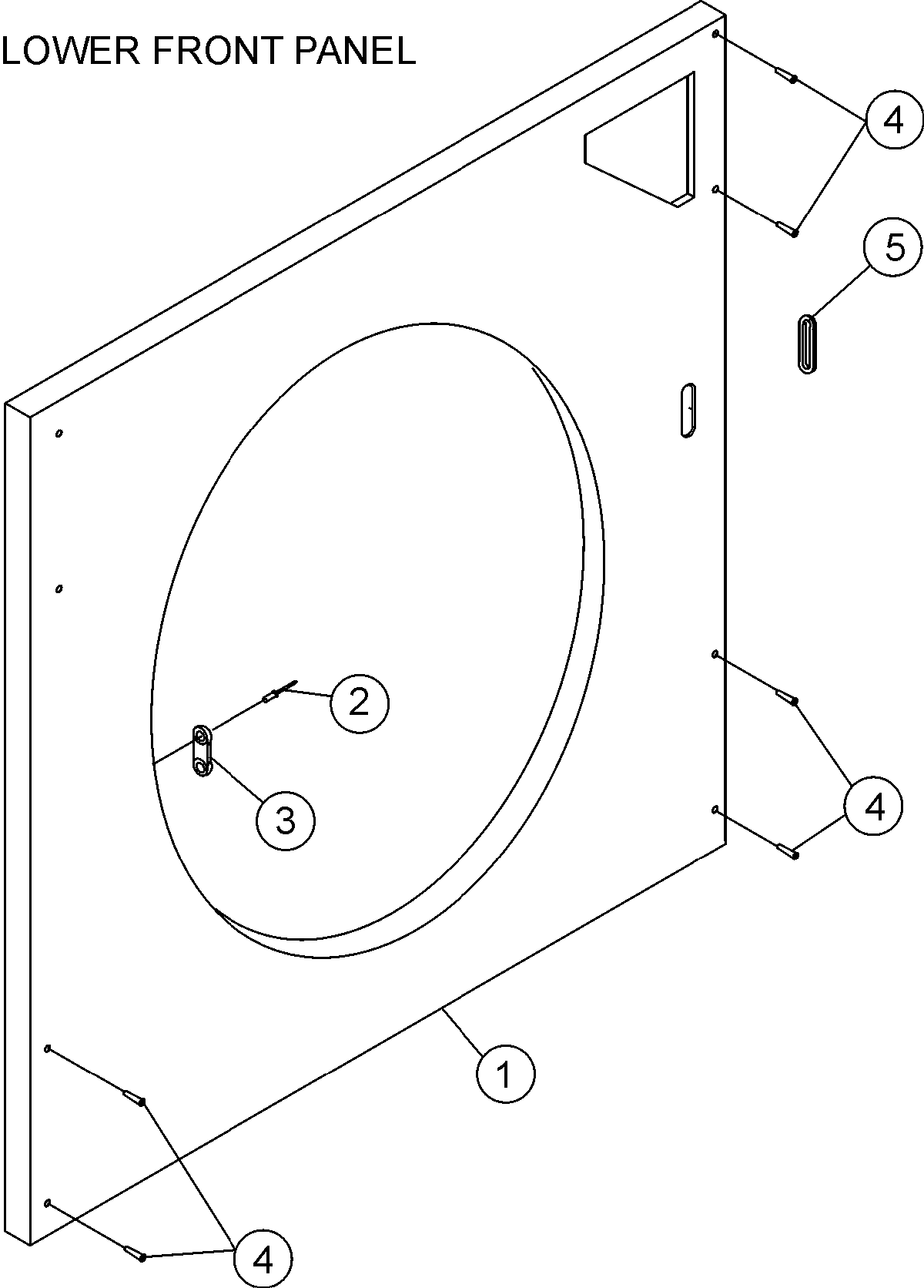

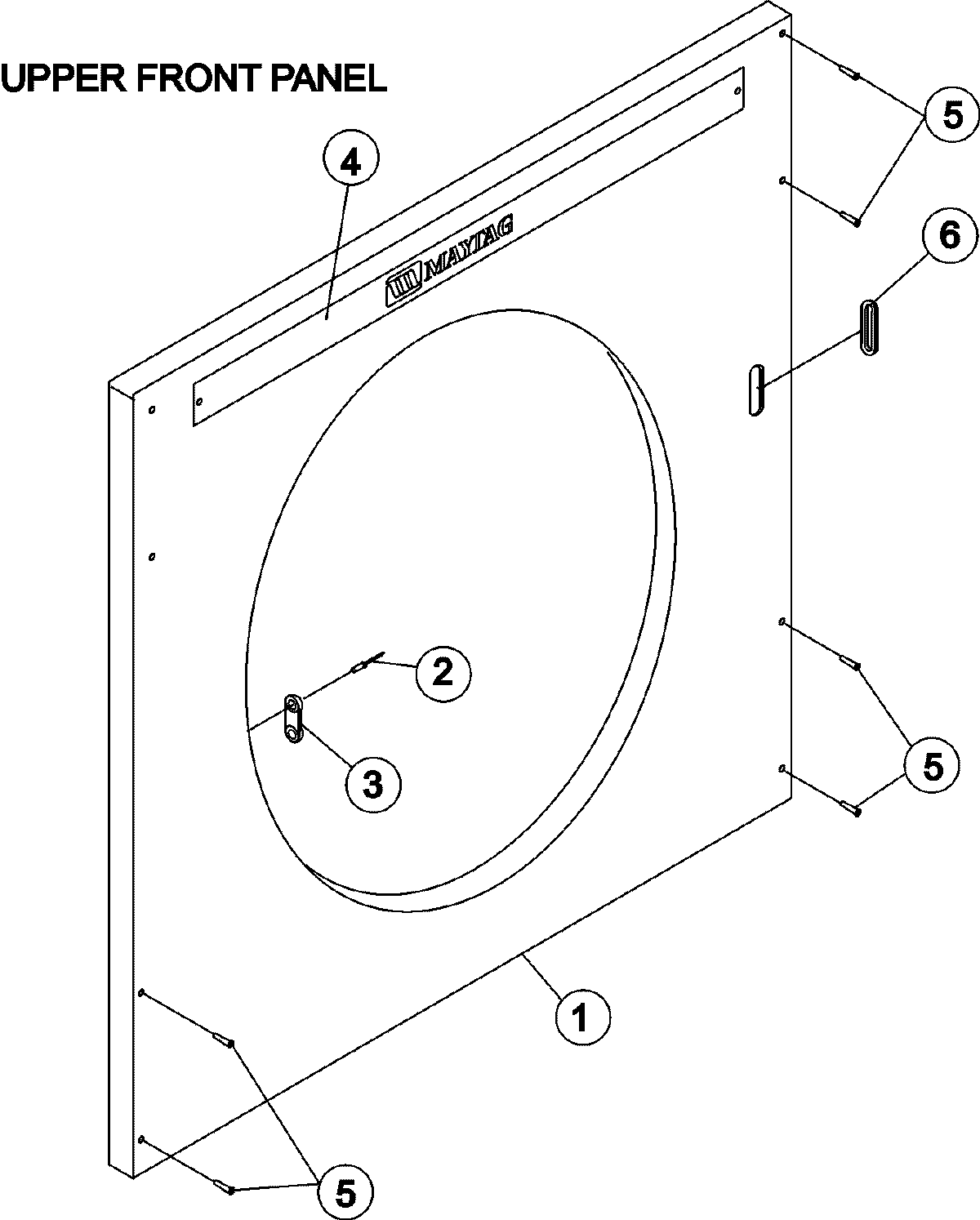

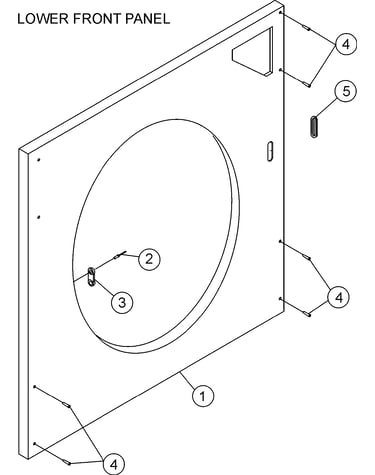

Front Panel, Lower Ss A883488
Front panel, lower ss

Part #A883488

The manufacturer no longer makes this part, and there's no substitute part

Manifold, Single Port A141225
#6

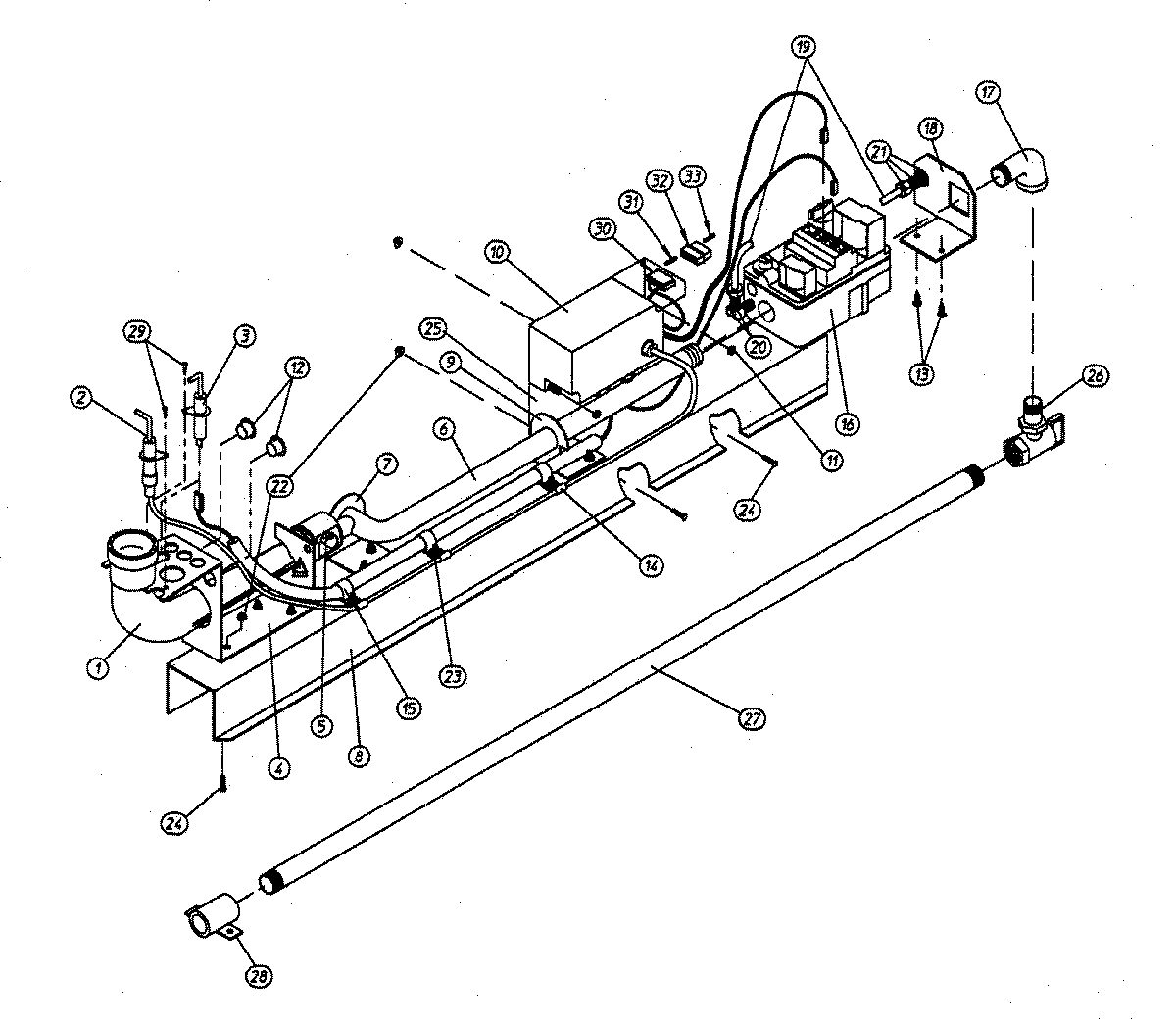

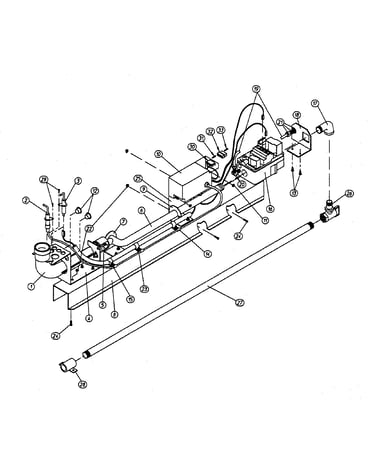

Gas train assembly diagram

Manifold, single port

Part #A141225

The manufacturer no longer makes this part, and there's no substitute part

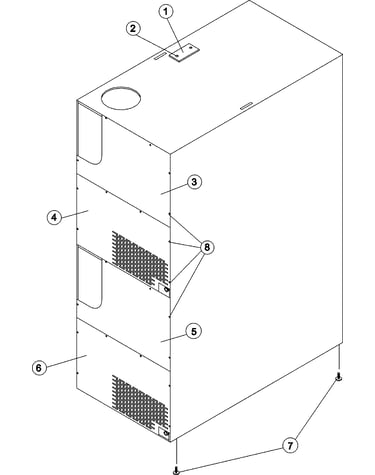

Top & Bottom Lower Guard A314405
Top & bottom lower guard

Part #A314405

The manufacturer no longer makes this part, and there's no substitute part

Bearing Backup Plate Assy. A852104
#44A

Motor/idler assemblies diagram

Bearing backup plate assy.

Part #A852104

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket, Ignition Dsi A815974
#25

Gas train assembly diagram

Mounting bracket, ignition dsi

Part #A815974

The manufacturer no longer makes this part, and there's no substitute part

Idler Angle A850135
#11

Motor/idler assemblies diagram

Idler angle

Part #A850135

The manufacturer no longer makes this part, and there's no substitute part

Bearing, Pillow Block W/sensor A880779
#5

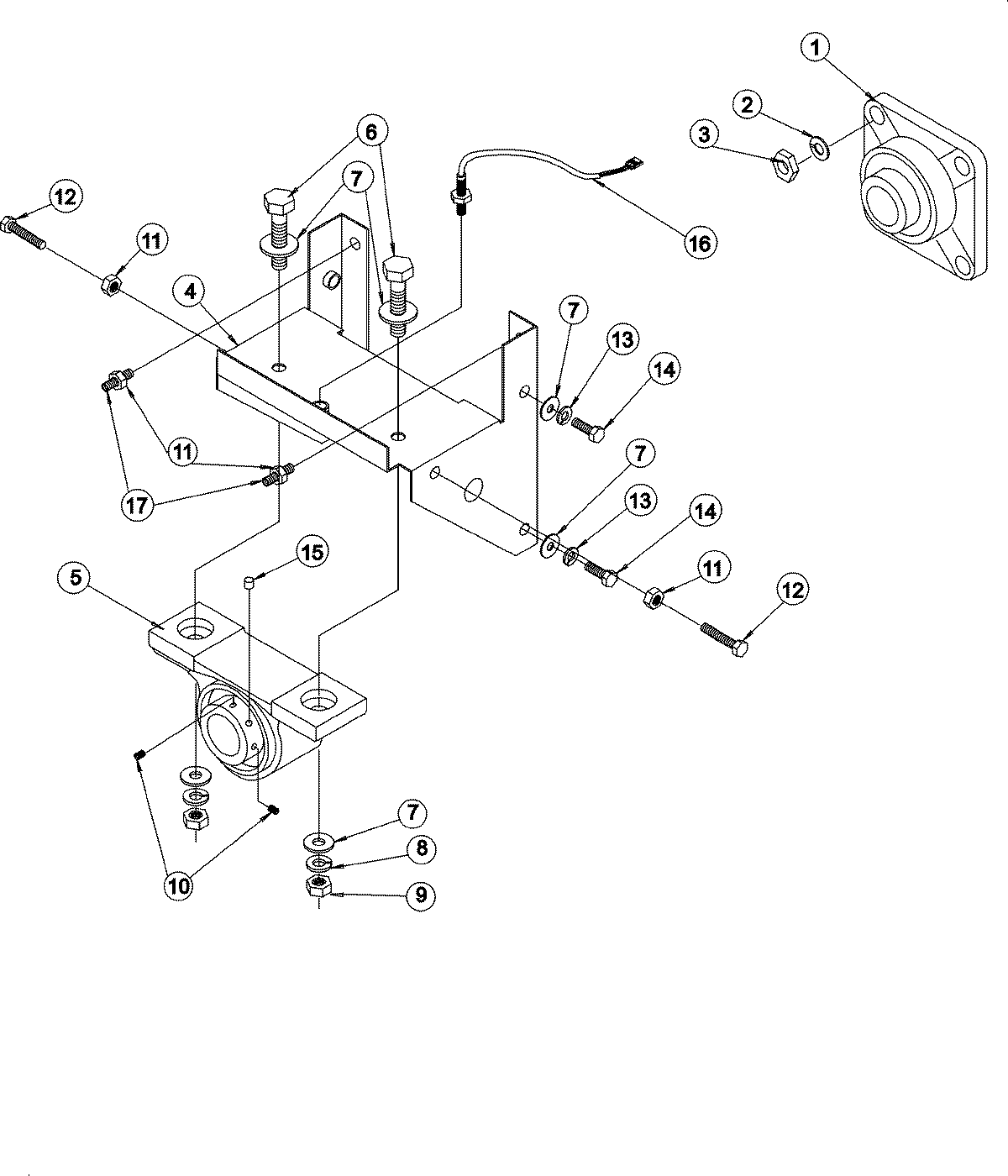

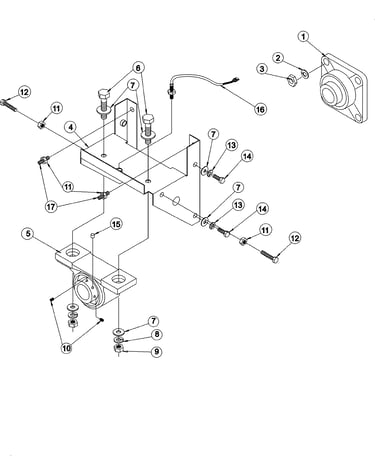

Tumbler bearing assembly diagram

Bearing, pillow block w/sensor

Part #A880779

The manufacturer no longer makes this part, and there's no substitute part

Manometer-measure Gas Pressure A112804
#13

Additional parts available diagram

Manometer-measure gas pressure

Part #A112804

The manufacturer no longer makes this part, and there's no substitute part

Screw (no.10-32 X 1/2`` Ph Round A150300
Screw (no.10-32 x 1/2`` ph round

Part #A150300

The manufacturer no longer makes this part, and there's no substitute part
