Kenmore
Toaster Oven

Model # 10082005 Official Kenmore toaster oven

Here are the diagrams and repair parts for Official Kenmore 10082005 toaster oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Lower Heat Element 000509491
#5A

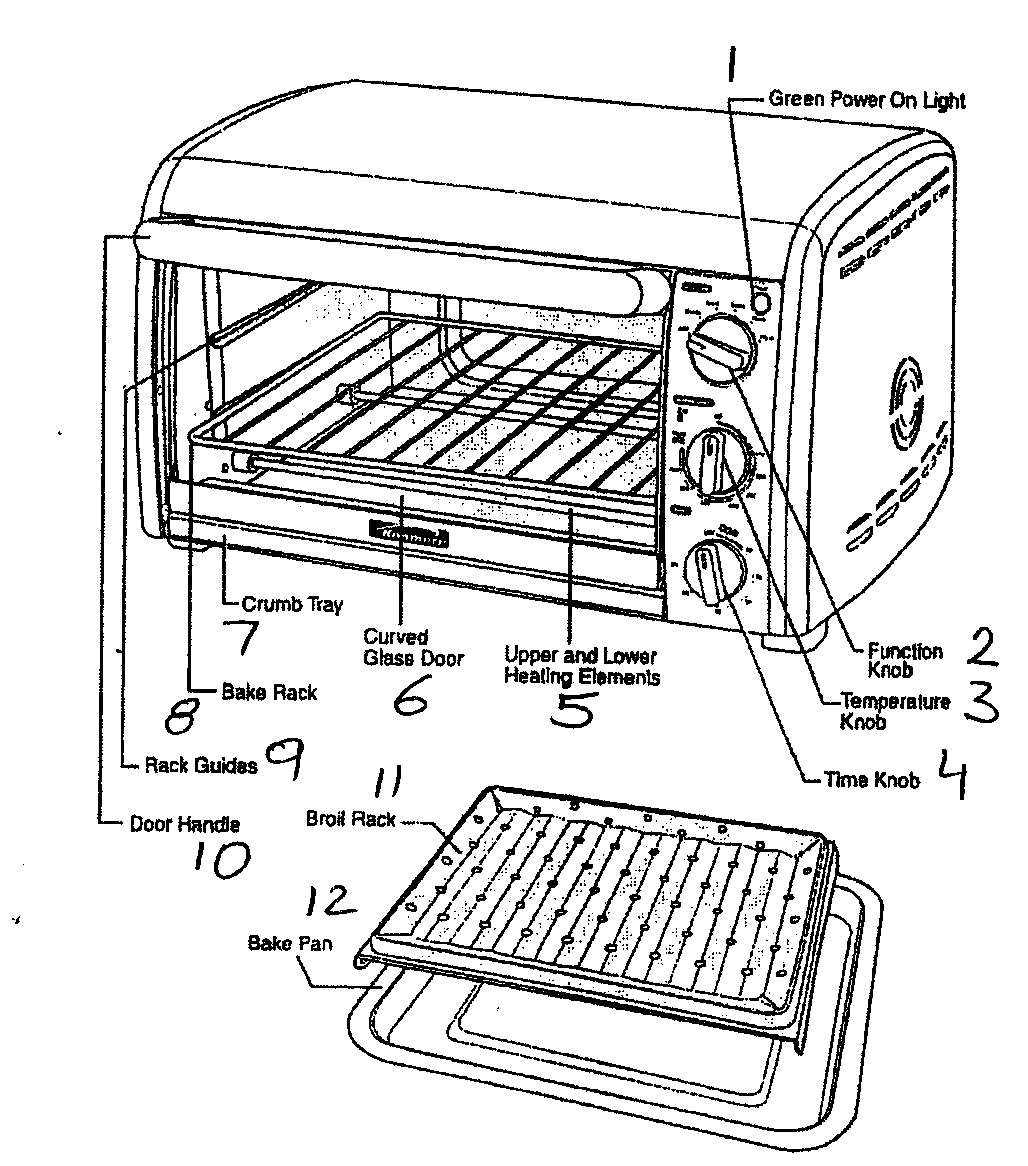

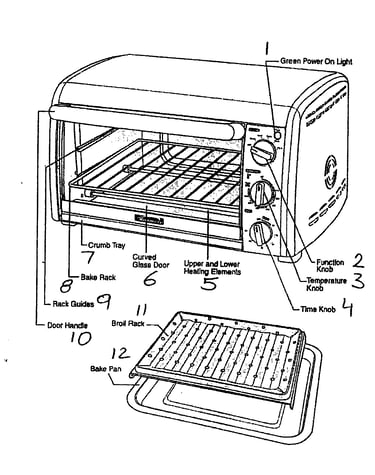

Cabinet parts diagram

Lower heat element

Part #000509491

The manufacturer no longer makes this part, and there's no substitute part

Toaster Oven Bake Rack 202300112
#8

Cabinet parts diagram

Toaster oven bake rack

Part #202300112

The manufacturer no longer makes this part, and there's no substitute part

Toaster Oven Crumb Tray 202300093
#7

Cabinet parts diagram

Toaster oven crumb tray

Part #202300093

The manufacturer no longer makes this part, and there's no substitute part

Toaster Oven Upper Element 000509481
#5

Cabinet parts diagram

Toaster oven upper element

Part #000509481

The manufacturer no longer makes this part, and there's no substitute part

Toaster Oven Broil Rack 202252681
#11

Cabinet parts diagram

Toaster oven broil rack

Part #202252681

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual OM-80005
#NI

Cabinet parts diagram

Owner's manual

Part #OM-80005

The manufacturer no longer makes this part, and there's no substitute part

Bake Pan 202286583
#12

Cabinet parts diagram

Bake pan

Part #202286583

The manufacturer no longer makes this part, and there's no substitute part
