Model # FAX1350M Official Brother fax machine

Here are the diagrams and repair parts for Official Brother FAX1350M fax machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Label 2, Tfe/templates/s/t/communications/help Files, For Nb-60/nb-80c Nsp N/P
Label 2, tfe/templates/s/t/communications/help files, for nb-60/nb-80c nsp

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Gear UF6024000
#9

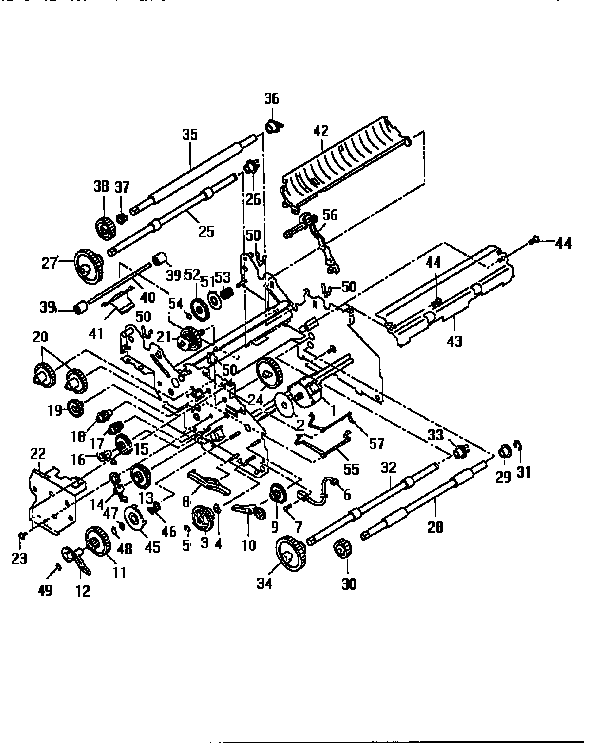

Main frame attachment diagram

Gear

Part #UF6024000

The manufacturer no longer makes this part, and there's no substitute part

Sensor UG3016001
#6

Main frame attachment diagram

Sensor

Part #UG3016001

The manufacturer no longer makes this part, and there's no substitute part

Document UF6279001
#33-9

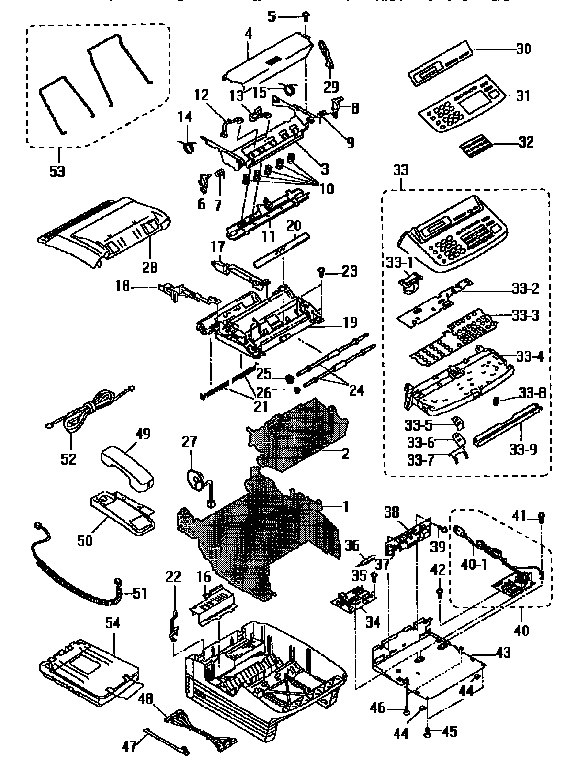

Cabinet assembly diagram

Document

Part #UF6279001

The manufacturer no longer makes this part, and there's no substitute part

Plate UF6067001
#51

Main frame attachment diagram

Plate

Part #UF6067001

The manufacturer no longer makes this part, and there's no substitute part

Handset UF6400003
#49B

Cabinet assembly diagram

Handset

Part #UF6400003

The manufacturer no longer makes this part, and there's no substitute part

Paper Cssett UF6300003
#54B

Cabinet assembly diagram

Paper cssett

Part #UF6300003

The manufacturer no longer makes this part, and there's no substitute part

Holder UF6108002
#50A

Cabinet assembly diagram

Holder

Part #UF6108002

The manufacturer no longer makes this part, and there's no substitute part

Gear UF6037000
#17

Main frame attachment diagram

Gear

Part #UF6037000

The manufacturer no longer makes this part, and there's no substitute part

Lock Lever UF6087001
#8

Cabinet assembly diagram

Lock lever

Part #UF6087001

The manufacturer no longer makes this part, and there's no substitute part
