Model # 18A-C06-734 Official Ryobi electric lawn mower

Here are the diagrams and repair parts for Official Ryobi 18A-C06-734 electric lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Lawn Vacuum Hose Handle Plug 720-0369
#3

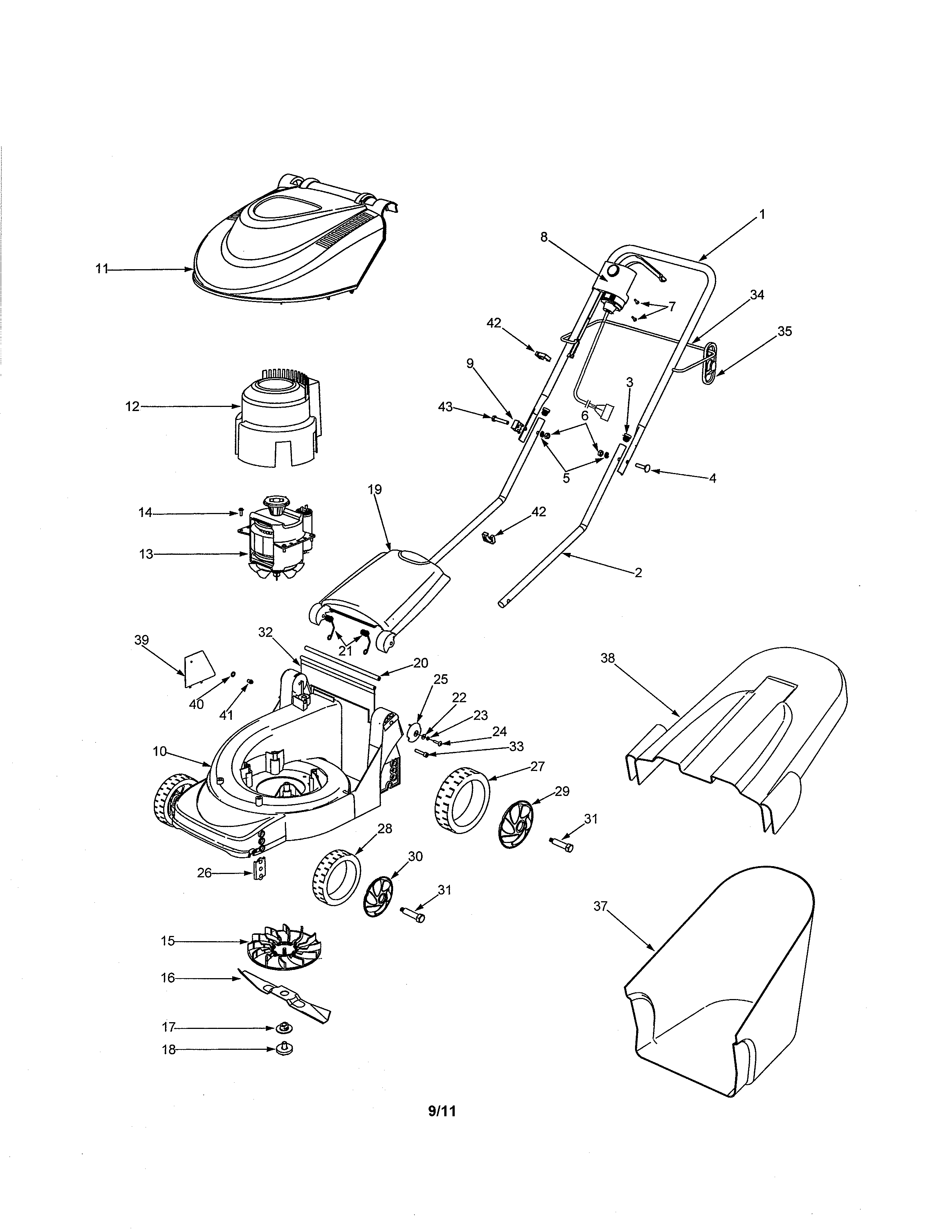

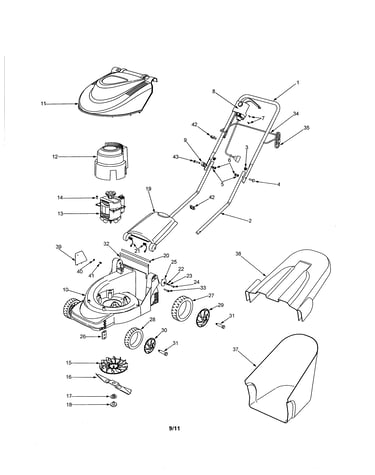

Electric mower diagram

Lawn vacuum hose handle plug

Part #720-0369

$22.46
In Stock
Wheel 734-1885-0637
#28

Electric mower diagram

Wheel

Part #734-1885-0637

Replaced by #734-04201

?
Manufacturer substitution
This part replaces 734-1885-0637. Substitute parts can look different from the original.
$52.37
In Stock
Restraint-co 726-0368-0637
#35

Electric mower diagram

Restraint-co

Part #726-0368-0637

Replaced by #726-0368

?
Manufacturer substitution
This part replaces 726-0368-0637. Substitute parts can look different from the original.
$7.98
In Stock
Lawn Mower Housing 731-2421-0638
#10

Electric mower diagram

Lawn mower housing

Part #731-2421-0638

The manufacturer no longer makes this part, and there's no substitute part

Cable Bracket 731-2454
#42

Electric mower diagram

Cable bracket

Part #731-2454

The manufacturer no longer makes this part, and there's no substitute part

Axle Bolt 738-1031
#31

Electric mower diagram

Axle bolt

Part #738-1031

The manufacturer no longer makes this part, and there's no substitute part

Upper Handle 749-1042A
#1

Electric mower diagram

Upper handle

Part #749-1042A

The manufacturer no longer makes this part, and there's no substitute part

Rivet 3,2x 728-0286
#41

Electric mower diagram

Rivet 3,2x

Part #728-0286

The manufacturer no longer makes this part, and there's no substitute part

Screw 710-1764
#43

Electric mower diagram

Screw

Part #710-1764

The manufacturer no longer makes this part, and there's no substitute part

Blade Hub 631-0148
#15

Electric mower diagram

Blade hub

Part #631-0148

The manufacturer no longer makes this part, and there's no substitute part
