Model # D26676 TYPE 1 Official DeWalt planer

Here are the diagrams and repair parts for Official DeWalt D26676-TYPE-1 planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 65 parts |

#20

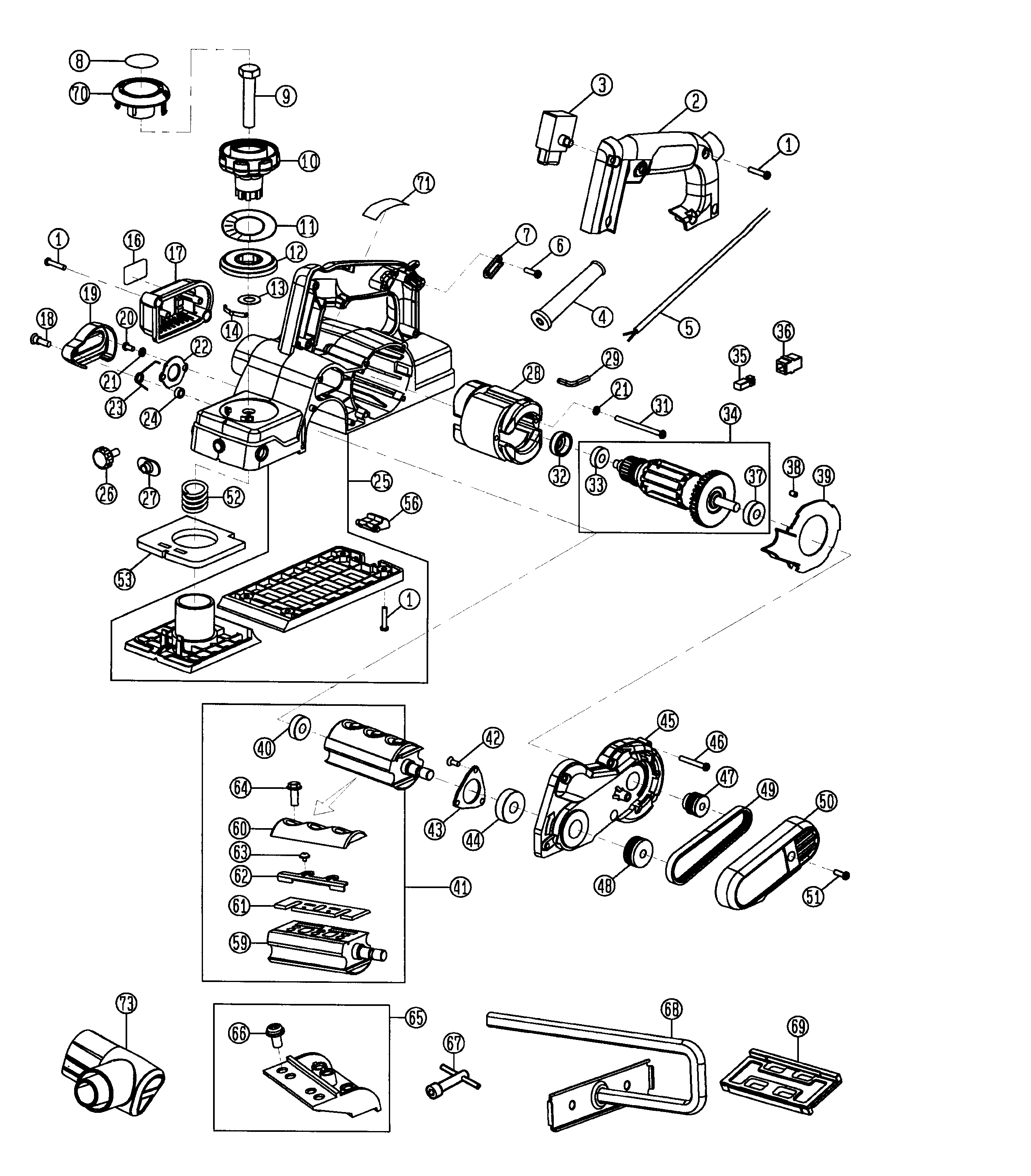

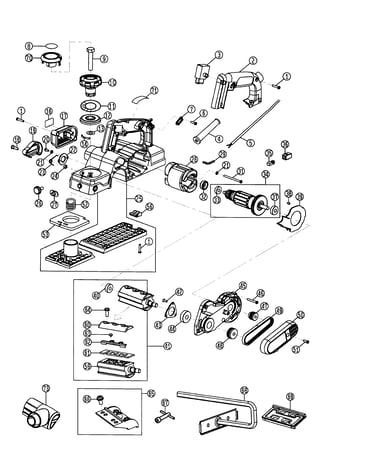

Planer assy diagram

Screw

Part #663267-00

The manufacturer no longer makes this part, and there's no substitute part

#48

Planer assy diagram

Shaft

Part #663301-00

The manufacturer no longer makes this part, and there's no substitute part

#60

Planer assy diagram

Blade

Part #663290-00

The manufacturer no longer makes this part, and there's no substitute part

#63

Planer assy diagram

Screw

Part #574524-00

The manufacturer no longer makes this part, and there's no substitute part

#23

Planer assy diagram

Spring

Part #663270-00

The manufacturer no longer makes this part, and there's no substitute part

Planer assy diagram

Cord clamp

Part #663247-00

The manufacturer no longer makes this part, and there's no substitute part

#41

Planer assy diagram

Cutter

Part #N039180

The manufacturer no longer makes this part, and there's no substitute part

#14

Planer assy diagram

Spring

Part #663254-00

The manufacturer no longer makes this part, and there's no substitute part

#33

Planer assy diagram

Ball bearing

Part #663280-00

The manufacturer no longer makes this part, and there's no substitute part

#64

Planer assy diagram

Bolt

Part #663294-00

The manufacturer no longer makes this part, and there's no substitute part
