GE
Reverse Osmosis System

Model # GXSV10C Official GE water system

Here are the diagrams and repair parts for Official GE GXSV10C water system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

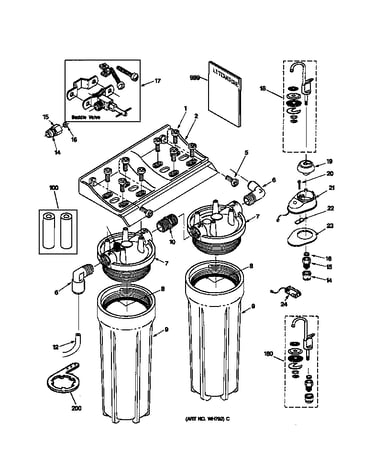

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Reverse Osmosis Water Filter WS35X10026
#100

Filter diagram

Reverse osmosis water filter

Part #WS35X10026

Replaced by #FXSVC

?
Manufacturer substitution
This part replaces WS35X10026. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$59.00 |
8% OFF Phone Price : $64.00
In Stock
Sump Wrench WX5X140
#200

Filter diagram

Sump wrench

Part #WX5X140

$22.59 |
18% OFF Phone Price : $27.59
In Stock
Use & Care/installation 49-5039
#999B

Filter diagram

Use & care/installation

Part #49-5039

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket WS28X10010
#2

Filter diagram

Mounting bracket

Part #WS28X10010

The manufacturer no longer makes this part, and there's no substitute part

Battery Holder WS6X10001
#24

Filter diagram

Battery holder

Part #WS6X10001

The manufacturer no longer makes this part, and there's no substitute part

Reverse Osmosis System Elbow WS22X10032
#6

Filter diagram

Reverse osmosis system elbow

Part #WS22X10032

The manufacturer no longer makes this part, and there's no substitute part

Screw #6-32 X 1 3/8" WS2X10007
#20

Filter diagram

Screw #6-32 x 1 3/8"

Part #WS2X10007

The manufacturer no longer makes this part, and there's no substitute part

Faucet WS15X10030
#18

Filter diagram

Faucet

Part #WS15X10030

The manufacturer no longer makes this part, and there's no substitute part

Screw #10-14 X 3/4" WS2X10001
#1

Filter diagram

Screw #10-14 x 3/4"

Part #WS2X10001

The manufacturer no longer makes this part, and there's no substitute part

Water Filtration System Filter Housing WS30X10002
#9

Filter diagram

Water filtration system filter housing

Part #WS30X10002

The manufacturer no longer makes this part, and there's no substitute part
