Miter Saw

Model # 3912 Official Bosch saw

Here are the diagrams and repair parts for Official Bosch 3912 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 161 parts  |
Pivot Bracket 2610967444
#44

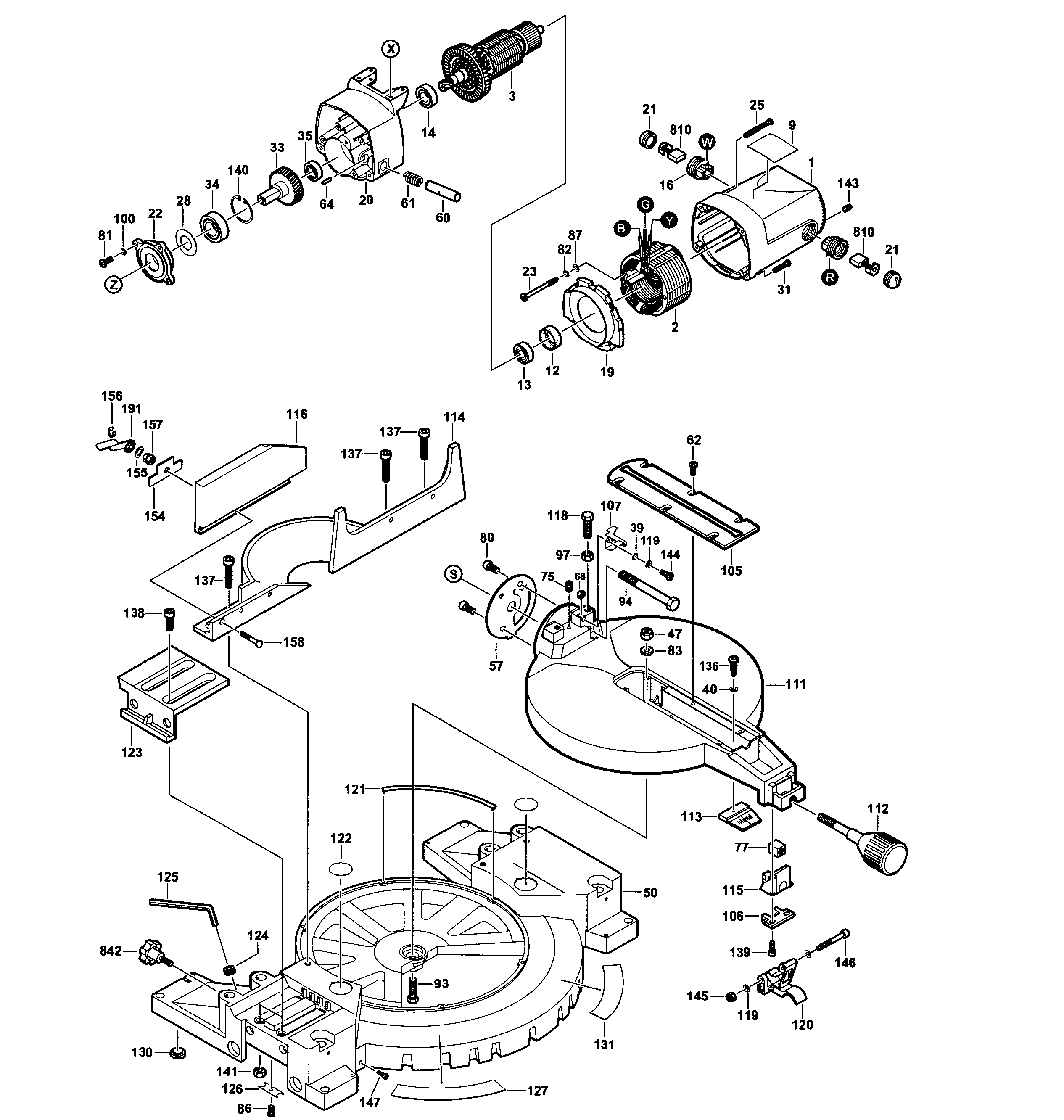

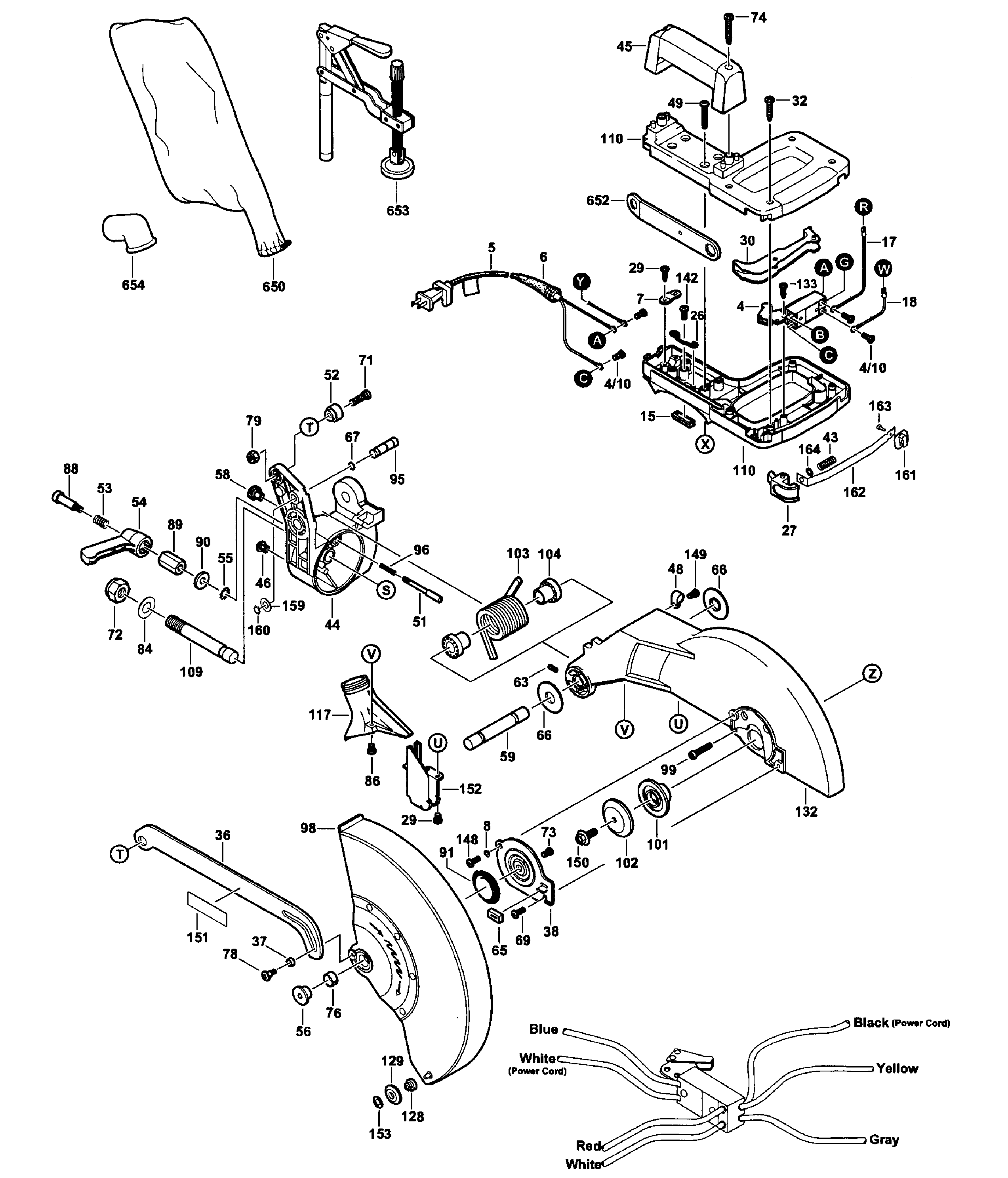

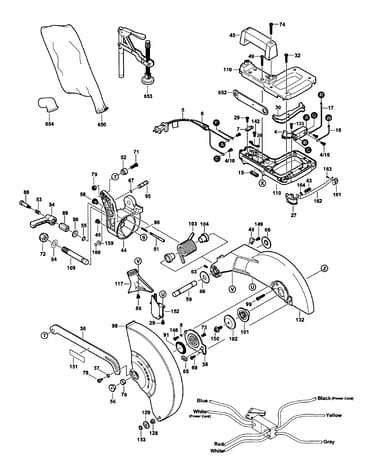

Main assy diagram

Pivot bracket

Part #2610967444

The manufacturer no longer makes this part, and there's no substitute part

Washer 2610355304
#87

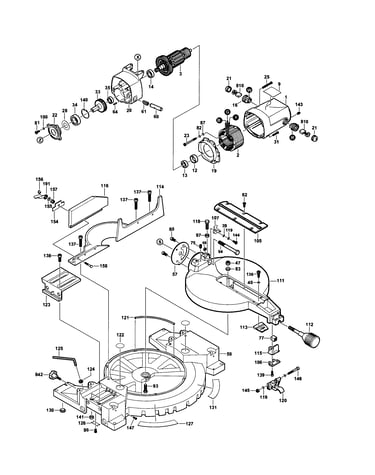

Motor assy diagram

Washer

Part #2610355304

The manufacturer no longer makes this part, and there's no substitute part

Linkage 2610992364
#162

Main assy diagram

Linkage

Part #2610992364

The manufacturer no longer makes this part, and there's no substitute part

Pin 2610910757
#51

Main assy diagram

Pin

Part #2610910757

The manufacturer no longer makes this part, and there's no substitute part

Armature 1 2610911476
#3

Motor assy diagram

Armature 1

Part #2610911476

The manufacturer no longer makes this part, and there's no substitute part

Knob 2610910822
#112

Motor assy diagram

Knob

Part #2610910822

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 2610911485
#12

Motor assy diagram

Sleeve

Part #2610911485

The manufacturer no longer makes this part, and there's no substitute part

Insert 2610990527
#105

Motor assy diagram

Insert

Part #2610990527

The manufacturer no longer makes this part, and there's no substitute part

Protector 2610911486
#15

Main assy diagram

Protector

Part #2610911486

The manufacturer no longer makes this part, and there's no substitute part

Spring 2610910765
#53

Main assy diagram

Spring

Part #2610910765

The manufacturer no longer makes this part, and there's no substitute part
