Model # 2596591 Official Kenmore vacuum seal 'n save

Here are the diagrams and repair parts for Official Kenmore 2596591 vacuum seal 'n save, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Pad, Sealing 1604-081
Pad, sealing

Part #1604-081

The manufacturer no longer makes this part, and there's no substitute part

Switch Contact Assy. 9003-282
#27

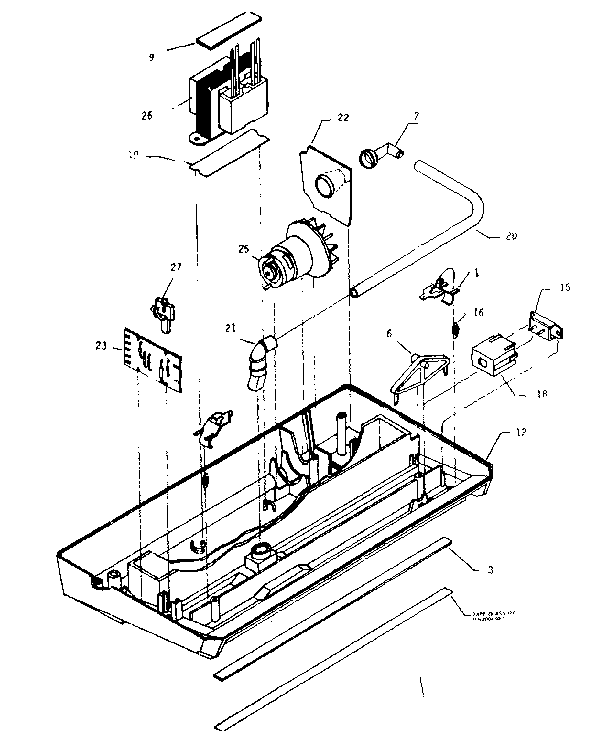

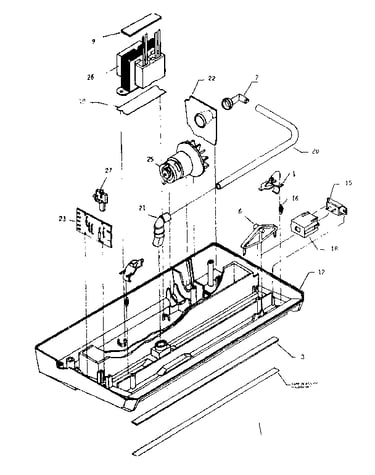

Motor assembly diagram

Switch contact assy.

Part #9003-282

The manufacturer no longer makes this part, and there's no substitute part

Insulator, Element 0901-111
#3

Motor assembly diagram

Insulator, element

Part #0901-111

The manufacturer no longer makes this part, and there's no substitute part

Blade & Holder Assy. 9003-235
#24

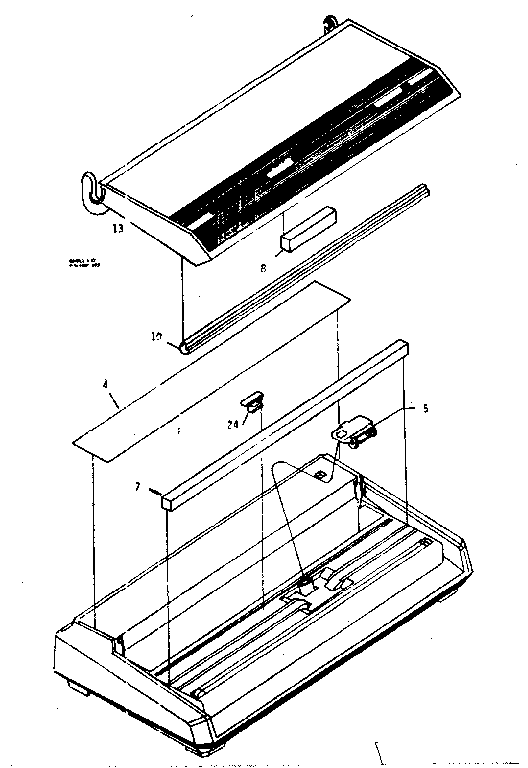

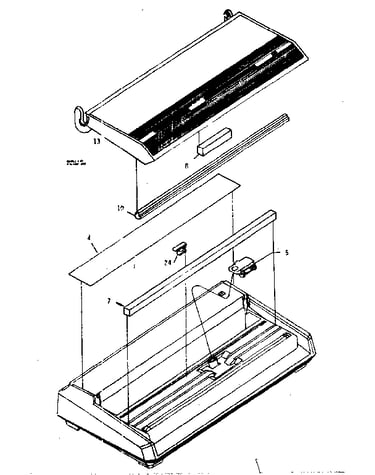

Shell lid assembly diagram

Blade & holder assy.

Part #9003-235

The manufacturer no longer makes this part, and there's no substitute part

Shell, Upper 1901-219
#12

Motor assembly diagram

Shell, upper

Part #1901-219

The manufacturer no longer makes this part, and there's no substitute part

Push Button Switch 1903-033
#15

Motor assembly diagram

Push button switch

Part #1903-033

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Element 0202-141
#1

Motor assembly diagram

Bracket, element

Part #0202-141

The manufacturer no longer makes this part, and there's no substitute part

Spring Switch 1904-075
#17

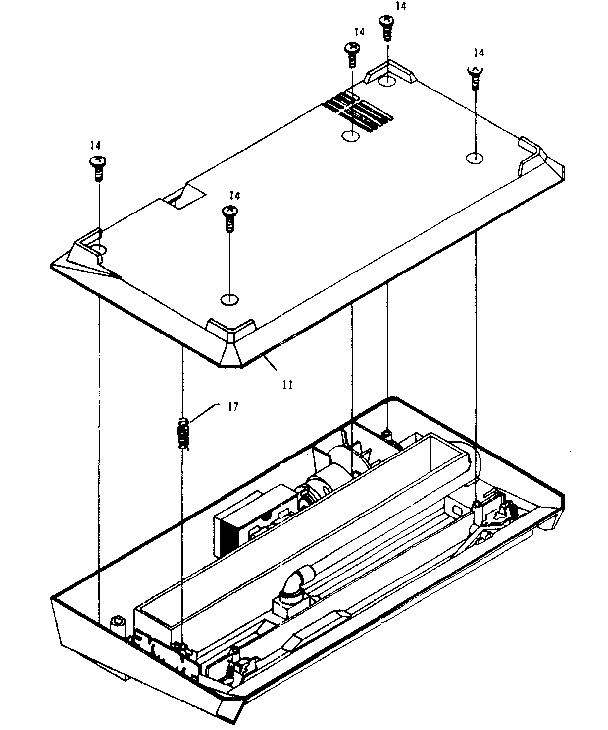

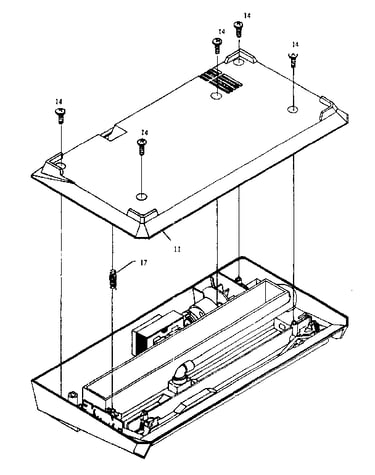

Lower shell assembly diagram

Spring switch

Part #1904-075

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 9003-239
#25

Motor assembly diagram

Motor assembly

Part #9003-239

The manufacturer no longer makes this part, and there's no substitute part

Tube, Vinyl Orifice 2001-056
#21

Motor assembly diagram

Tube, vinyl orifice

Part #2001-056

The manufacturer no longer makes this part, and there's no substitute part
