Model # HPL50 Official Ryobi hand planer

Here are the diagrams and repair parts for Official Ryobi HPL50 hand planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

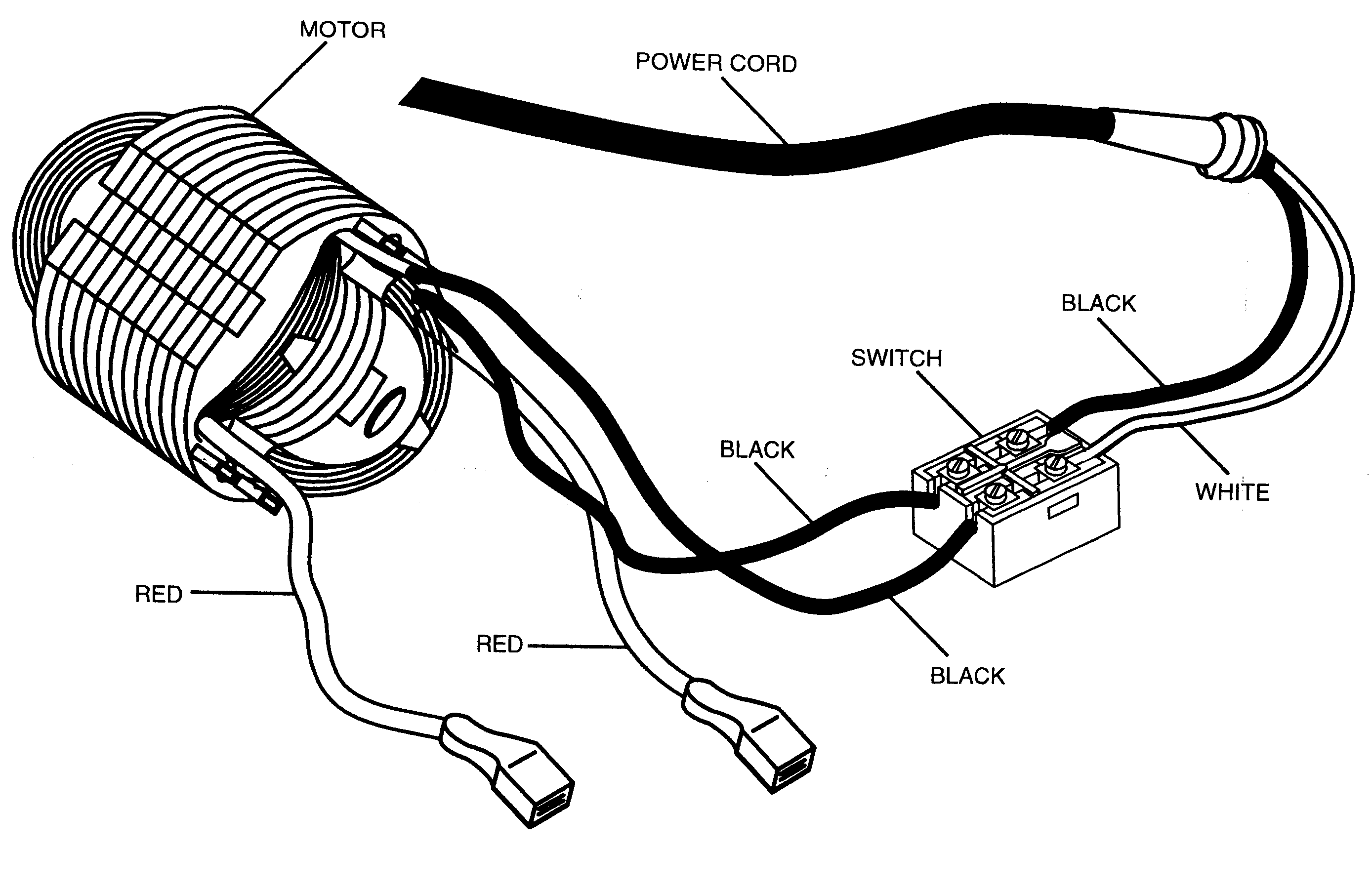

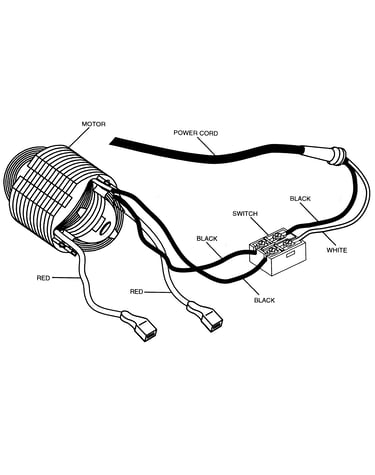

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Adj. Rod L17516
#2

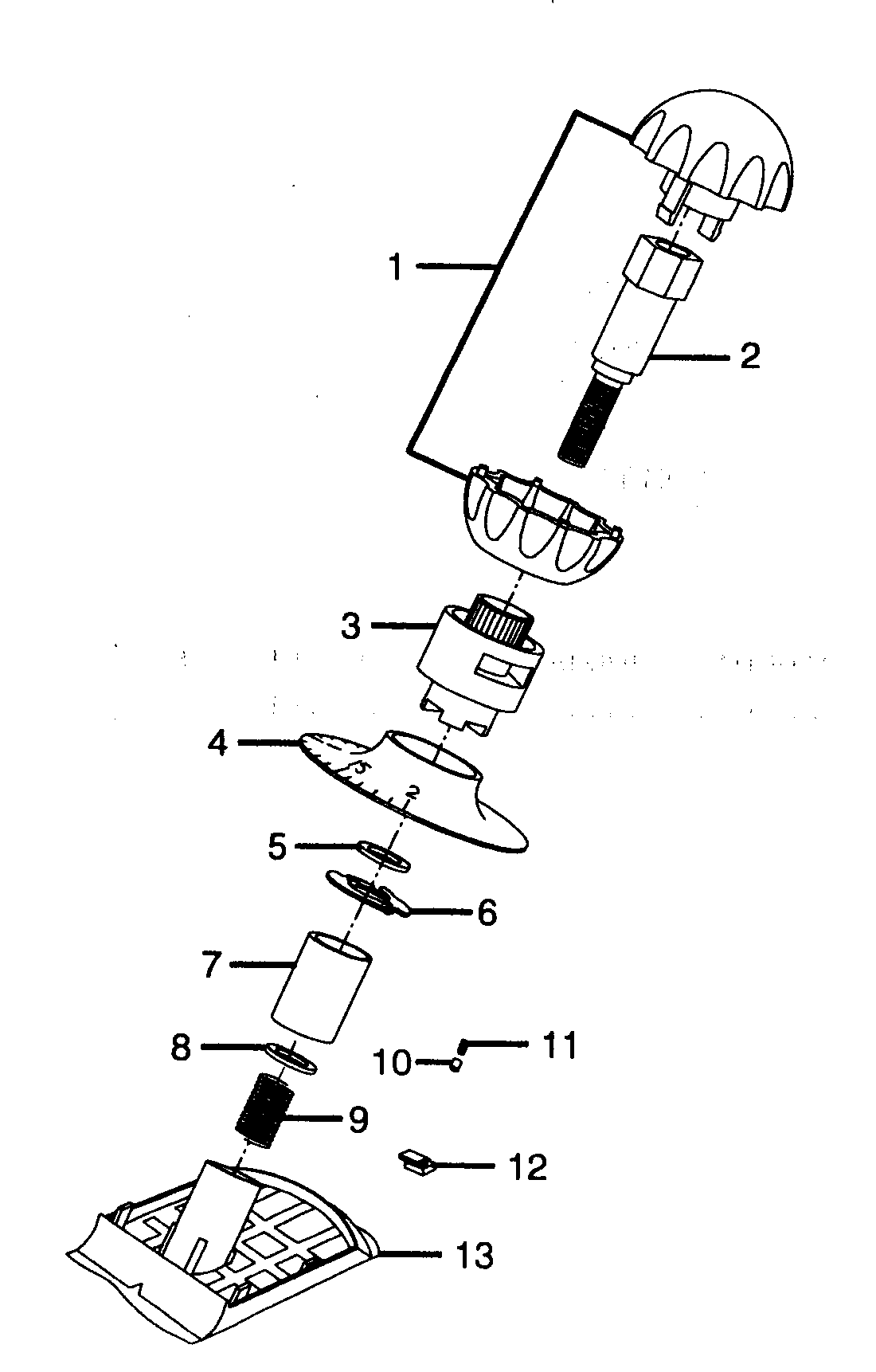

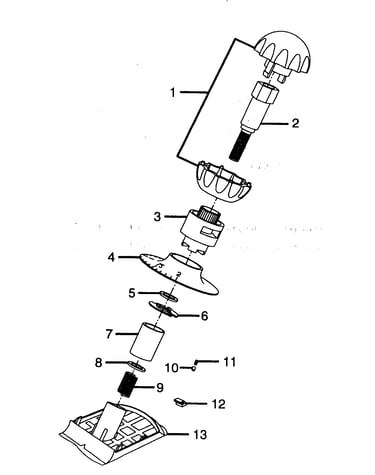

Knob assy diagram

Adj. rod

Part #L17516

The manufacturer no longer makes this part, and there's no substitute part

Nut HPL50K-33
#5

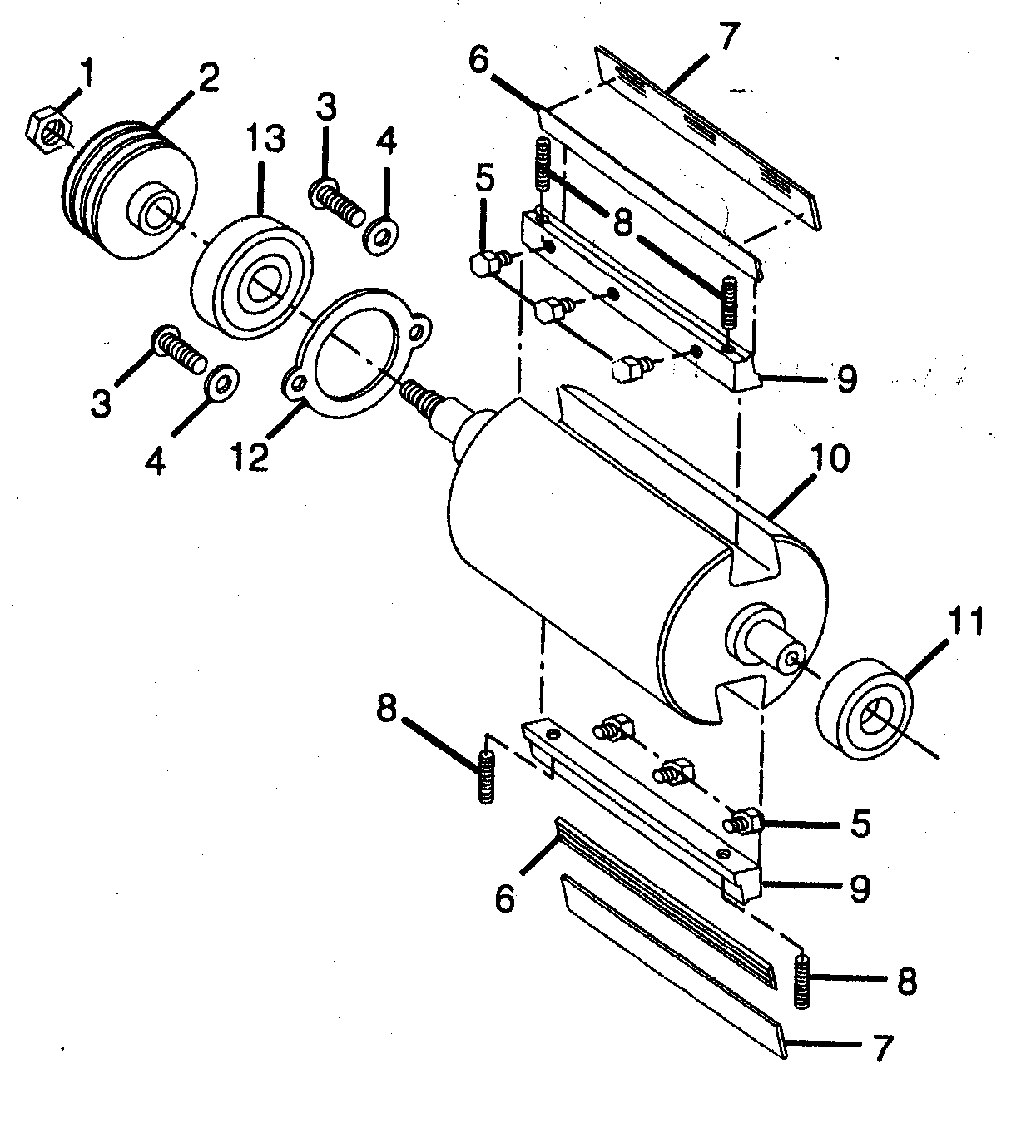

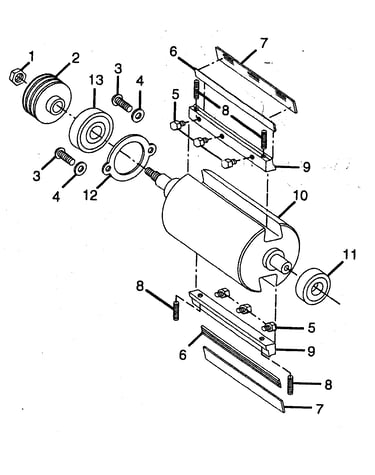

Blade assy diagram

Nut

Part #HPL50K-33

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 608z/p6x HPL50K-37
#3

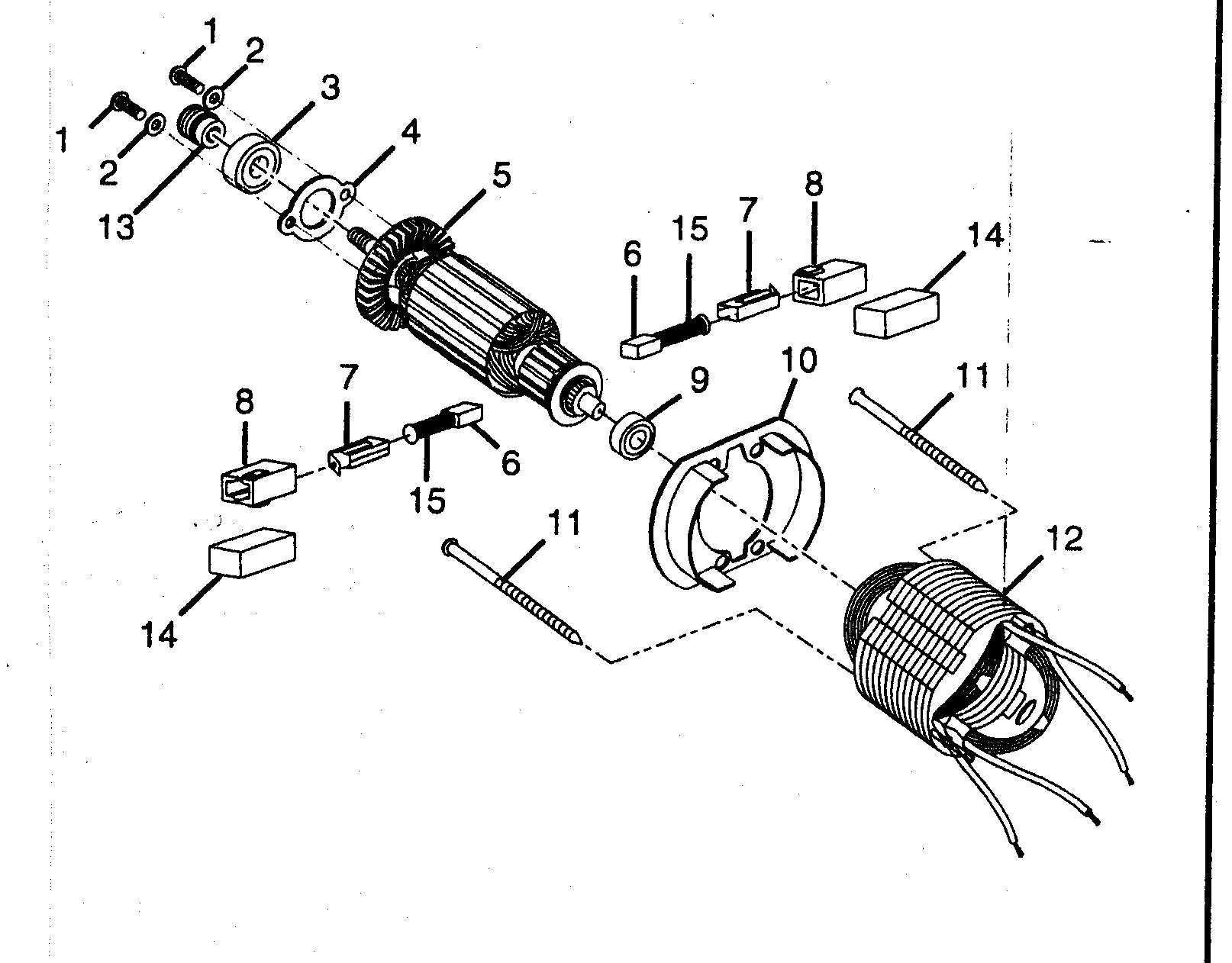

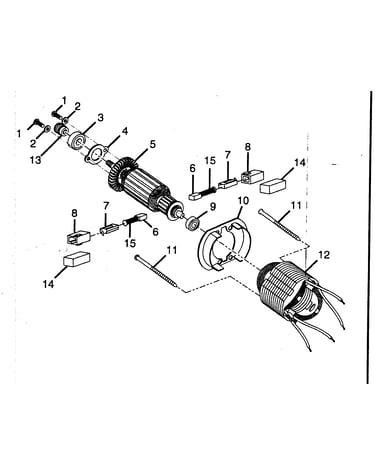

Motor assy diagram

Ball bearing 608z/p6x

Part #HPL50K-37

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate HPL50K01
#2

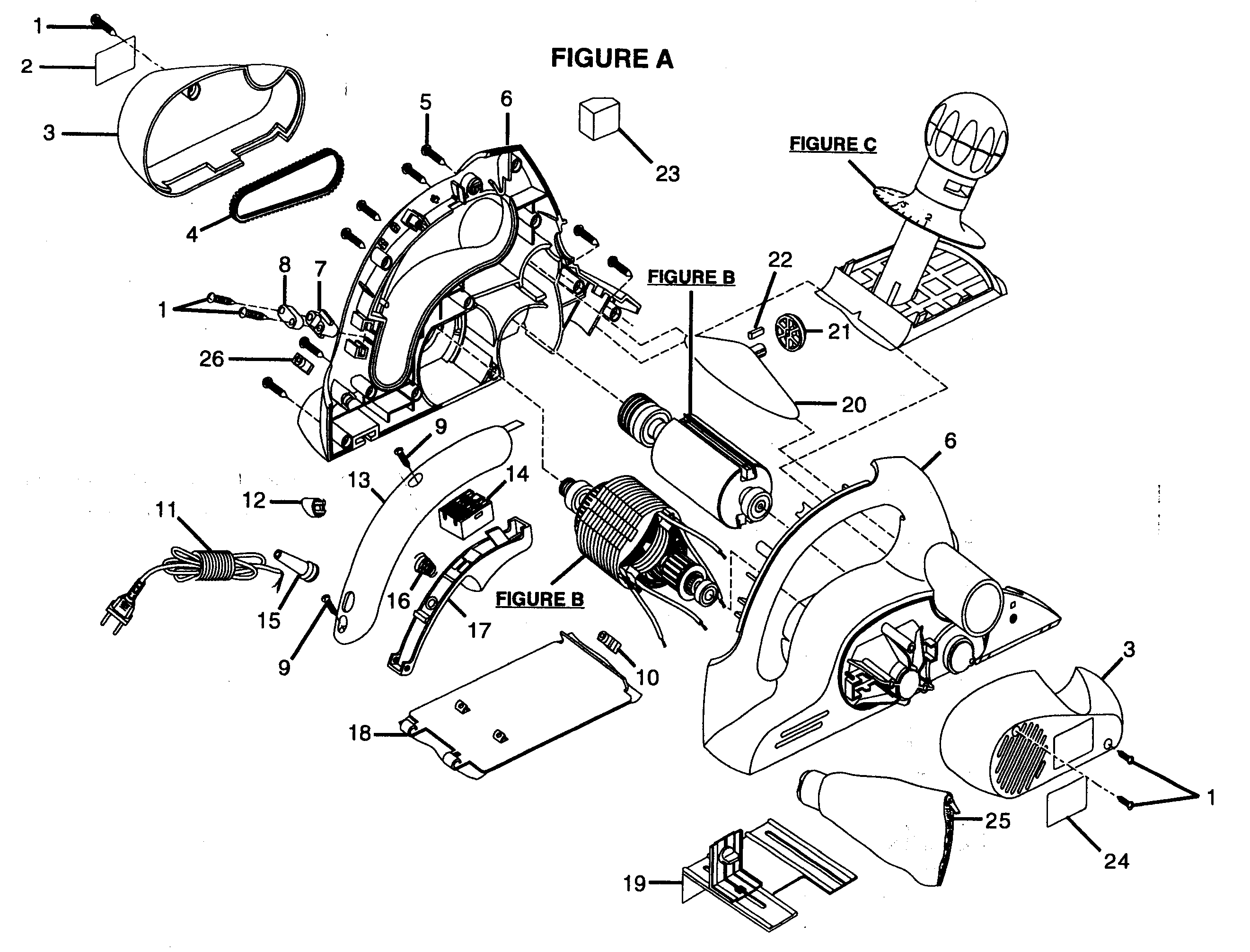

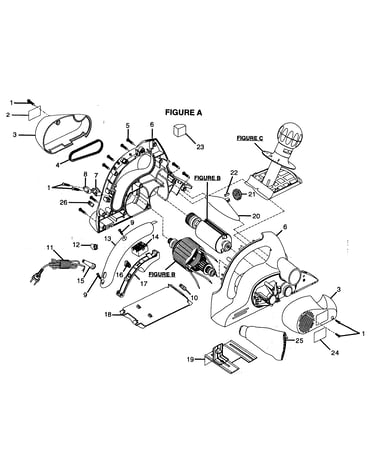

Case assy diagram

Logo plate

Part #HPL50K01

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly HPL50K-52
#3

Case assy diagram

Cover assembly

Part #HPL50K-52

The manufacturer no longer makes this part, and there's no substitute part

Depth Ind L17519
#4

Knob assy diagram

Depth ind

Part #L17519

The manufacturer no longer makes this part, and there's no substitute part

Brush Hold Down Block L17553
#14

Motor assy diagram

Brush hold down block

Part #L17553

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual L17514
#12

Knob assy diagram

Owner's manual

Part #L17514

The manufacturer no longer makes this part, and there's no substitute part

Carrying Case HPL50K14
#NI

Case assy diagram

Carrying case

Part #HPL50K14

The manufacturer no longer makes this part, and there's no substitute part

Belt HPL50K03
#4

Case assy diagram

Belt

Part #HPL50K03

The manufacturer no longer makes this part, and there's no substitute part
