Model # VWUS041BAB Official Vintec beverage center

Here are the diagrams and repair parts for Official Vintec VWUS041BAB beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

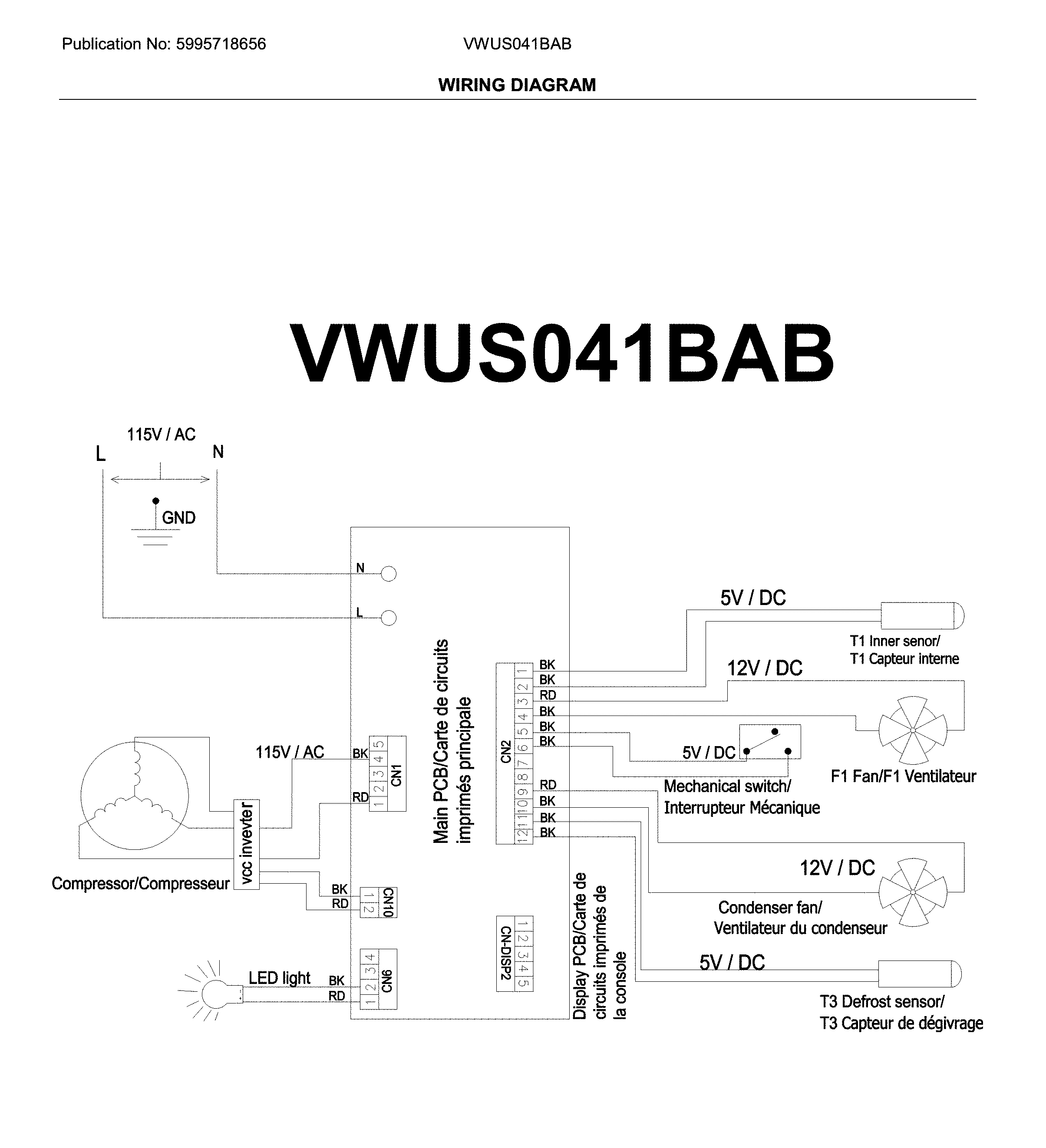

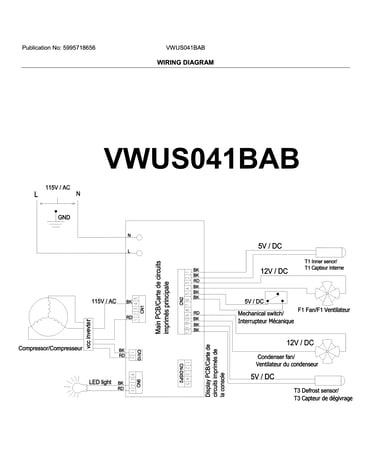

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 58 parts |

#48

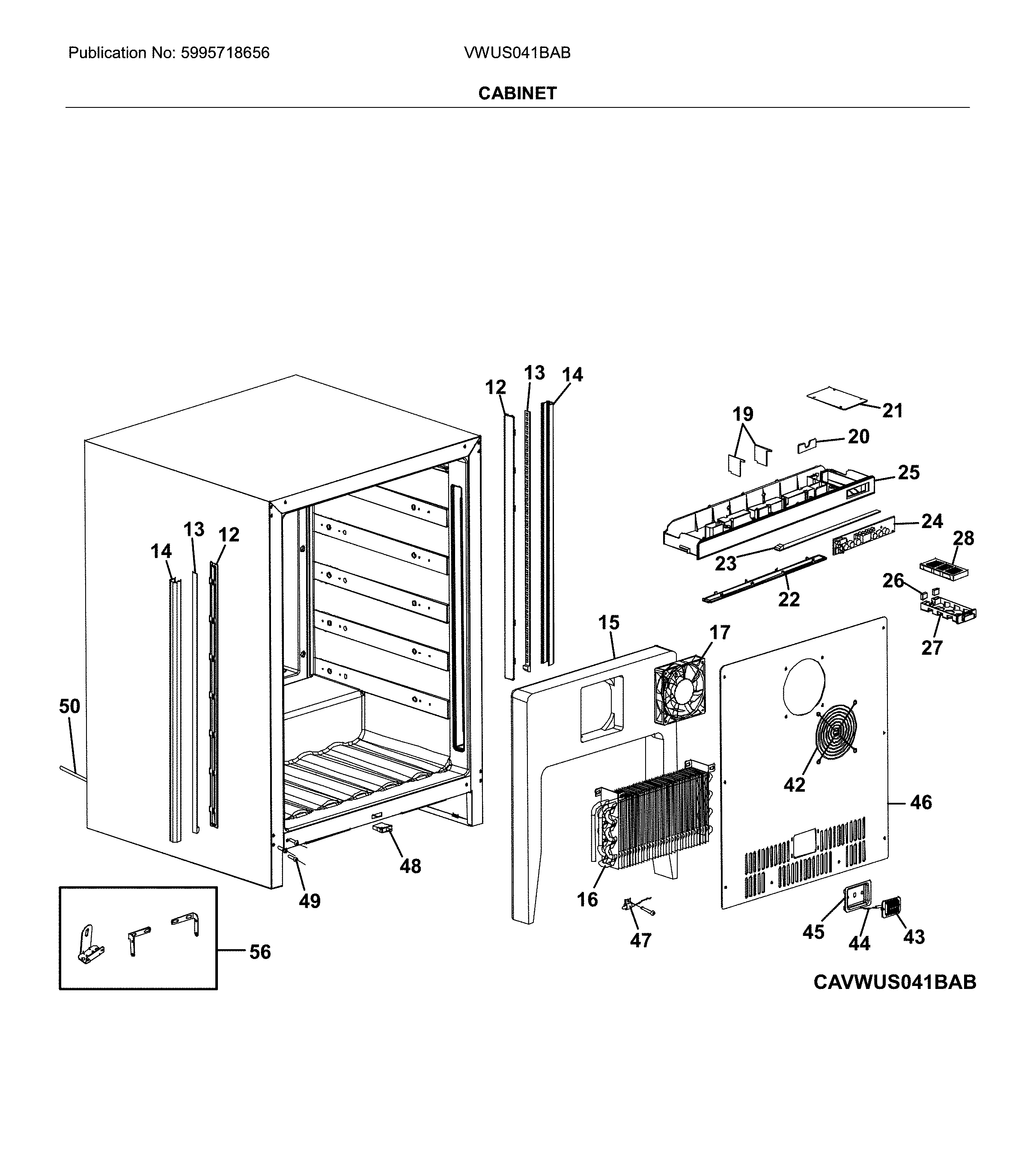

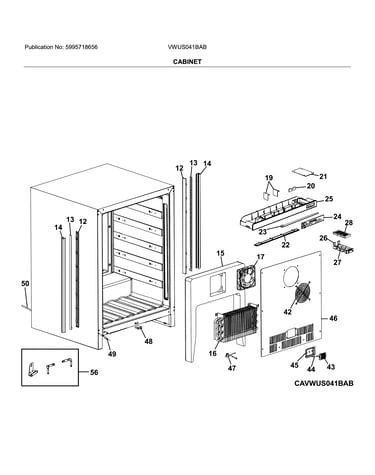

Cabinet diagram

Beverage cooler door switch

Part #5304522384

$12.62

In Stock

Qty

#50

Cabinet diagram

Tube,suction

Part #5304522386

$54.32

In Stock

Qty

#35

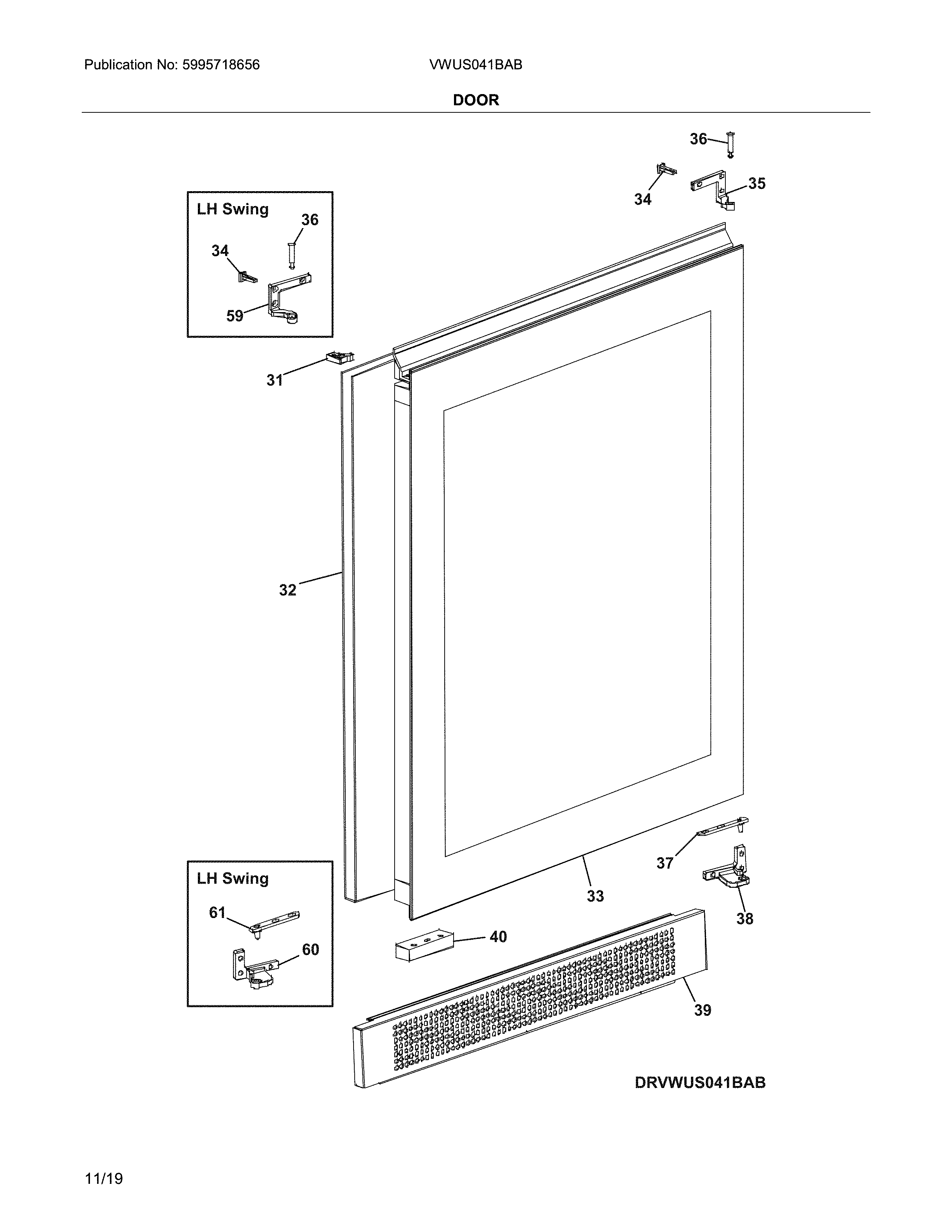

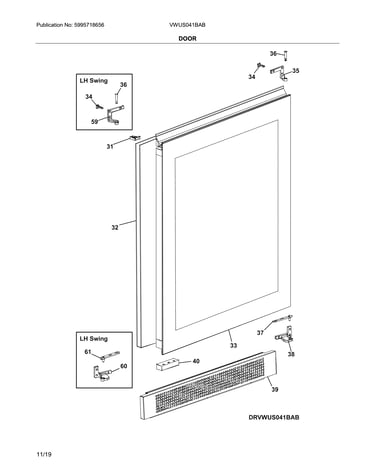

Door diagram

Hinge

Part #5304523211

$35.10

In Stock

Qty

#41

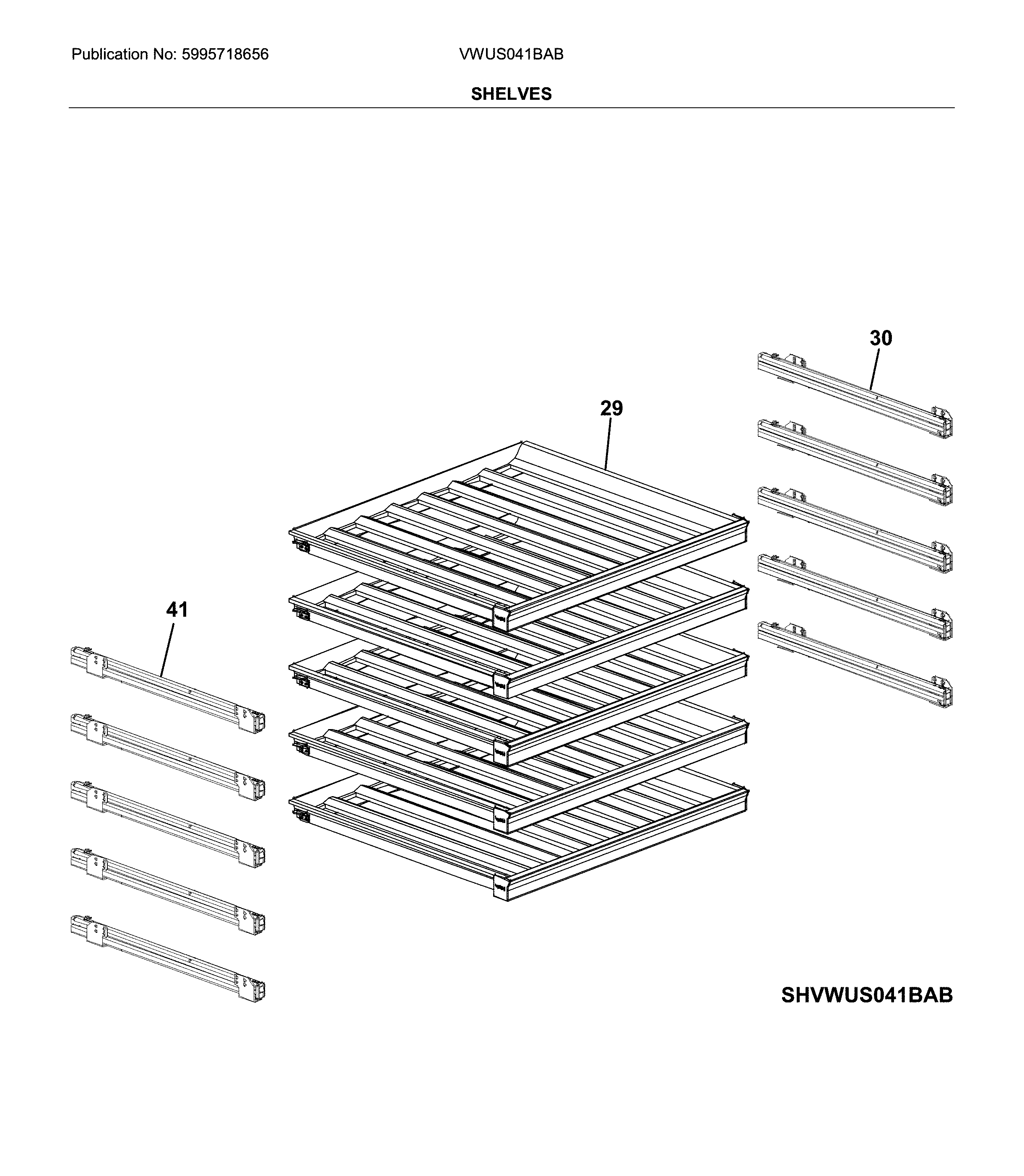

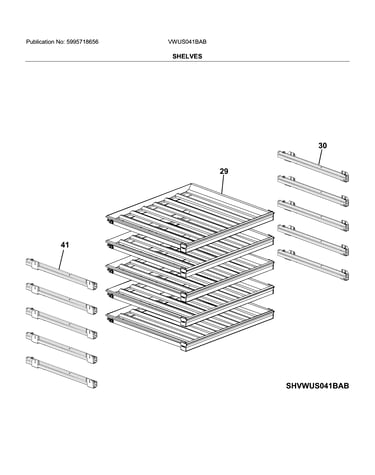

Shelves diagram

Slide rail

Part #5304523217

$153.66

In Stock

Qty

#12

Cabinet diagram

Cover

Part #5304523195

$17.00

In Stock

Qty

#60

Door diagram

Hinge

Part #5304523219

$42.24

In Stock

Qty

#36

Door diagram

Axis

Part #5304523213

$9.30

In Stock

Qty

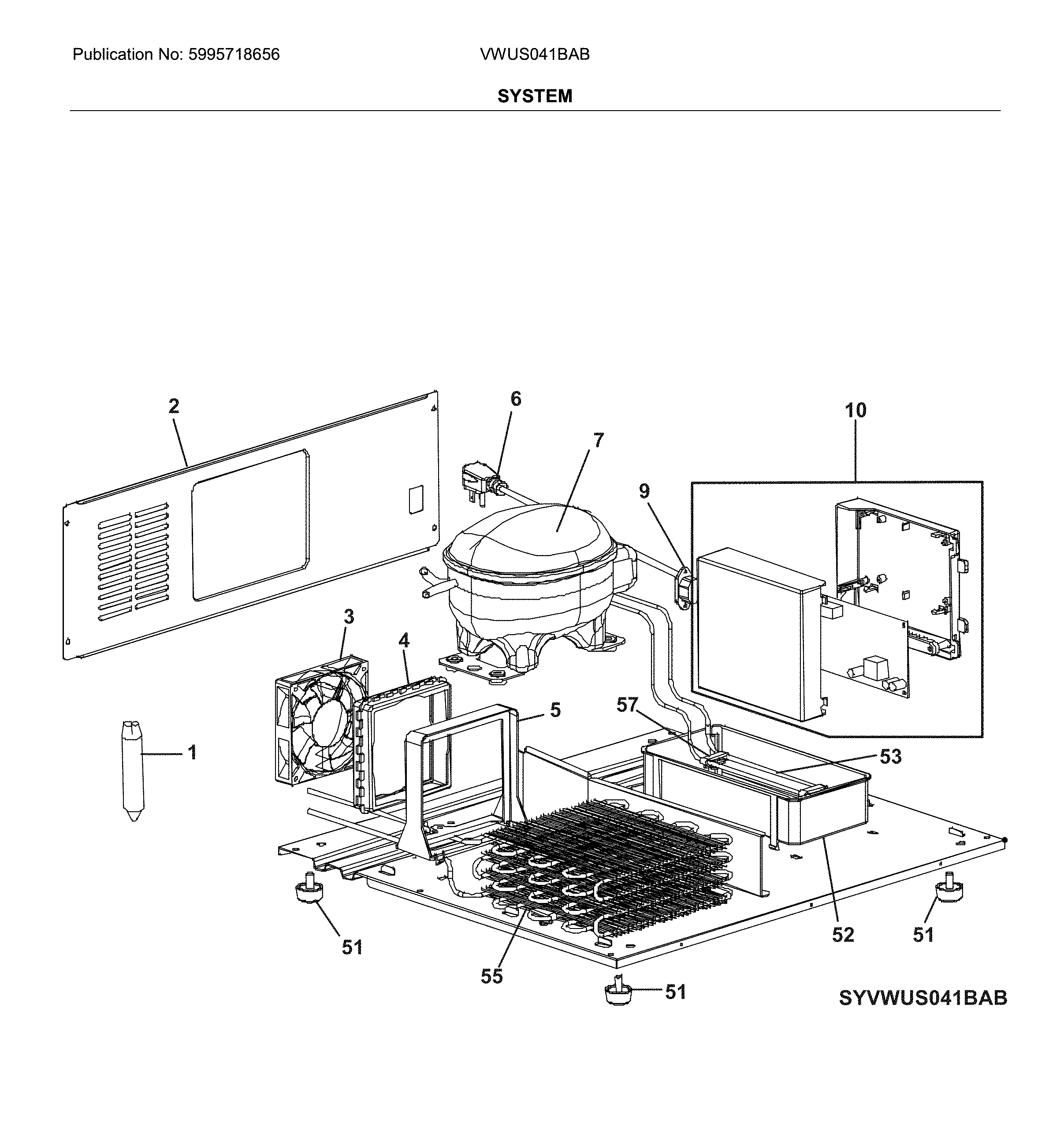

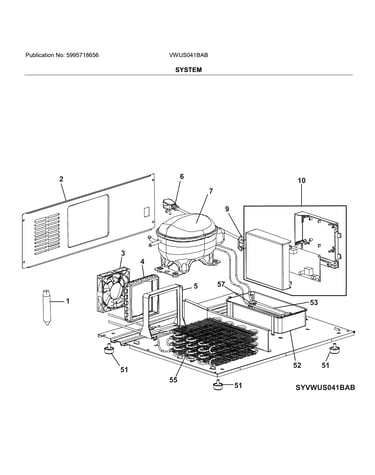

System diagram

Fan assembly,condenser

Part #5304522398

$76.30

In Stock

Qty

#37

Door diagram

Support

Part #5304523214

$37.32

In Stock

Qty

Insulation,air ,foam ,evap Cover 5304522368

#15

Cabinet diagram

Insulation,air ,foam ,evap cover

Part #5304522368

$15.34

In Stock

Qty
