Model # 769815870 Official Kenmore air conditioner evaporator coil & blower module

Here are the diagrams and repair parts for Official Kenmore 769815870 air conditioner evaporator coil & blower module, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Capacitor 8552-14
#21A

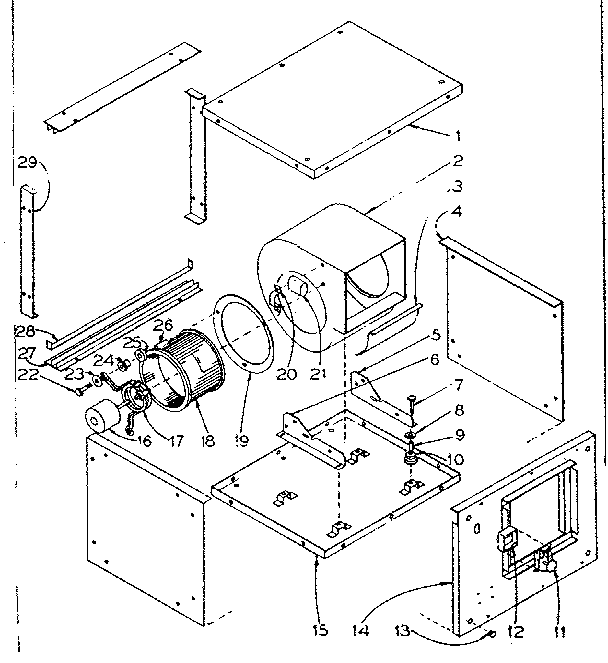

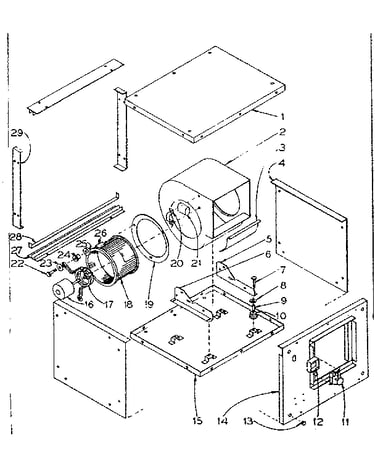

Unit parts diagram

Capacitor

Part #8552-14

Replaced by #PAKTRCF7.5

?
Manufacturer substitution
This part replaces 8552-14. Substitute parts can look different from the original.
This item is not returnable
$2.89 |
26% OFF Phone Price : $3.89
In Stock
Fan Relay 8200-6
#11

Unit parts diagram

Fan relay

Part #8200-6

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 8552-11
#21B

Unit parts diagram

Capacitor

Part #8552-11

Replaced by #12910

?
Manufacturer substitution
This part replaces 8552-11. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Motor Mount 7000-726
#17B

Unit parts diagram

Motor mount

Part #7000-726

Replaced by #56-23001-09

?
Manufacturer substitution
This part replaces 7000-726. Substitute parts can look different from the original.
$54.87
In Stock
Captr Strp 7071-28
#20A

Unit parts diagram

Captr strp

Part #7071-28

The manufacturer no longer makes this part, and there's no substitute part

Blwr W/inslt 5000-369
#15B

Unit parts diagram

Blwr w/inslt

Part #5000-369

The manufacturer no longer makes this part, and there's no substitute part

Washer 1201-38
#23

Unit parts diagram

Washer

Part #1201-38

The manufacturer no longer makes this part, and there's no substitute part

Filter 7041-848
#29B

Unit parts diagram

Filter

Part #7041-848

The manufacturer no longer makes this part, and there's no substitute part

1/3hp Motor 8101-375
#16A

Unit parts diagram

1/3hp motor

Part #8101-375

The manufacturer no longer makes this part, and there's no substitute part

Grommet Wshr 5502-45
Grommet wshr

Part #5502-45

The manufacturer no longer makes this part, and there's no substitute part
