Kenmore
Household Fan

Model # 758630700 Official Kenmore whole house fan & shutter system

Here are the diagrams and repair parts for Official Kenmore 758630700 whole house fan & shutter system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

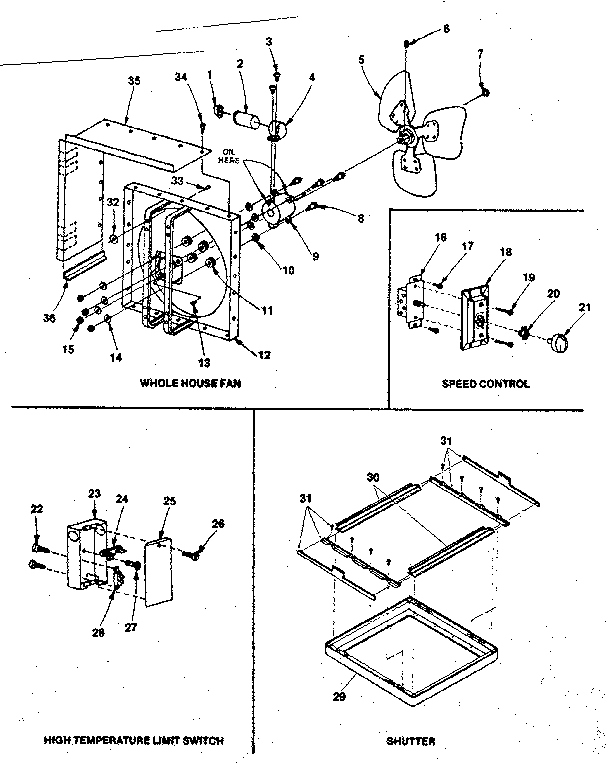

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Control Thermostat 42-6254

#NI

All parts diagram

Control thermostat

Part #42-6254

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551025
#10

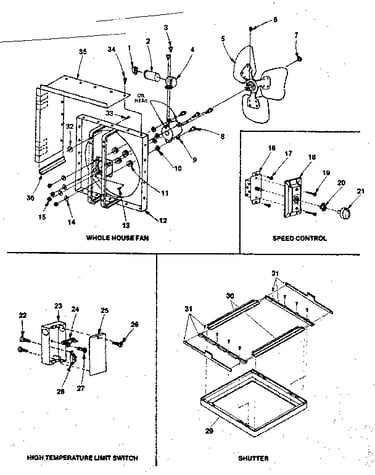

Unit parts diagram

Washer

Part #STD551025

The manufacturer no longer makes this part, and there's no substitute part

Control 1414-0052-000
#16

Unit parts diagram

Control

Part #1414-0052-000

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut STD541410
#15

Unit parts diagram

Lock nut

Part #STD541410

The manufacturer no longer makes this part, and there's no substitute part

Fastener 2008-0005-000
#34A

Unit parts diagram

Fastener

Part #2008-0005-000

The manufacturer no longer makes this part, and there's no substitute part

Limit Switch 5216-0247-000
#24

Unit parts diagram

Limit switch

Part #5216-0247-000

The manufacturer no longer makes this part, and there's no substitute part

Motor 3900-0458-000
#9

Unit parts diagram

Motor

Part #3900-0458-000

The manufacturer no longer makes this part, and there's no substitute part

Lkg & Rail 5205-0137-000
#31

Unit parts diagram

Lkg & rail

Part #5205-0137-000

The manufacturer no longer makes this part, and there's no substitute part

Parts Bag 1205-0063-000

#NI

All parts diagram

Parts bag

Part #1205-0063-000

The manufacturer no longer makes this part, and there's no substitute part

Shutter Assembly 5205-0139-000
#37

Unit parts diagram

Shutter assembly

Part #5205-0139-000

The manufacturer no longer makes this part, and there's no substitute part
