Model # 4400CLSILVER Official StairMaster stepper

Here are the diagrams and repair parts for Official StairMaster 4400CLSILVER stepper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

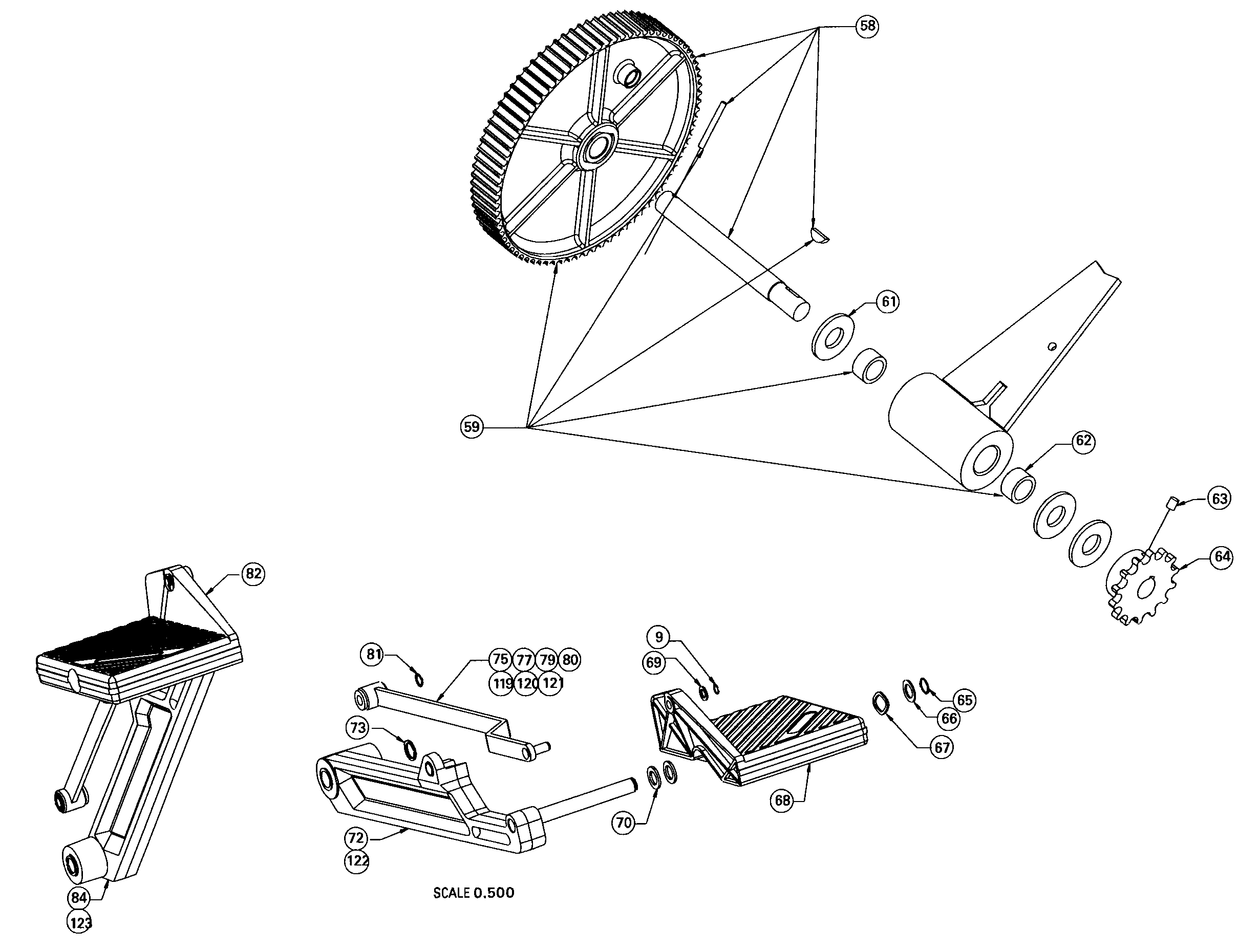

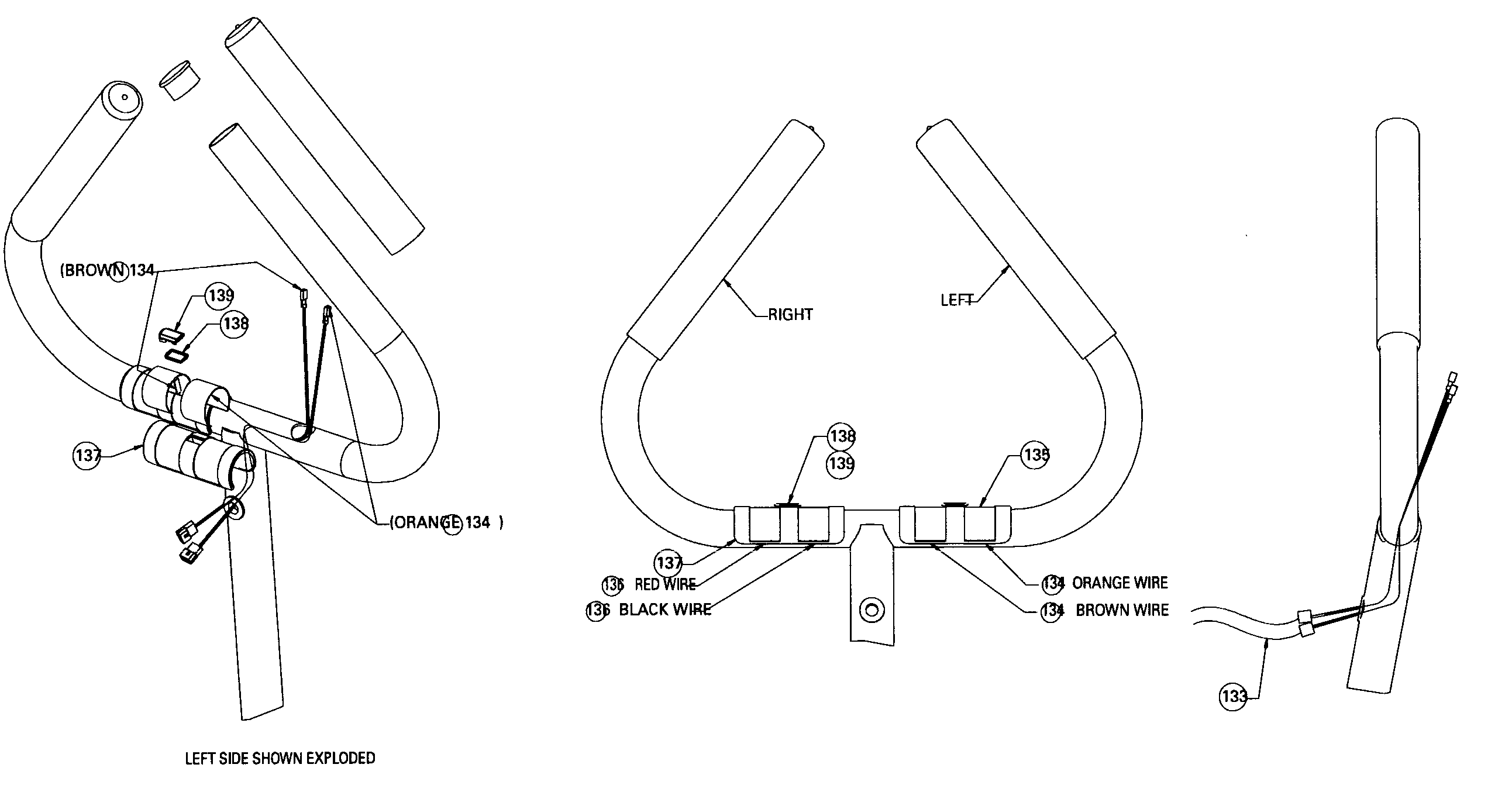

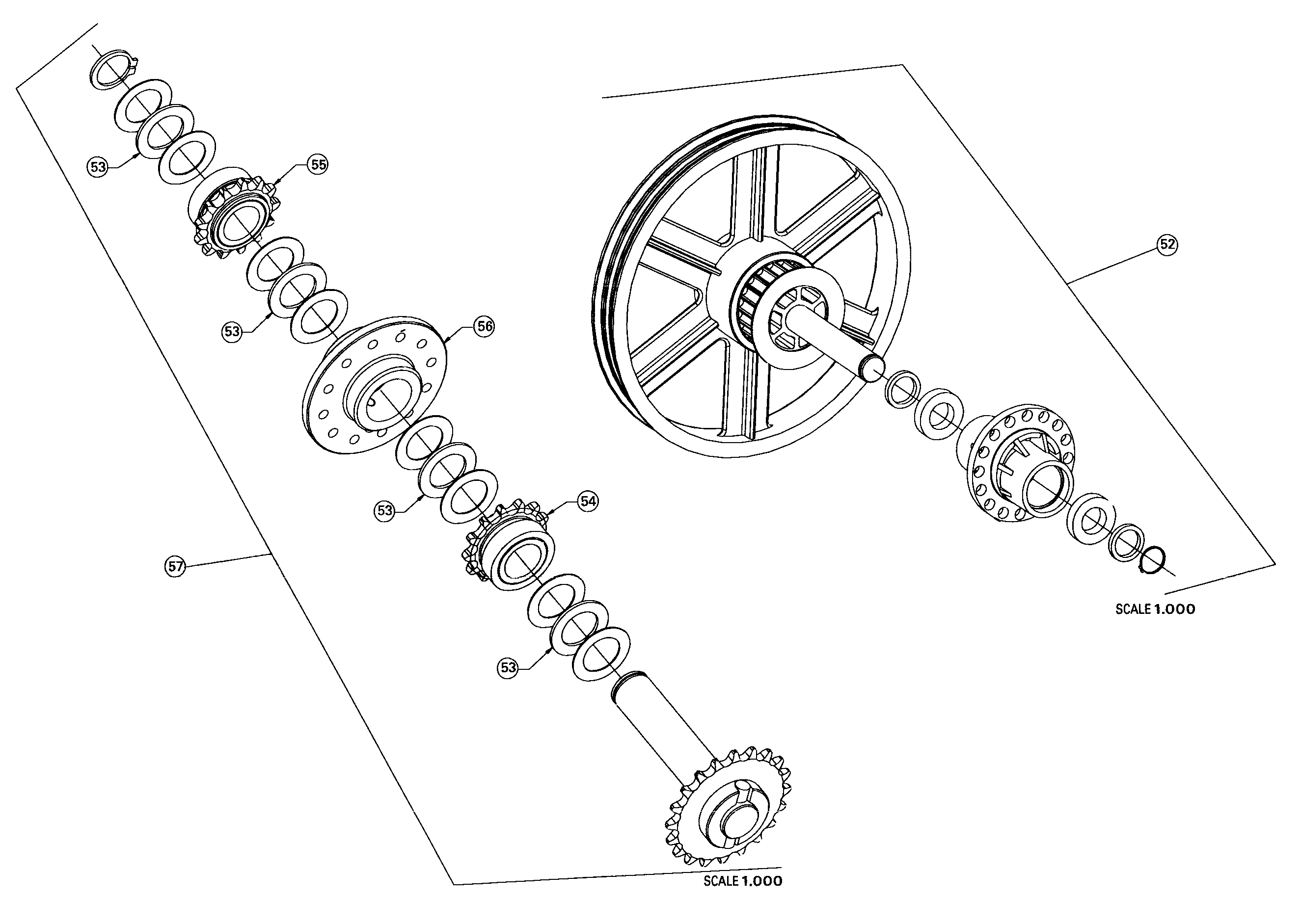

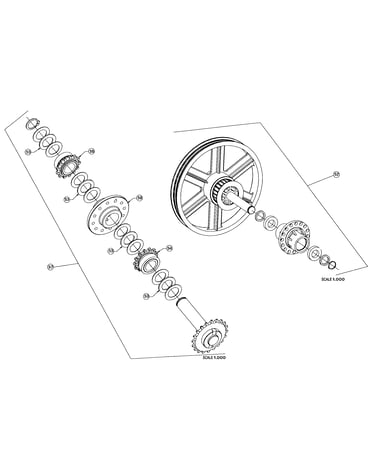

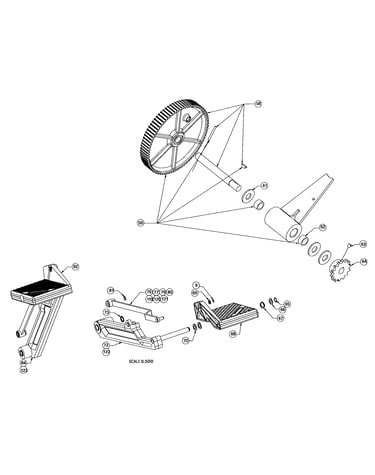

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Poly V Belt SM20202
#NI

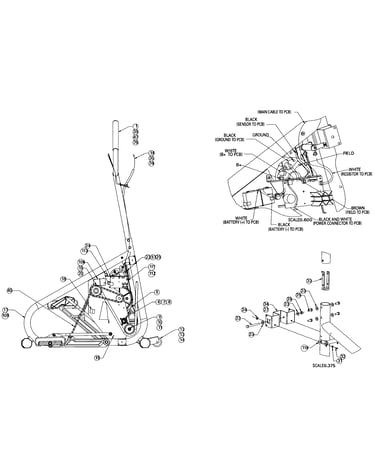

Frame assy diagram

Poly v belt

Part #SM20202

The manufacturer no longer makes this part, and there's no substitute part

Transmison SM20001
#NI

Frame assy diagram

Transmison

Part #SM20001

The manufacturer no longer makes this part, and there's no substitute part

Drive Hub Kit SM27078
#90

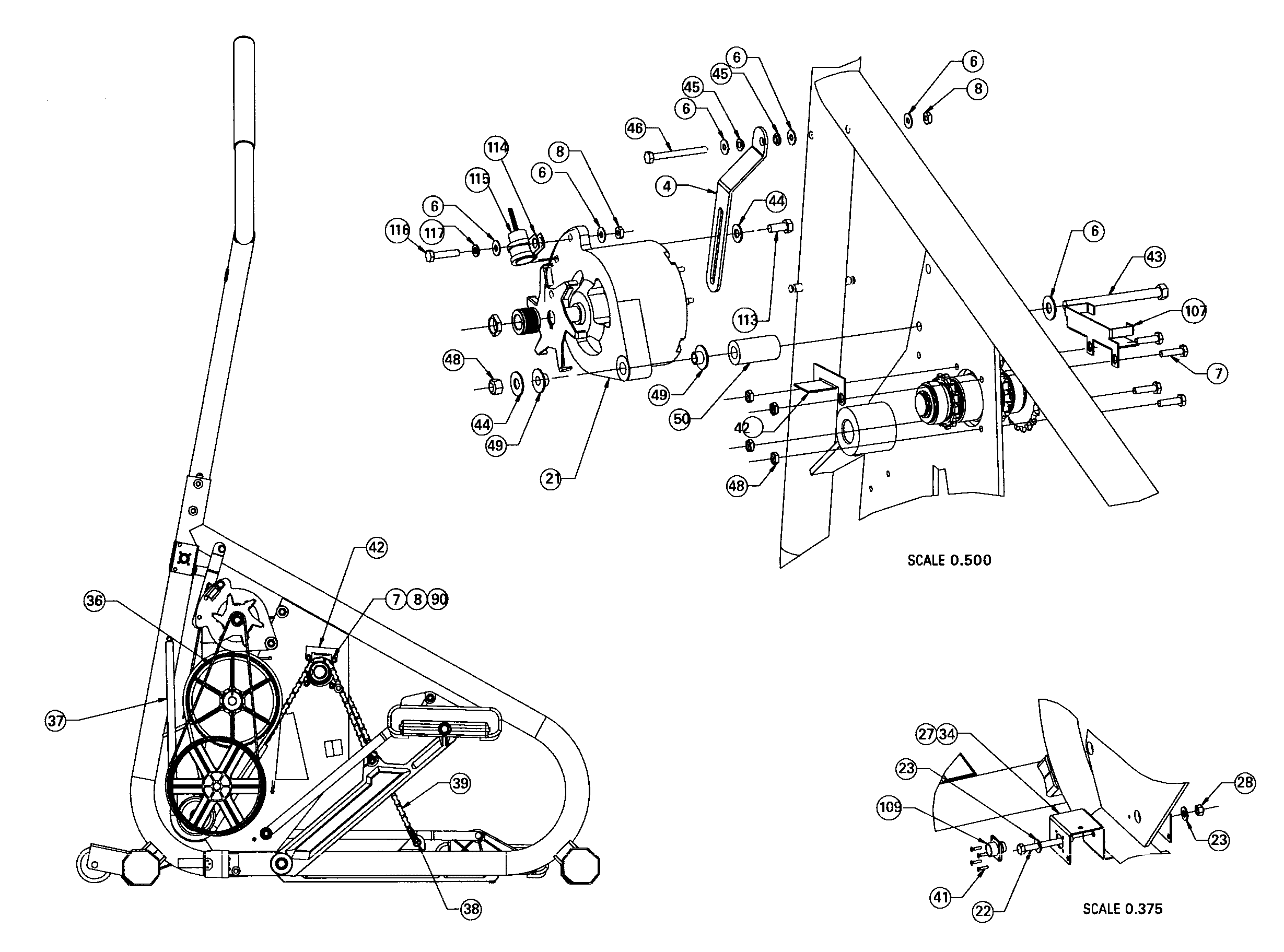

Motor assy diagram

Drive hub kit

Part #SM27078

The manufacturer no longer makes this part, and there's no substitute part

Neck,cover-sil Asy SM25856
#47

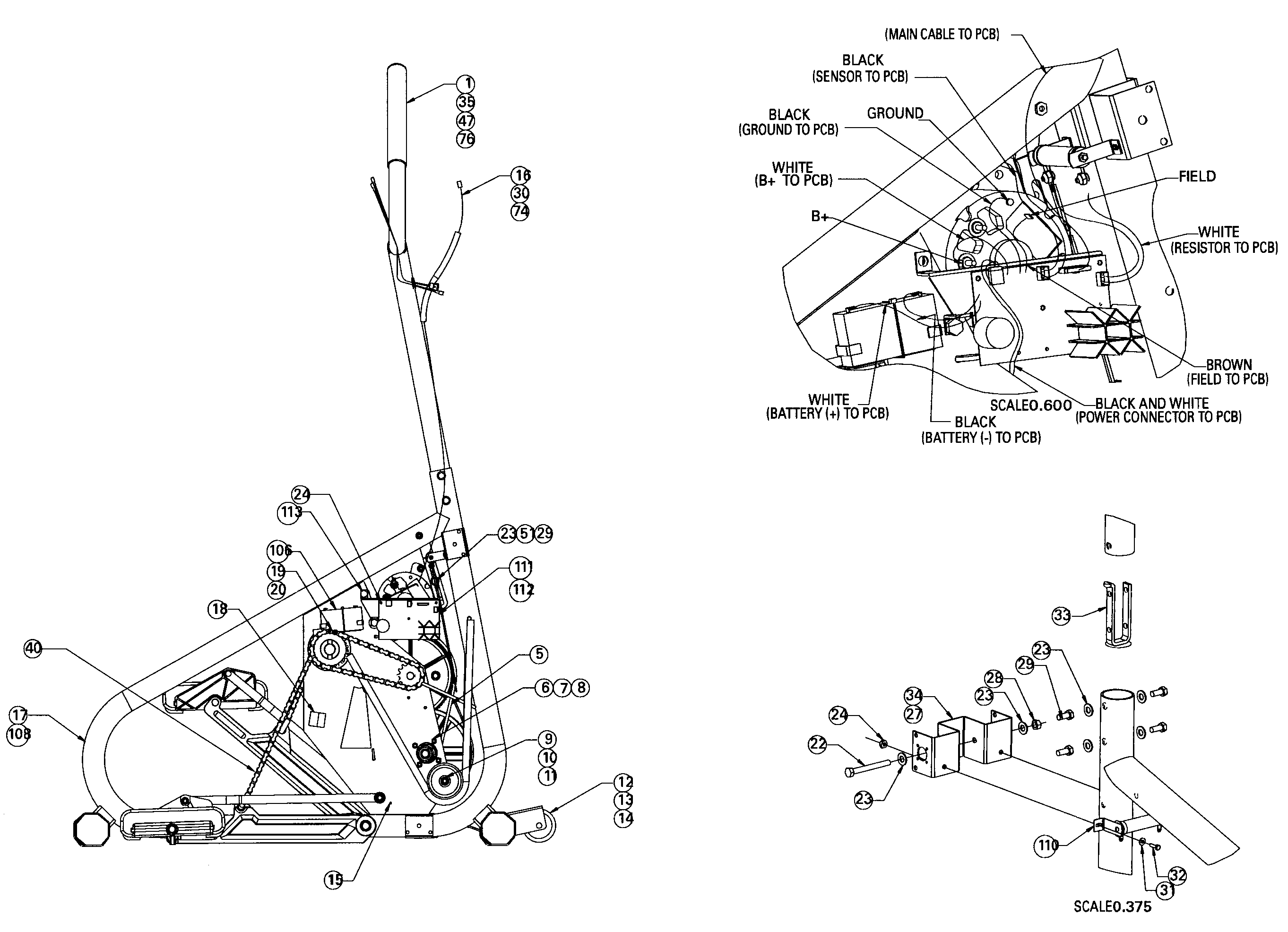

Frame assy diagram

Neck,cover-sil asy

Part #SM25856

The manufacturer no longer makes this part, and there's no substitute part

Mag.holder SM27791-03
#26

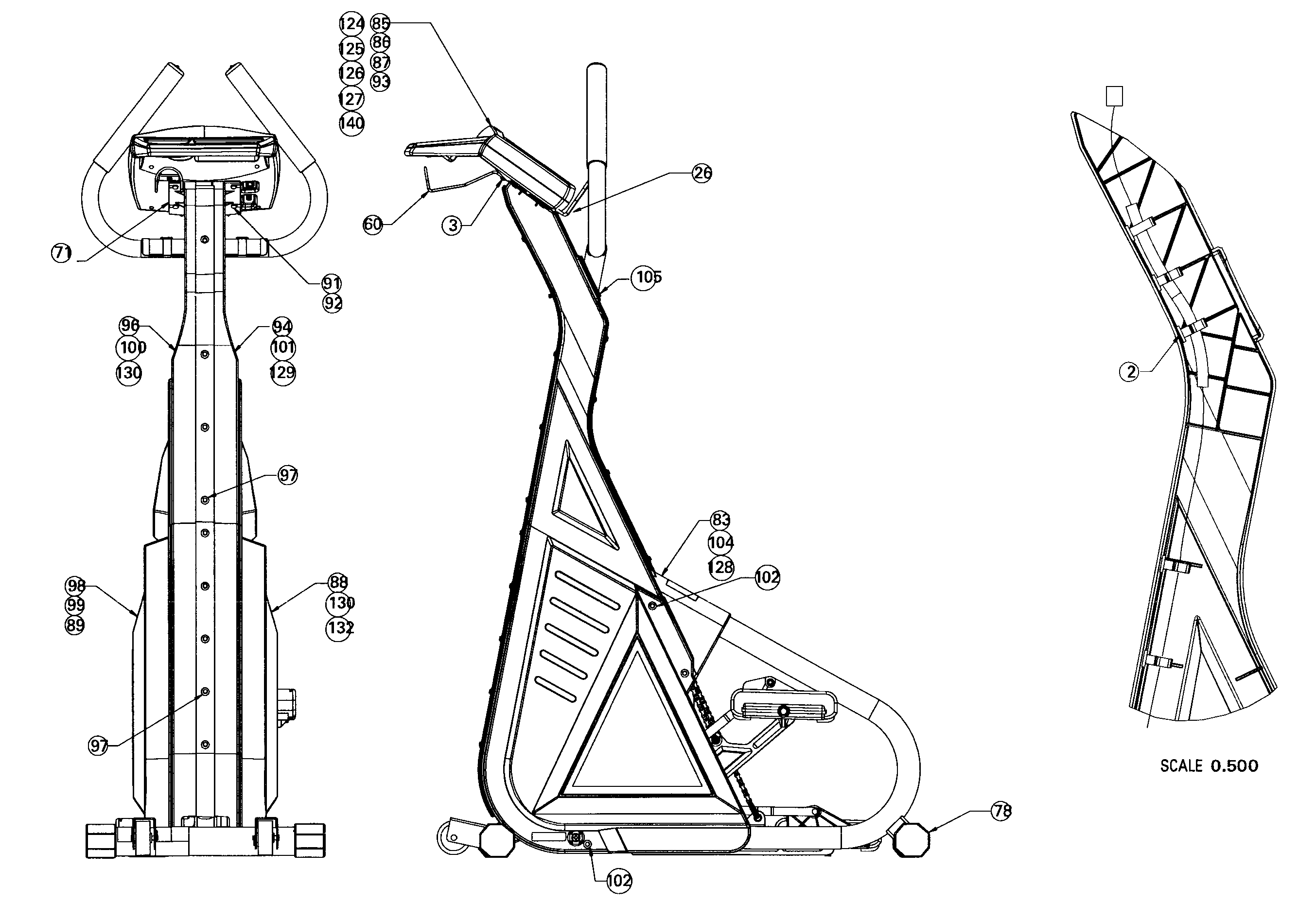

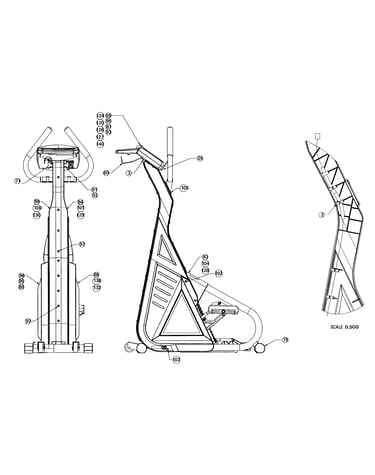

Console assy diagram

Mag.holder

Part #SM27791-03

The manufacturer no longer makes this part, and there's no substitute part

Console Assembly SM27775-99
#140

Console assy diagram

Console assembly

Part #SM27775-99

The manufacturer no longer makes this part, and there's no substitute part

Pulley Spring(pre-11/95) SM21094
#NI

Frame assy diagram

Pulley spring(pre-11/95)

Part #SM21094

The manufacturer no longer makes this part, and there's no substitute part

Pad Transm(pre-11/95) SM20808
#NI

Frame assy diagram

Pad transm(pre-11/95)

Part #SM20808

The manufacturer no longer makes this part, and there's no substitute part

Bracket Mounting Battery SM21489
#107

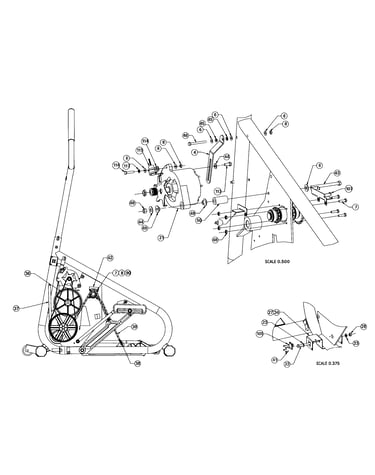

Motor assy diagram

Bracket mounting battery

Part #SM21489

The manufacturer no longer makes this part, and there's no substitute part

Kit,rivet-10per SM22847
#97

Console assy diagram

Kit,rivet-10per

Part #SM22847

The manufacturer no longer makes this part, and there's no substitute part
