Model # 11324611 Official Craftsman commercial 15-1 drill press

Here are the diagrams and repair parts for Official Craftsman 11324611 commercial 15-1 drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 111 parts |

#24

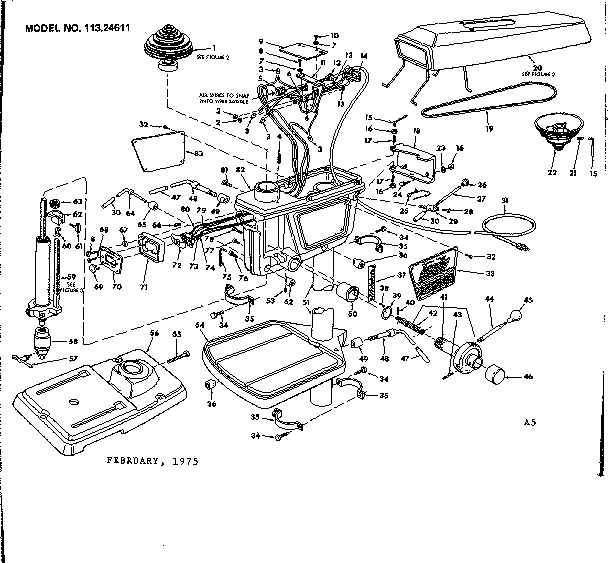

2 inch drill press diagram

Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

#61

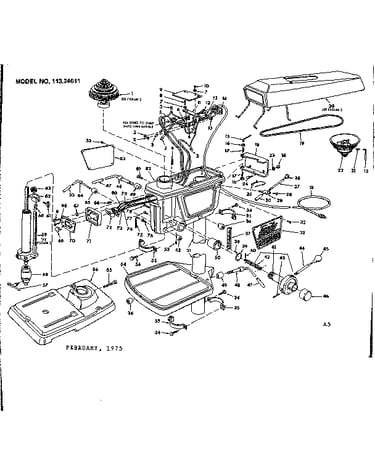

2 inch drill press diagram

Thumb screw

Part #60191

The manufacturer no longer makes this part, and there's no substitute part

#45

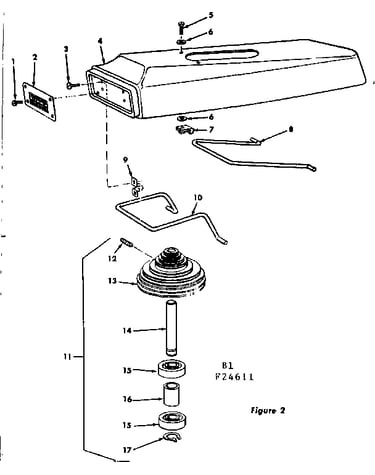

2 inch drill press diagram

Power tool knob

Part #38546

The manufacturer no longer makes this part, and there's no substitute part

#12

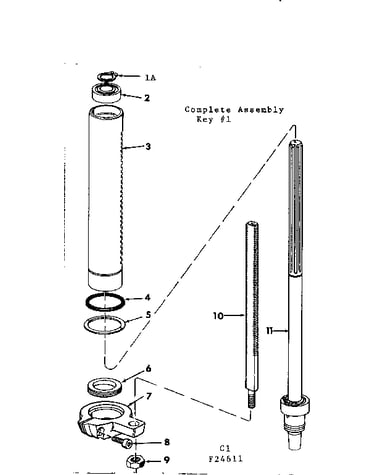

2 inch drill press diagram

Screw

Part #60227

The manufacturer no longer makes this part, and there's no substitute part

#78

2 inch drill press diagram

Screw

Part #138225

The manufacturer no longer makes this part, and there's no substitute part

#12

2 inch drill press diagram

Relief str

Part #37818

The manufacturer no longer makes this part, and there's no substitute part

#43

2 inch drill press diagram

Roll pin

Part #60197

The manufacturer no longer makes this part, and there's no substitute part

#23

2 inch drill press diagram

Plain washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

#57

2 inch drill press diagram

Chuck key

Part #71157

The manufacturer no longer makes this part, and there's no substitute part

2 inch drill press diagram

Connector

Part #71046

The manufacturer no longer makes this part, and there's no substitute part
