Model # JOVS-10 Official Jet oscillating spindle sander

Here are the diagrams and repair parts for Official Jet JOVS-10 oscillating spindle sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Warning Label JOVS10-183
#183

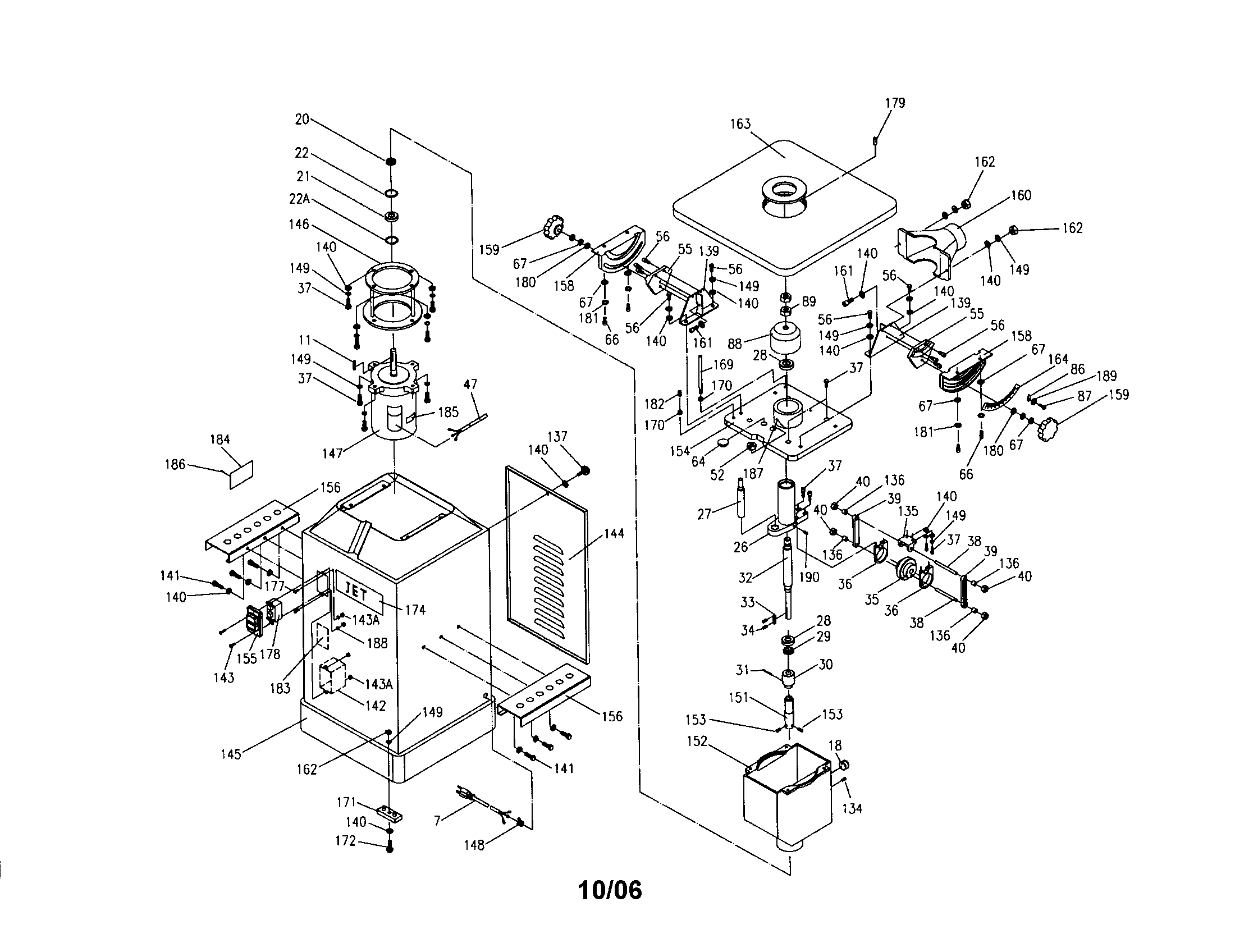

Oscillating spindle sander diagram

Warning label

Part #JOVS10-183

The manufacturer no longer makes this part, and there's no substitute part

Bolt TS-0051021
#141

Oscillating spindle sander diagram

Bolt

Part #TS-0051021

The manufacturer no longer makes this part, and there's no substitute part

Knob JOVS10-159
#159

Oscillating spindle sander diagram

Knob

Part #JOVS10-159

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut TS-0640091
#40

Oscillating spindle sander diagram

Lock nut

Part #TS-0640091

The manufacturer no longer makes this part, and there's no substitute part

Tank JOVS10-152
#152

Oscillating spindle sander diagram

Tank

Part #JOVS10-152

The manufacturer no longer makes this part, and there's no substitute part

Motor Fan (not Shown) JOVS10-147MF

#NI01

All parts diagram

Motor fan (not shown)

Part #JOVS10-147MF

The manufacturer no longer makes this part, and there's no substitute part

Bushing JOVS10-148
#148

Oscillating spindle sander diagram

Bushing

Part #JOVS10-148

The manufacturer no longer makes this part, and there's no substitute part

Nut TS-0561031
#170

Oscillating spindle sander diagram

Nut

Part #TS-0561031

The manufacturer no longer makes this part, and there's no substitute part

Nut OVS10-089
#89

Oscillating spindle sander diagram

Nut

Part #OVS10-089

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal OS-30628
#20

Oscillating spindle sander diagram

Oil seal

Part #OS-30628

The manufacturer no longer makes this part, and there's no substitute part
