Model # HT3061A Official Prima television

Here are the diagrams and repair parts for Official Prima HT3061A television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Integrated Circuit 352-61110-80
#NI

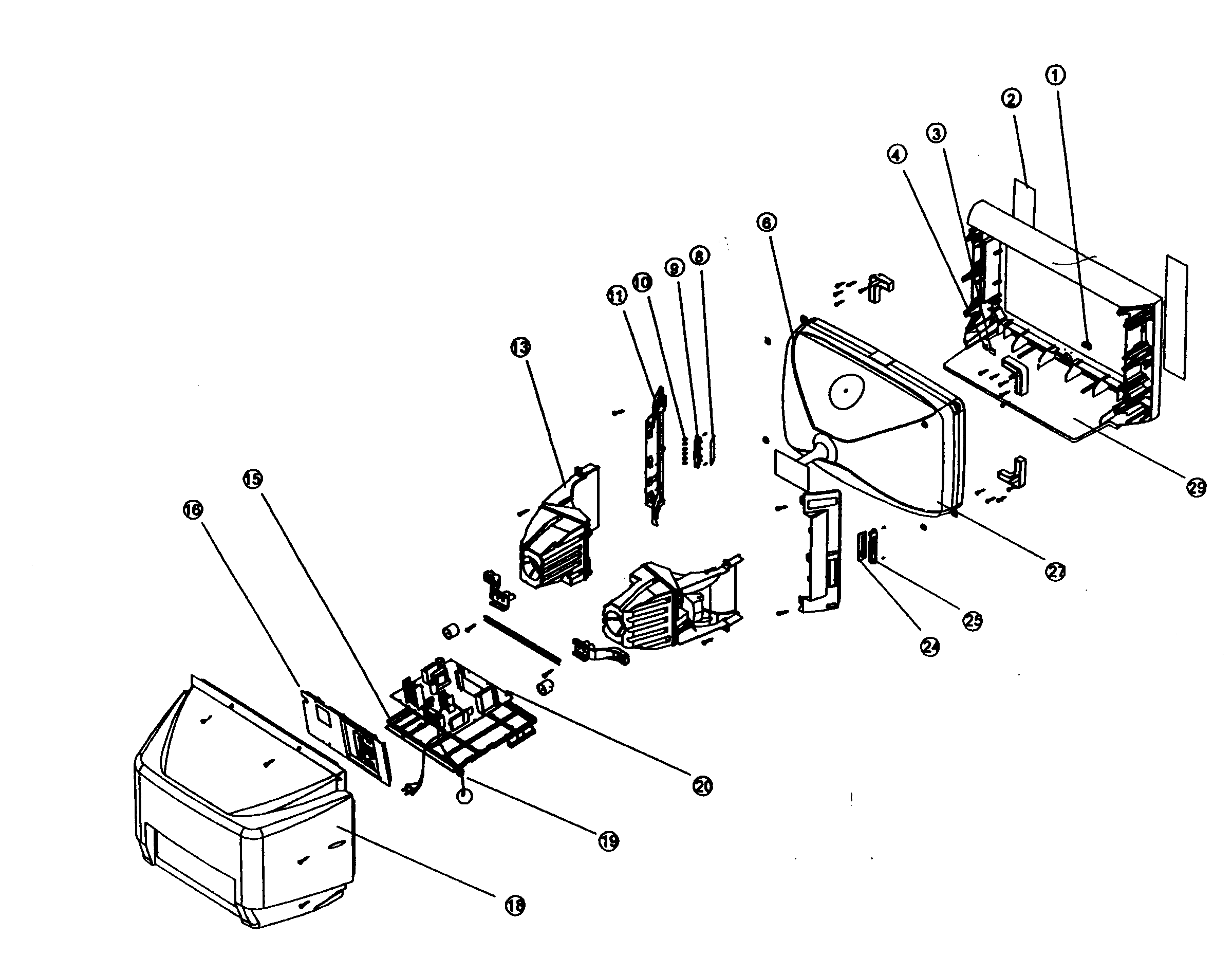

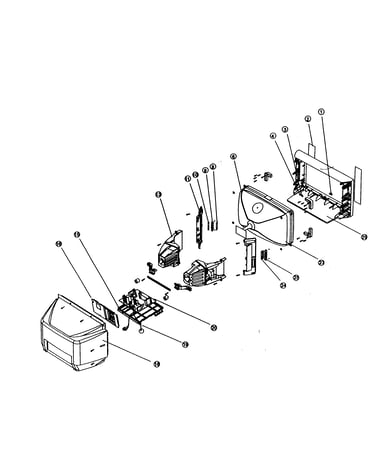

Tv diagram

Integrated circuit

Part #352-61110-80

Replaced by #TDA6111Q

?
Manufacturer substitution
This part replaces 352-61110-80. Substitute parts can look different from the original.
$18.79
In Stock
Cathode Ray Tube Digital Video 335-32123-00U
#27A

Tv diagram

Cathode ray tube digital video

Part #335-32123-00U

Replaced by #335-32123-00U

?
Manufacturer substitution
This part replaces 335-32123-00U. Substitute parts can look different from the original.
$603.49
In Stock
Led Column 700-60148-00
#3

Tv diagram

Led column

Part #700-60148-00

The manufacturer no longer makes this part, and there's no substitute part

Fbt 472-2C108-00
#NI

Tv diagram

Fbt

Part #472-2C108-00

The manufacturer no longer makes this part, and there's no substitute part

Decoration Piece 743-10120-0E0
#11

Tv diagram

Decoration piece

Part #743-10120-0E0

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 667-T3460-02L
#NI

Tv diagram

Pcb assembly

Part #667-T3460-02L

The manufacturer no longer makes this part, and there's no substitute part

Speaker Grille, Left 864-10164-E5A
#2

Tv diagram

Speaker grille, left

Part #864-10164-E5A

The manufacturer no longer makes this part, and there's no substitute part

Re A/v Pcb 667-T3461-29C
#16A

Tv diagram

Re a/v pcb

Part #667-T3461-29C

The manufacturer no longer makes this part, and there's no substitute part

Coil 477-13202-00
#6

Tv diagram

Coil

Part #477-13202-00

The manufacturer no longer makes this part, and there's no substitute part

Box Speaker 615-20017-00
#13

Tv diagram

Box speaker

Part #615-20017-00

The manufacturer no longer makes this part, and there's no substitute part
