Model # 313544200 Official Craftsman two-stage gas welding outfit

Here are the diagrams and repair parts for Official Craftsman 313544200 two-stage gas welding outfit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Regulator 3301970
#22

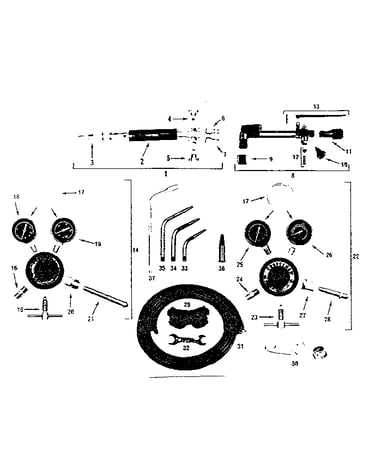

Unit parts diagram

Regulator

Part #3301970

The manufacturer no longer makes this part, and there's no substitute part

Wrench 4300007
#32

Unit parts diagram

Wrench

Part #4300007

The manufacturer no longer makes this part, and there's no substitute part

Weldng Tip 5 1600405
#34

Unit parts diagram

Weldng tip 5

Part #1600405

The manufacturer no longer makes this part, and there's no substitute part

Weldng Tip 7 1600406
#35

Unit parts diagram

Weldng tip 7

Part #1600406

The manufacturer no longer makes this part, and there's no substitute part

Stem 9100728
#28

Unit parts diagram

Stem

Part #9100728

The manufacturer no longer makes this part, and there's no substitute part

Welder Tip, #3 1600404
#33

Unit parts diagram

Welder tip, #3

Part #1600404

The manufacturer no longer makes this part, and there's no substitute part

Spark Lightr 4300009
#30

Unit parts diagram

Spark lightr

Part #4300009

The manufacturer no longer makes this part, and there's no substitute part

Cuttng Tip 1 1500415
#36

Unit parts diagram

Cuttng tip 1

Part #1500415

The manufacturer no longer makes this part, and there's no substitute part

Gauge 9008476
#19

Unit parts diagram

Gauge

Part #9008476

The manufacturer no longer makes this part, and there's no substitute part

Nut 9002972
#20

Unit parts diagram

Nut

Part #9002972

The manufacturer no longer makes this part, and there's no substitute part
