Model # DCR-SR40 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-SR40 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

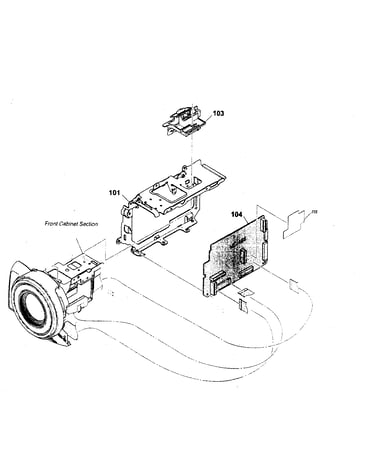

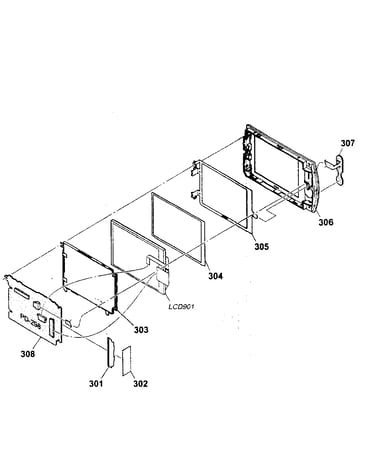

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Usb Cable 182957941
#NI

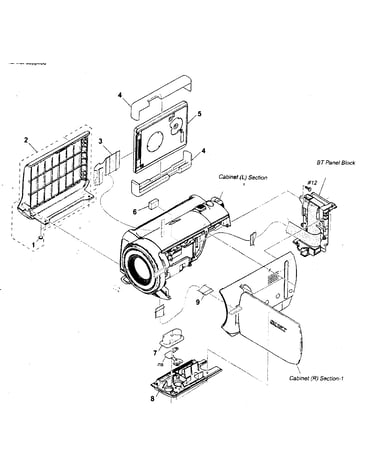

Cabinet parts 1 diagram

Usb cable

Part #182957941

The manufacturer no longer makes this part, and there's no substitute part

Hdd A1184016A
#5

Cabinet parts 1 diagram

Hdd

Part #A1184016A

The manufacturer no longer makes this part, and there's no substitute part

Termnl Brd 178006421
#NI

Bt panel block diagram

Termnl brd

Part #178006421

The manufacturer no longer makes this part, and there's no substitute part

Dc Jack 181579211
#NI

Bt panel block diagram

Dc jack

Part #181579211

The manufacturer no longer makes this part, and there's no substitute part

Microphone 154266011
#NI

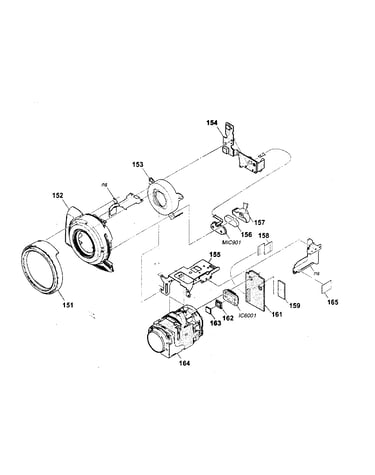

Front cabinet diagram

Microphone

Part #154266011

The manufacturer no longer makes this part, and there's no substitute part

Sensor 147902261
#NI

Cabinet parts 1 diagram

Sensor

Part #147902261

The manufacturer no longer makes this part, and there's no substitute part

Hinge Assembly X21084751
#254

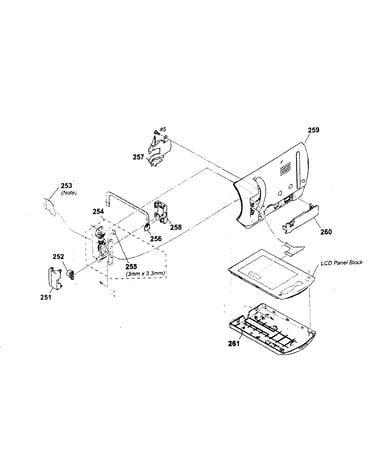

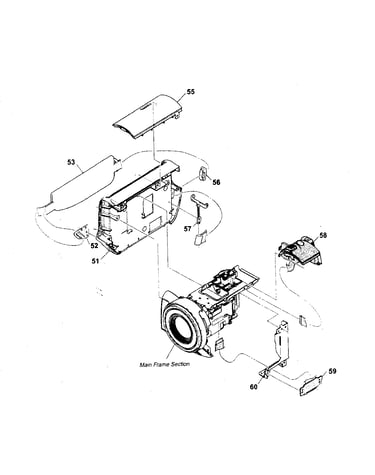

Cabinet parts r 2 diagram

Hinge assembly

Part #X21084751

The manufacturer no longer makes this part, and there's no substitute part

Ac Adapter 147928813
#NI

Cabinet parts 1 diagram

Ac adapter

Part #147928813

The manufacturer no longer makes this part, and there's no substitute part

Flex Cable 187046311
#351

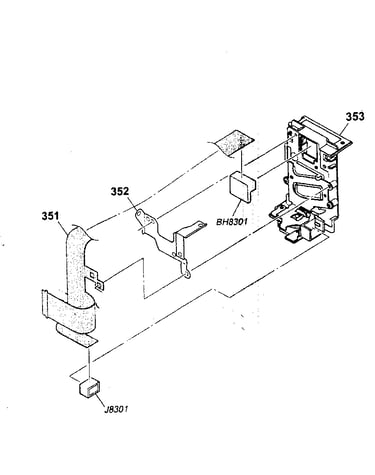

Bt panel block diagram

Flex cable

Part #187046311

The manufacturer no longer makes this part, and there's no substitute part

Cable 183322011
#203

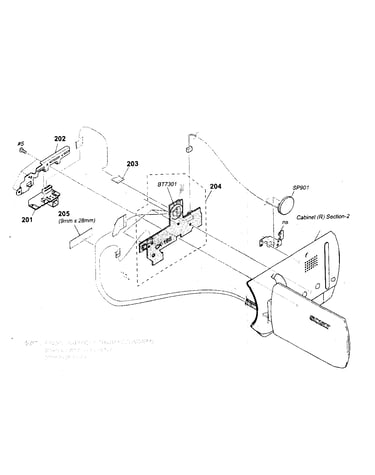

Cabinet parts r 1 diagram

Cable

Part #183322011

Replaced by #183322011

?
Manufacturer substitution
This part replaces 183322011. Substitute parts can look different from the original.
This item is not returnable
$6.36
In Stock
