Ryobi
Reciprocating Saw

Model # RJ-102K Official Ryobi reciprocating saw

Here are the diagrams and repair parts for Official Ryobi RJ-102K reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Housing 6800264
#39

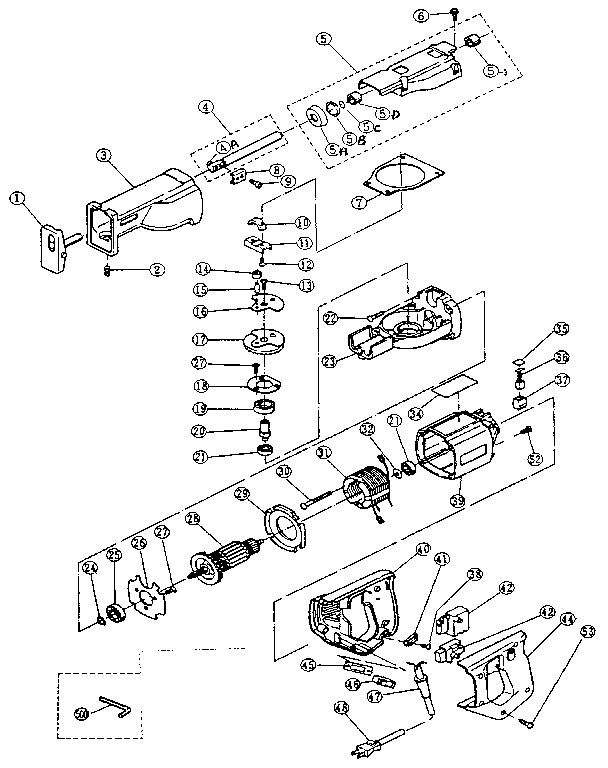

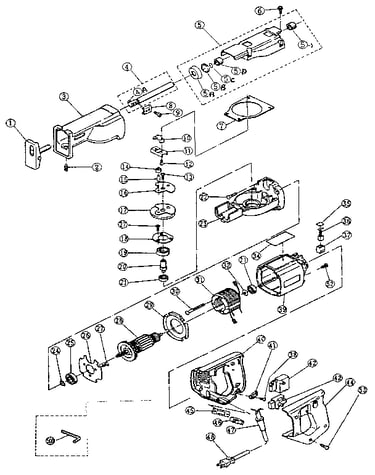

Unit parts diagram

Housing

Part #6800264

The manufacturer no longer makes this part, and there's no substitute part

Washer 9570400
#51

Unit parts diagram

Washer

Part #9570400

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 6820138
#23

Unit parts diagram

Gear case

Part #6820138

The manufacturer no longer makes this part, and there's no substitute part

Clamp Screw 9280812
#2

Unit parts diagram

Clamp screw

Part #9280812

The manufacturer no longer makes this part, and there's no substitute part

Label 6920048

#NI

All parts diagram

Label

Part #6920048

The manufacturer no longer makes this part, and there's no substitute part

Plate 6150227
#18

Unit parts diagram

Plate

Part #6150227

The manufacturer no longer makes this part, and there's no substitute part

Ring 9511000
#24

Unit parts diagram

Ring

Part #9511000

The manufacturer no longer makes this part, and there's no substitute part

Metal 6760031
#5C

Unit parts diagram

Metal

Part #6760031

The manufacturer no longer makes this part, and there's no substitute part

Connector 6530209

#NI

All parts diagram

Connector

Part #6530209

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 9840608
#21

Unit parts diagram

Ball bearing

Part #9840608

The manufacturer no longer makes this part, and there's no substitute part
