KitchenAid
Wine & Beverage Cooler

Model # KUWL304EBS01 Official KitchenAid beverage center

Here are the diagrams and repair parts for Official KitchenAid KUWL304EBS01 beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

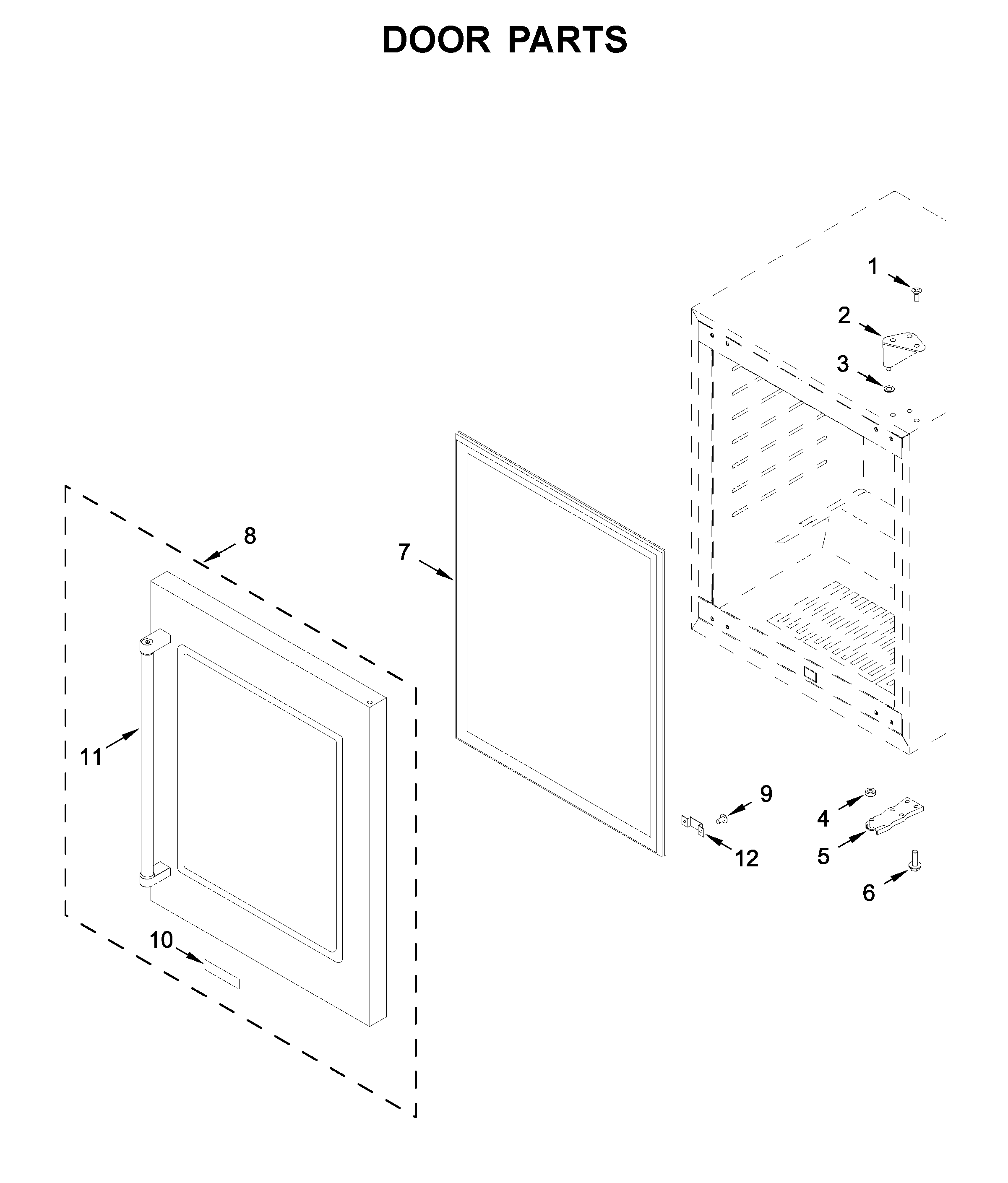

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Wine Cooler Leveling Leg 4344763
#9

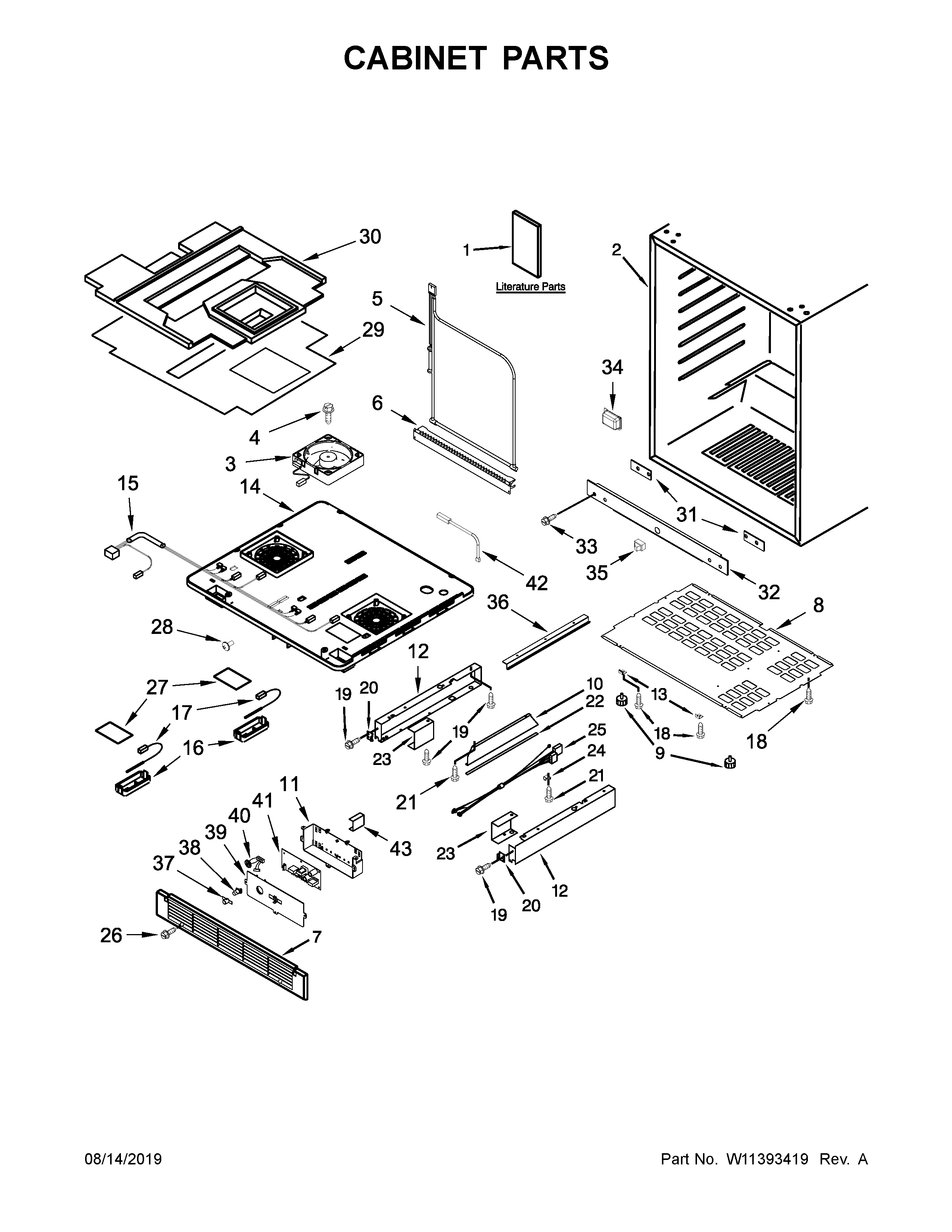

Cabinet parts diagram

Wine cooler leveling leg

Part #4344763

Replaced by #W11106296

?
Manufacturer substitution
This part replaces 4344763. Substitute parts can look different from the original.
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Main Pcb W10804442
#41

Cabinet parts diagram

Main pcb

Part #W10804442

Replaced by #W10808108

?
Manufacturer substitution
This part replaces W10804442. Substitute parts can look different from the original.
$214.59 |
$10.00 OFF Phone Price : $224.59
In Stock
Proximity Li W10797391
#37

Cabinet parts diagram

Proximity li

Part #W10797391

$36.87
In Stock
Prox Sensor W10780359
#38

Cabinet parts diagram

Prox sensor

Part #W10780359

$51.53
In Stock
Screw 4344832
#27

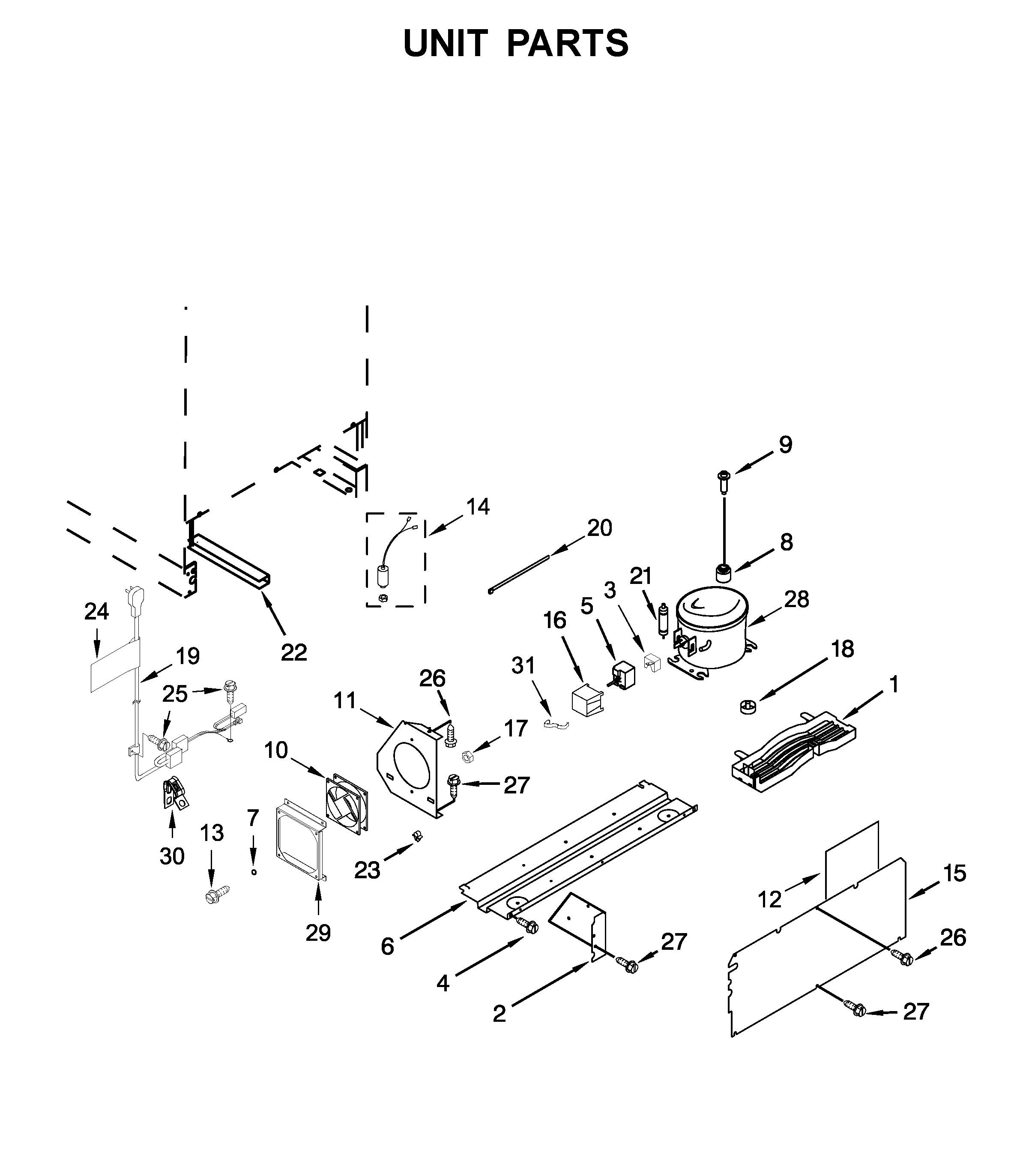

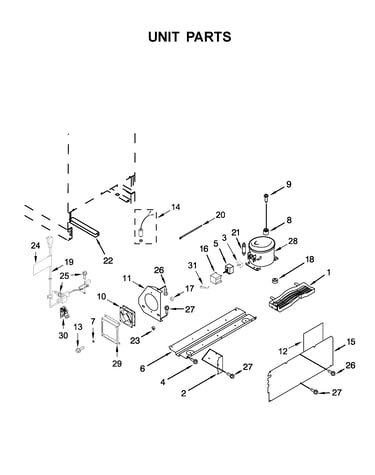

Unit parts diagram

Screw

Part #4344832

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4344832. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Led Light W10797323
#4

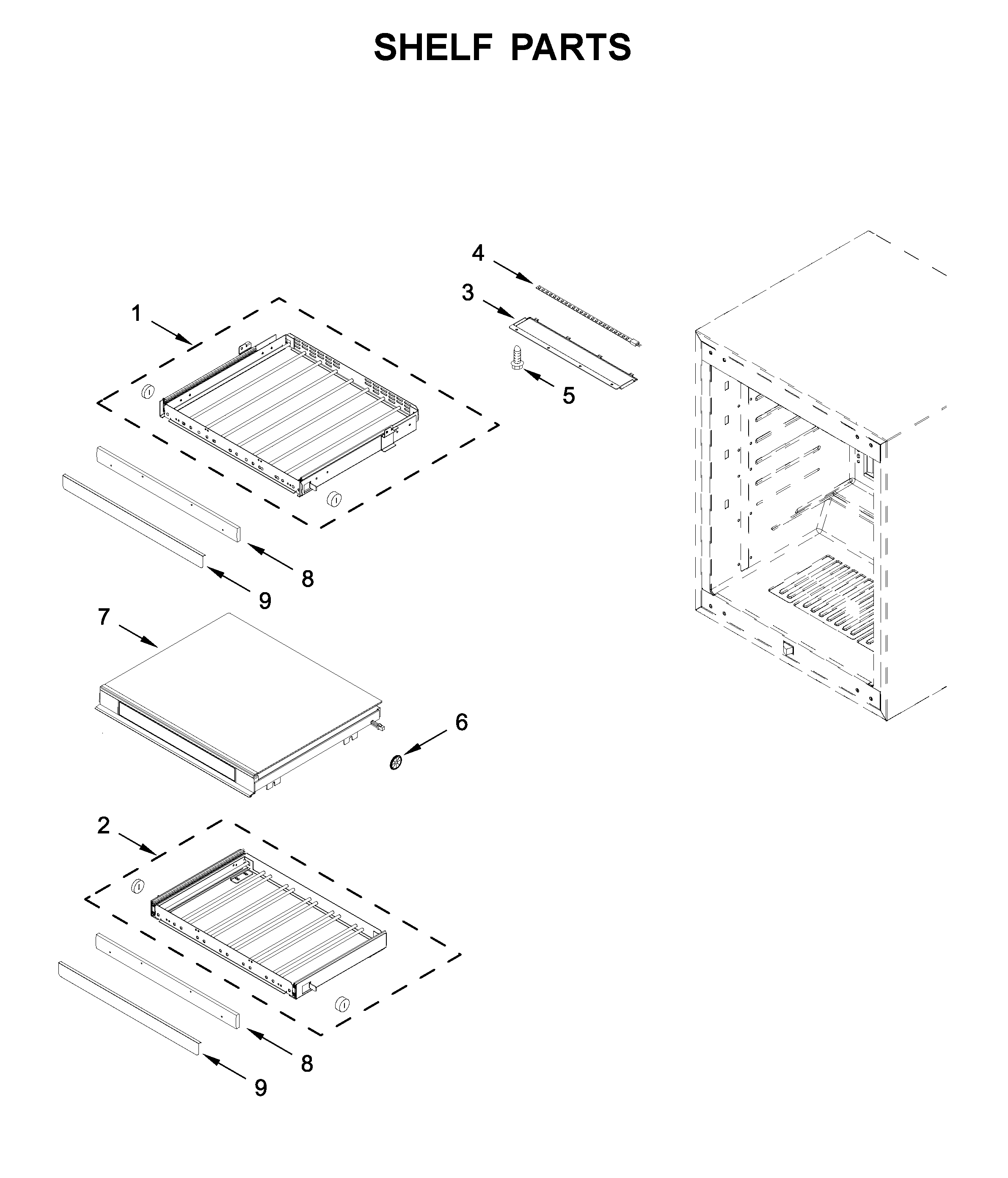

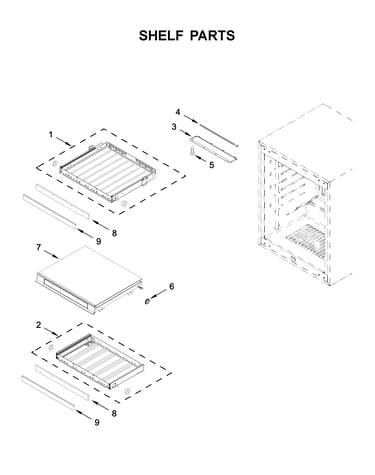

Shelf parts diagram

Led light

Part #W10797323

Replaced by #W11441723

?
Manufacturer substitution
This part replaces W10797323. Substitute parts can look different from the original.
$161.18
In Stock
Grommet 4344779
#8

Unit parts diagram

Grommet

Part #4344779

Replaced by #WP4344779

?
Manufacturer substitution
This part replaces 4344779. Substitute parts can look different from the original.
This item is not returnable
$4.89
In Stock
Liner Bushing W10621514
#6

Shelf parts diagram

Liner bushing

Part #W10621514

$16.54
In Stock
Trim 4344907
#22

Unit parts diagram

Trim

Part #4344907

$91.89 |
5% OFF Phone Price : $96.89
In Stock
Wire Tie 4344829
#20

Unit parts diagram

Wire tie

Part #4344829

$9.83
In Stock
