Model # AZ9VH12EBMH2 Official GE air conditioner

Here are the diagrams and repair parts for Official GE AZ9VH12EBMH2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Indoor Coil Foam WP43X28039
#315

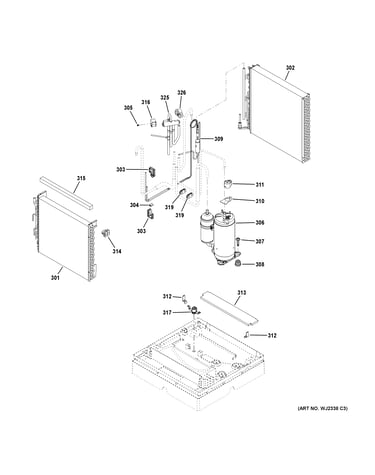

Sealed system diagram

Indoor coil foam

Part #WP43X28039

$7.51
In Stock
Damper Door Assembly WP76X29194
#231

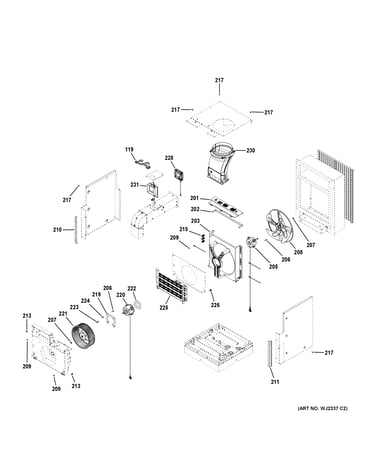

Motor & chassis parts diagram

Damper door assembly

Part #WP76X29194

$215.16
In Stock
Personality Board WP26X28064
#102

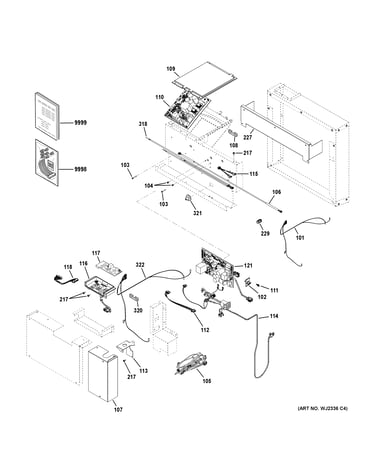

Control parts diagram

Personality board

Part #WP26X28064

$12.60
In Stock
Compressor Service 12k Variable Speed WP98X29677
#306

Sealed system diagram

Compressor service 12k variable speed

Part #WP98X29677

$411.37
In Stock
Nut Terminal WP01X20873
#311

Sealed system diagram

Nut terminal

Part #WP01X20873

This item is not returnable
$4.35
In Stock
Outdoor Shroud Cover Gasket WP43X28038
#202

Motor & chassis parts diagram

Outdoor shroud cover gasket

Part #WP43X28038

$7.51
In Stock
Indoor Fan WP73X28053
#221

Motor & chassis parts diagram

Indoor fan

Part #WP73X28053

$88.91
In Stock
Indoor Thermistor WP26X28044
#318

Control parts diagram

Indoor thermistor

Part #WP26X28044

$25.51
In Stock
Heater Assembly 265v WP27X28074
#225

Motor & chassis parts diagram

Heater assembly 265v

Part #WP27X28074

$164.86
In Stock
Inverter Board Lid WP71X29183
#109

Control parts diagram

Inverter board lid

Part #WP71X29183

$51.80
In Stock
