Model # SS-F7000 Official Sony audio speaker

Here are the diagrams and repair parts for Official Sony SS-F7000 audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Catcher 425418201
#156

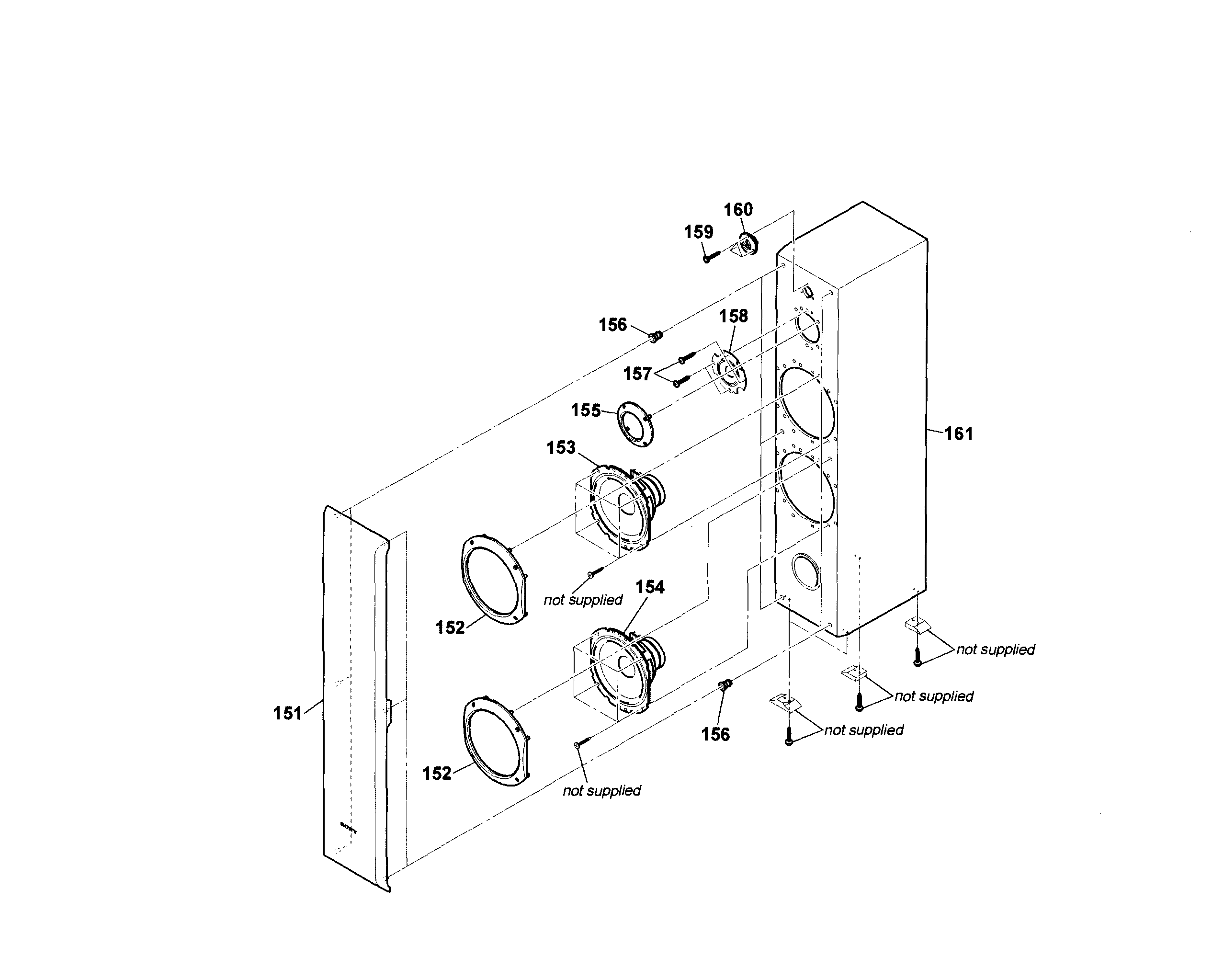

Speaker assy diagram

Catcher

Part #425418201

The manufacturer no longer makes this part, and there's no substitute part

Ring,midra 289882601
#155

Speaker assy diagram

Ring,midra

Part #289882601

The manufacturer no longer makes this part, and there's no substitute part

Audio Speaker 182659211
#154

Speaker assy diagram

Audio speaker

Part #182659211

The manufacturer no longer makes this part, and there's no substitute part

Screw (1) 487461412
#157

Speaker assy diagram

Screw (1)

Part #487461412

The manufacturer no longer makes this part, and there's no substitute part

Loudspeaker 182659411
#158

Speaker assy diagram

Loudspeaker

Part #182659411

The manufacturer no longer makes this part, and there's no substitute part

Grille Fr A1226007A
#151

Speaker assy diagram

Grille fr

Part #A1226007A

The manufacturer no longer makes this part, and there's no substitute part

Tweeter Assembly X21762391
#160

Speaker assy diagram

Tweeter assembly

Part #X21762391

The manufacturer no longer makes this part, and there's no substitute part

Jig J2501238A
#NI

Speaker assy diagram

Jig

Part #J2501238A

Replaced by #J2501238A

?
Manufacturer substitution
This part replaces J2501238A. Substitute parts can look different from the original.
$63.27
In Stock
Cord, Spea 176943341
#NI

Speaker assy diagram

Cord, spea

Part #176943341

Replaced by #176943341

?
Manufacturer substitution
This part replaces 176943341. Substitute parts can look different from the original.
$34.83
In Stock
Spkr,20cm 182657711
#153

Speaker assy diagram

Spkr,20cm

Part #182657711

Replaced by #182657711

?
Manufacturer substitution
This part replaces 182657711. Substitute parts can look different from the original.
$87.03
In Stock
