Model # 56200 Official Okuma generator

Here are the diagrams and repair parts for Official Okuma 56200 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

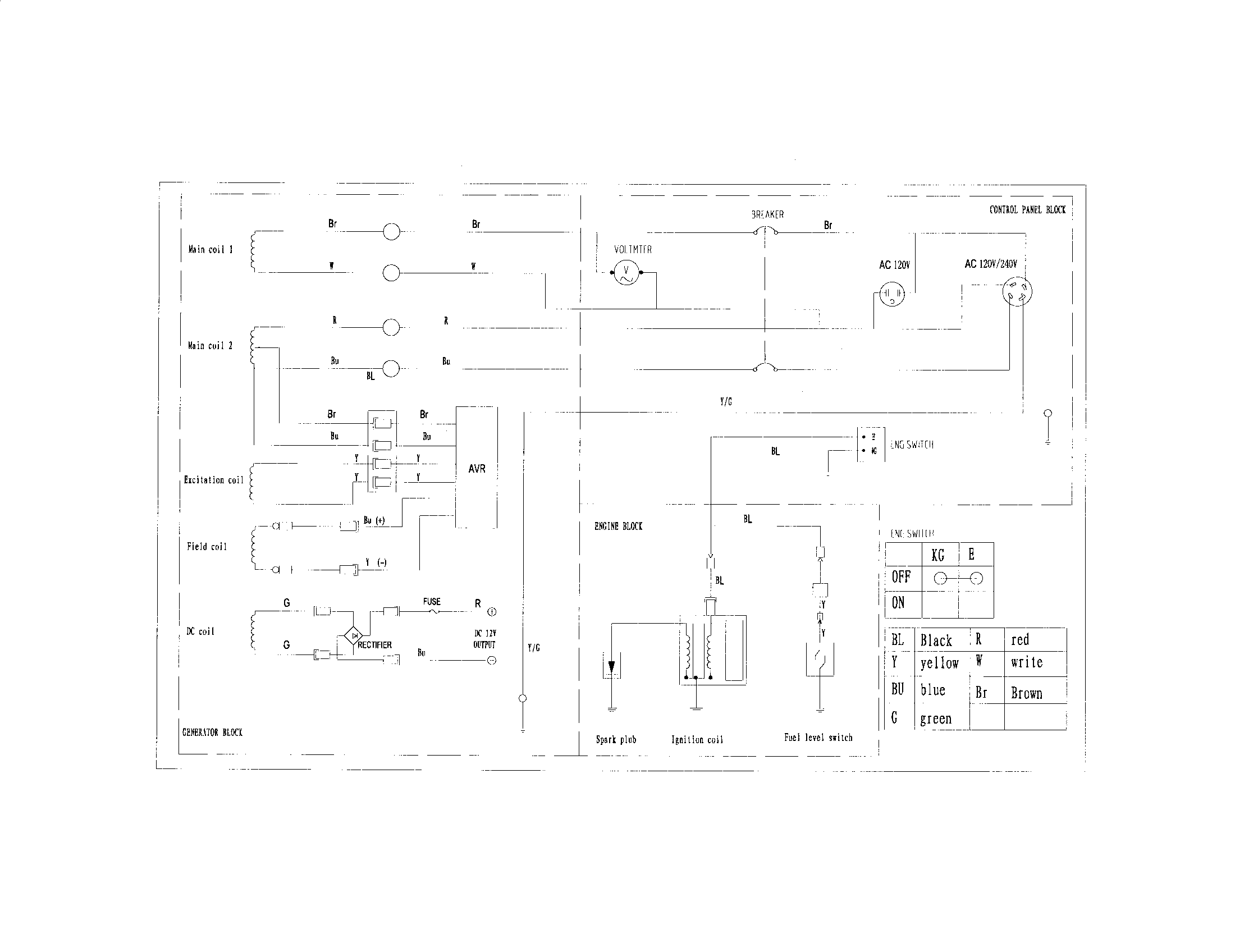

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 67 parts |

#53

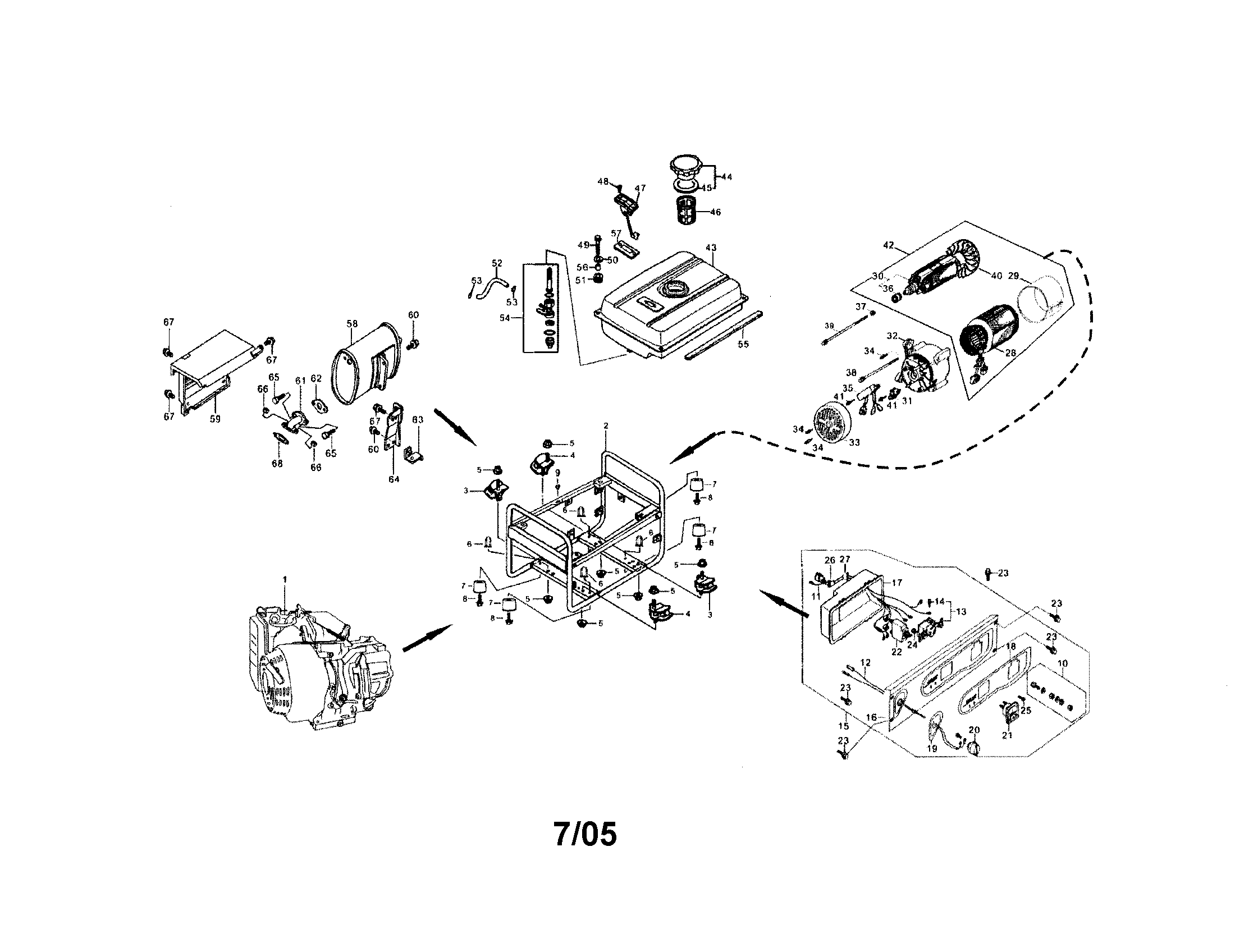

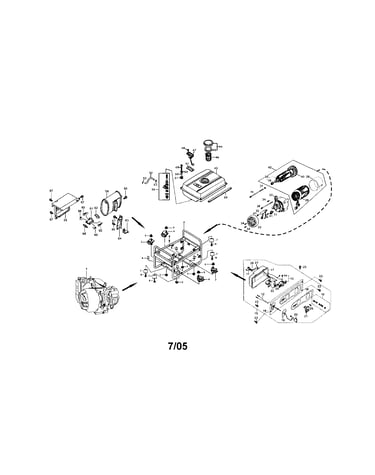

Generator assembly diagram

Tube clip

Part #P54390

The manufacturer no longer makes this part, and there's no substitute part

#52

Generator assembly diagram

Outlet pipe

Part #P54388

The manufacturer no longer makes this part, and there's no substitute part

#54

Generator assembly diagram

Generator fuel shut-off valve

Part #P54392

The manufacturer no longer makes this part, and there's no substitute part

#21

Generator assembly diagram

Voltmeter

Part #P54298

The manufacturer no longer makes this part, and there's no substitute part

#11

Generator assembly diagram

Wire harness

Part #P54268

The manufacturer no longer makes this part, and there's no substitute part

#18

Generator assembly diagram

Switch panel

Part #P54292

The manufacturer no longer makes this part, and there's no substitute part

Generator assembly diagram

Lawn & garden equipment bolt

Part #P54256

The manufacturer no longer makes this part, and there's no substitute part

#14

Generator assembly diagram

Bolt

Part #P54278

The manufacturer no longer makes this part, and there's no substitute part

#16

Generator assembly diagram

Control panel

Part #P54286

The manufacturer no longer makes this part, and there's no substitute part

#33

Generator assembly diagram

Generator en

Part #P54338

The manufacturer no longer makes this part, and there's no substitute part
