Model # 40-560 Official Delta 16" scroll saw

Here are the diagrams and repair parts for Official Delta 40-560 16" scroll saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

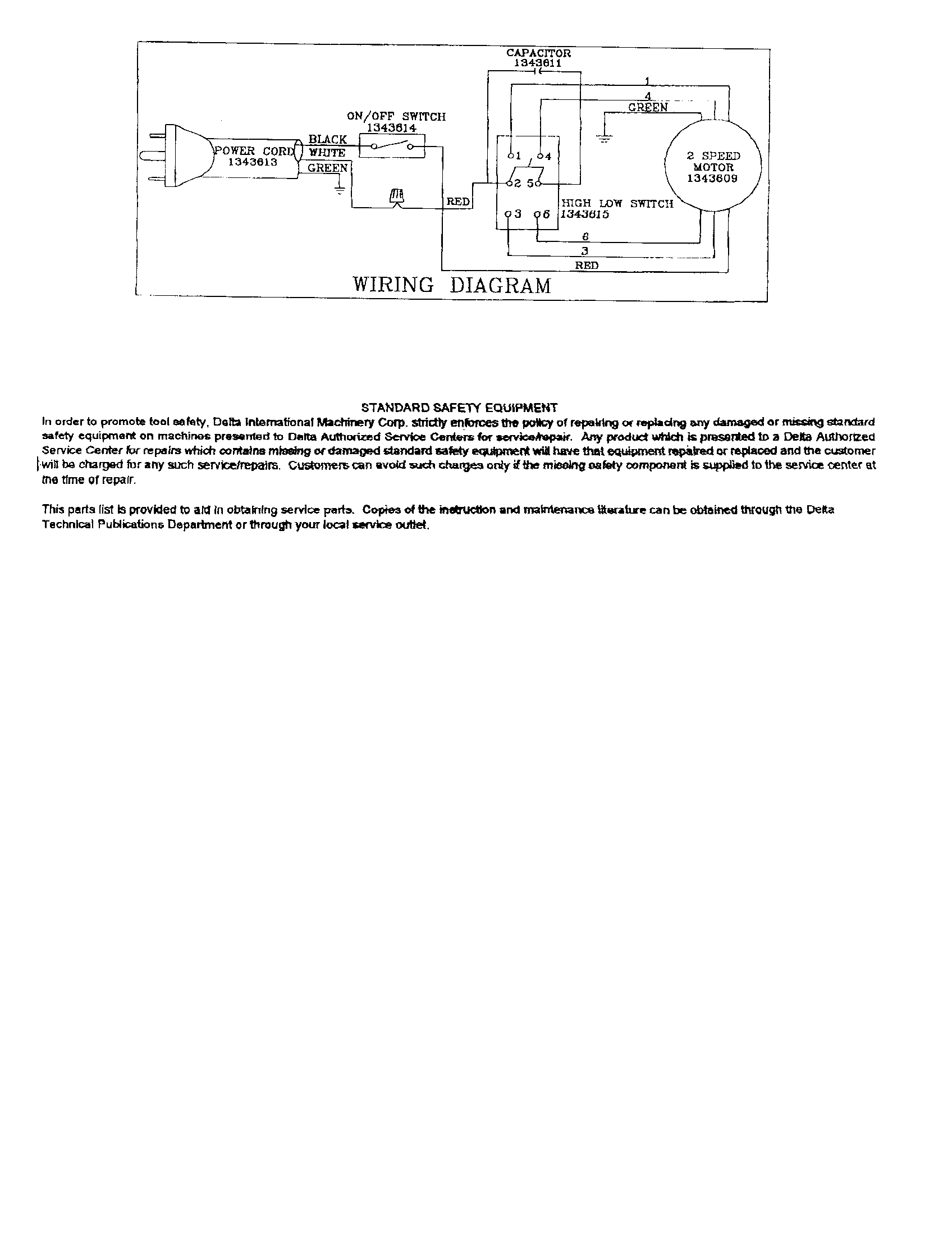

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Screw 1310135
#88

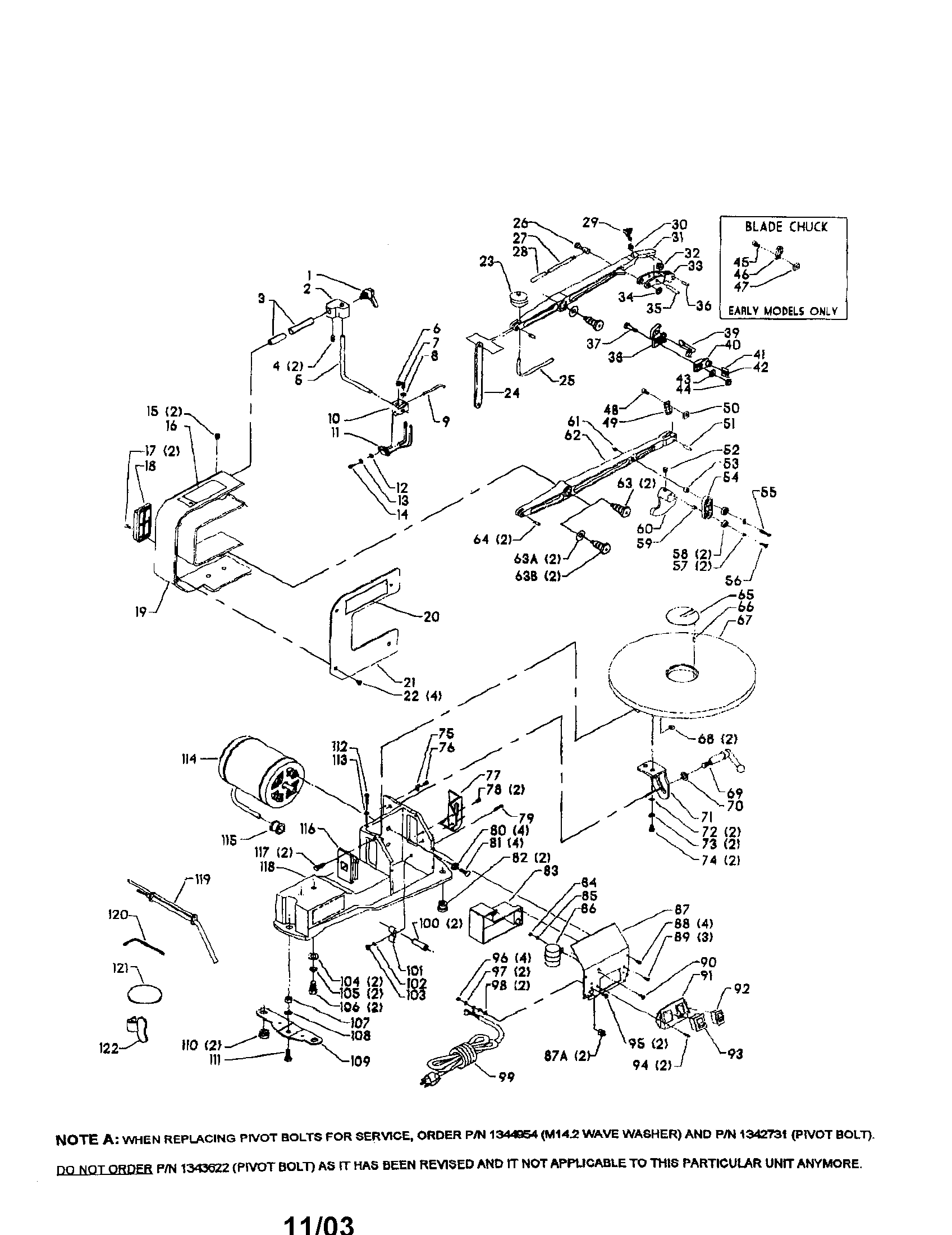

Scroll saw type 2 diagram

Screw

Part #1310135

The manufacturer no longer makes this part, and there's no substitute part

Square Nut 1343659
#61

Scroll saw type 2 diagram

Square nut

Part #1343659

The manufacturer no longer makes this part, and there's no substitute part

Balance 1343639
#60

Scroll saw type 2 diagram

Balance

Part #1343639

The manufacturer no longer makes this part, and there's no substitute part

Switch 1343614
#92

Scroll saw type 2 diagram

Switch

Part #1343614

The manufacturer no longer makes this part, and there's no substitute part

Scroll Saw Blade Screw 1343623
#64

Scroll saw type 2 diagram

Scroll saw blade screw

Part #1343623

The manufacturer no longer makes this part, and there's no substitute part

Scroll Saw Blade Clamp Spring 1346122
#41

Scroll saw type 2 diagram

Scroll saw blade clamp spring

Part #1346122

The manufacturer no longer makes this part, and there's no substitute part

Washer 1243502
Washer

Part #1243502

The manufacturer no longer makes this part, and there's no substitute part

Pad 1346121
#40

Scroll saw type 2 diagram

Pad

Part #1346121

The manufacturer no longer makes this part, and there's no substitute part

Clamp 1346120
#38

Scroll saw type 2 diagram

Clamp

Part #1346120

The manufacturer no longer makes this part, and there's no substitute part

Screw 1340490
#76

Scroll saw type 2 diagram

Screw

Part #1340490

The manufacturer no longer makes this part, and there's no substitute part
