Model # WH14DBL Official Hitachi impact driver

Here are the diagrams and repair parts for Official Hitachi WH14DBL impact driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

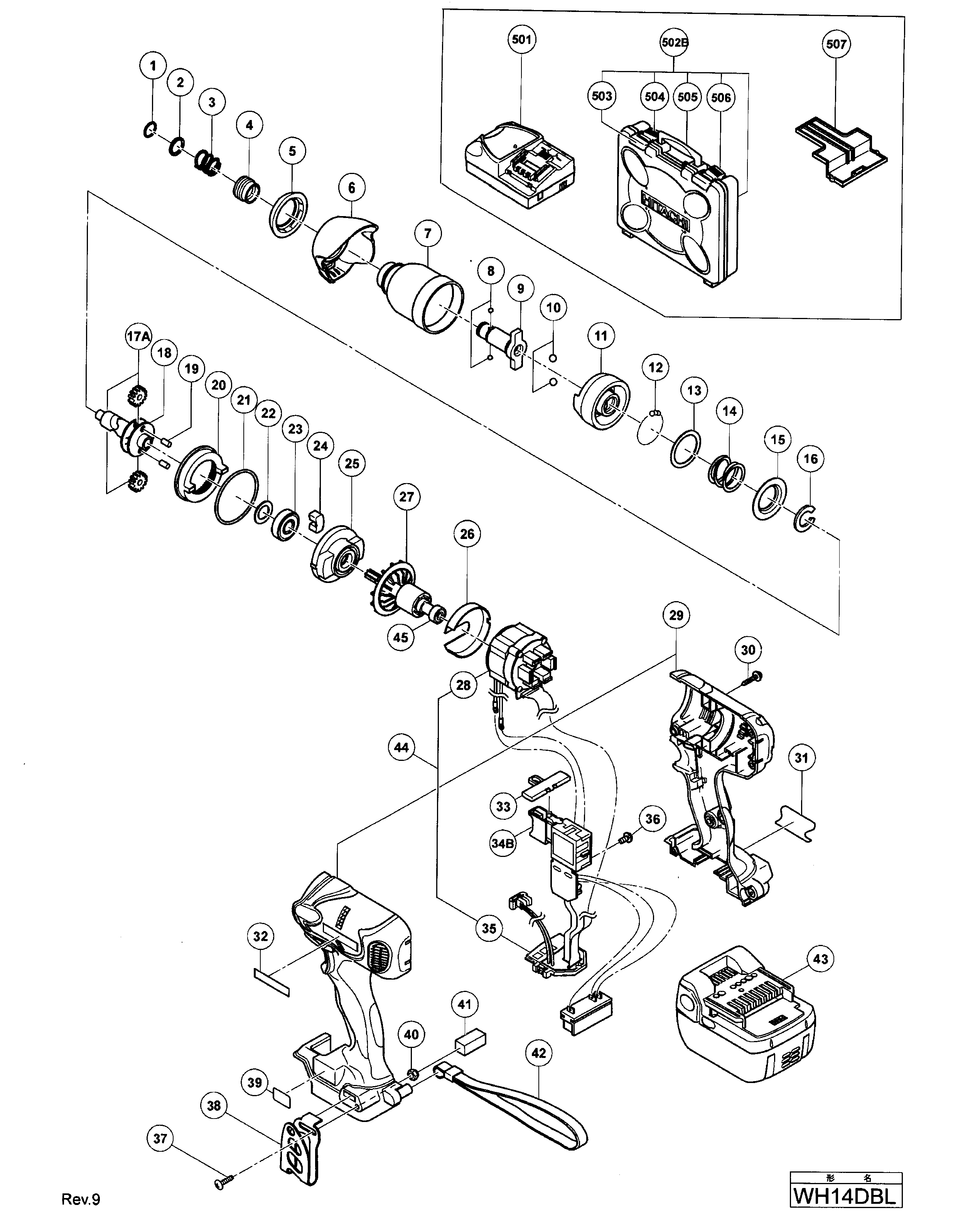

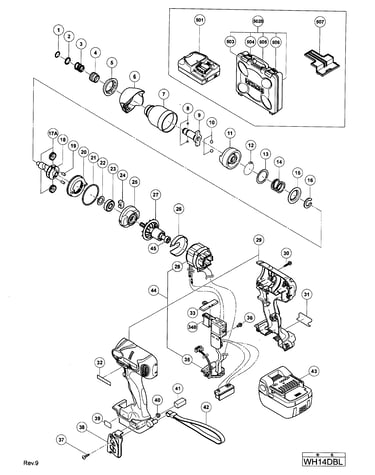

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Cntr Cabl 329719
#35

Wrench diagram

Cntr cabl

Part #329719

The manufacturer no longer makes this part, and there's no substitute part

Hammer 327003
#7

Wrench diagram

Hammer

Part #327003

The manufacturer no longer makes this part, and there's no substitute part

Screw 301653
#30

Wrench diagram

Screw

Part #301653

The manufacturer no longer makes this part, and there's no substitute part

Ball 319535
#8

Wrench diagram

Ball

Part #319535

The manufacturer no longer makes this part, and there's no substitute part

Damper 322143
#24

Wrench diagram

Damper

Part #322143

The manufacturer no longer makes this part, and there's no substitute part

Anvil 329709
#9

Wrench diagram

Anvil

Part #329709

The manufacturer no longer makes this part, and there's no substitute part

Strap 306952
#42

Wrench diagram

Strap

Part #306952

The manufacturer no longer makes this part, and there's no substitute part

Hammer 321660
#14

Wrench diagram

Hammer

Part #321660

The manufacturer no longer makes this part, and there's no substitute part

Guide Spri 321657
#3

Wrench diagram

Guide spri

Part #321657

The manufacturer no longer makes this part, and there's no substitute part

Spindle 321666
#18

Wrench diagram

Spindle

Part #321666

The manufacturer no longer makes this part, and there's no substitute part
